HP V1910 User Manual

215

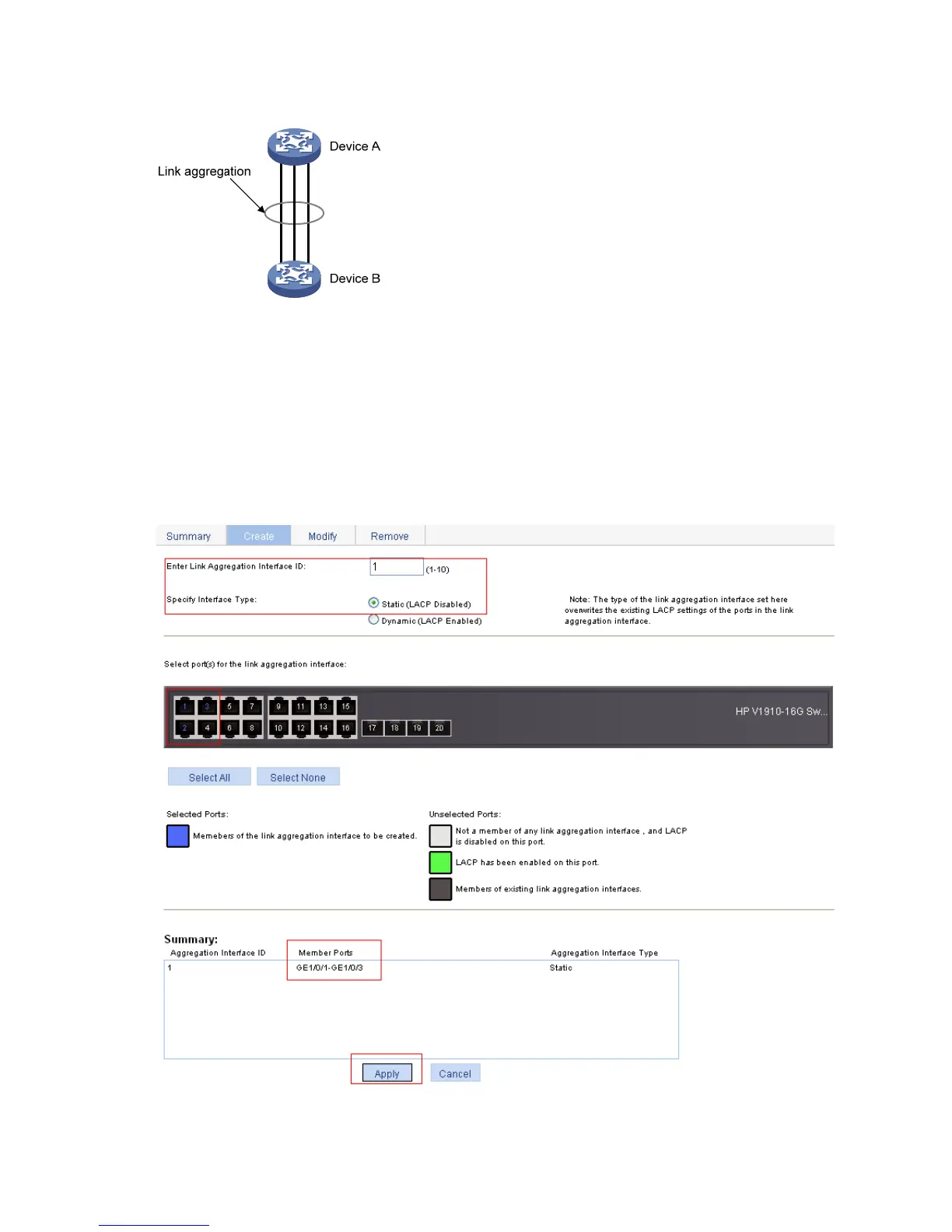

a. Network diagram for static link aggregation configuration
Configuration procedure
You can create a static or dynamic link aggregation group to achieve load balancing.
Table 54 Approach 1: Create a static link aggregation group
# Create static link aggregation group 1.
Select Network  Link Aggregation from the navigation tree, and click the Create tab to enter the page as
shown in b.
b. Create static link aggregation group 1
 Set the link aggregation interface ID to 1.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
