HP V1910 User Manual

216
 Select the Static (LACP Disabled) option as the aggregate interface type.
 Select GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 on the chassis
front panel.
 Click Apply.
Table 55 Approach 2: Create a dynamic link aggregation group
# Create dynamic link aggregation group 1.
Select Network  Link Aggregation from the navigation tree, and click the Create tab to enter the page as
shown in c.

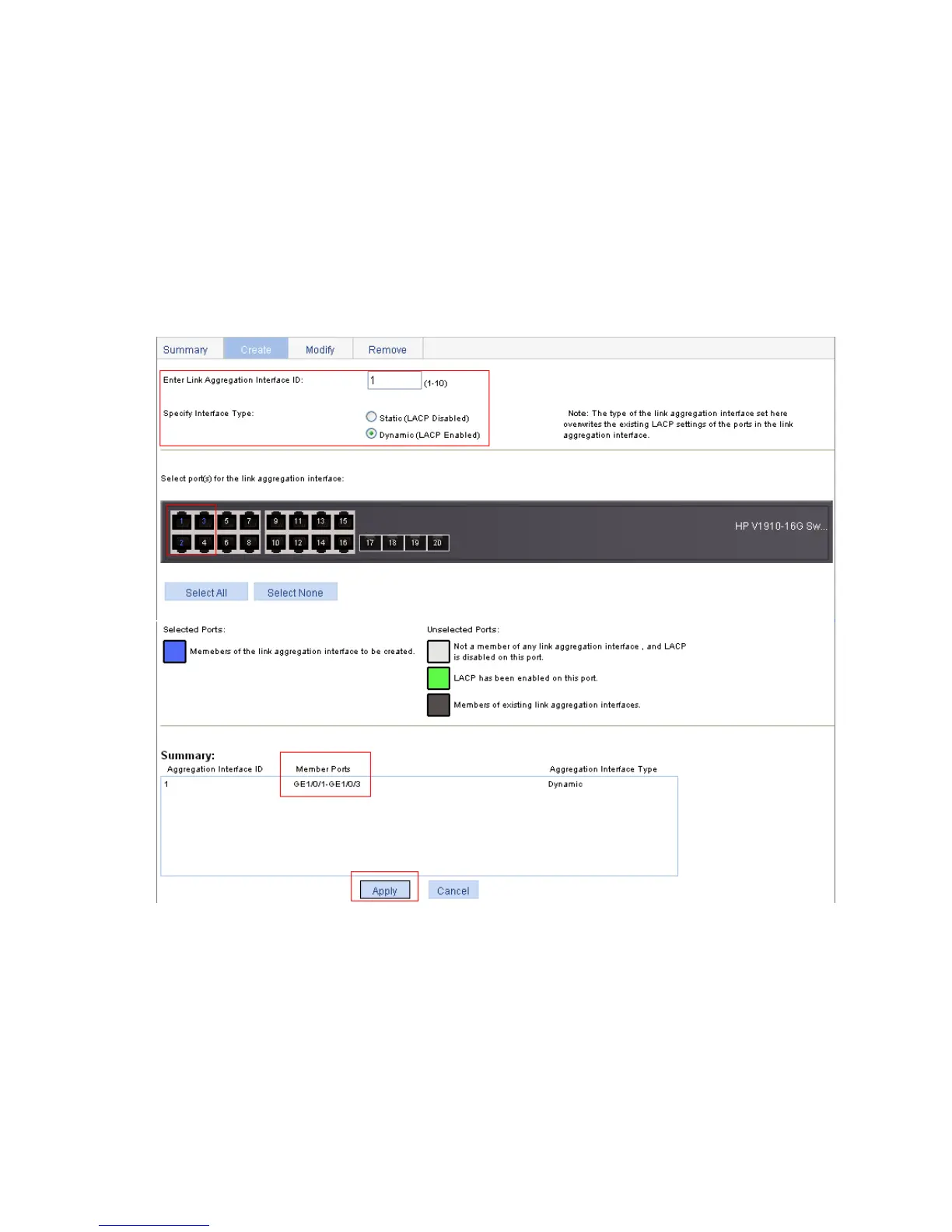

c. Create dynamic link aggregation group 1
 Set the link aggregation interface ID to 1.
 Select the Dynamic (LACP Enabled) option as the aggregate interface type.
 Select GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 on the chassis
front panel.
 Click Apply.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
