242

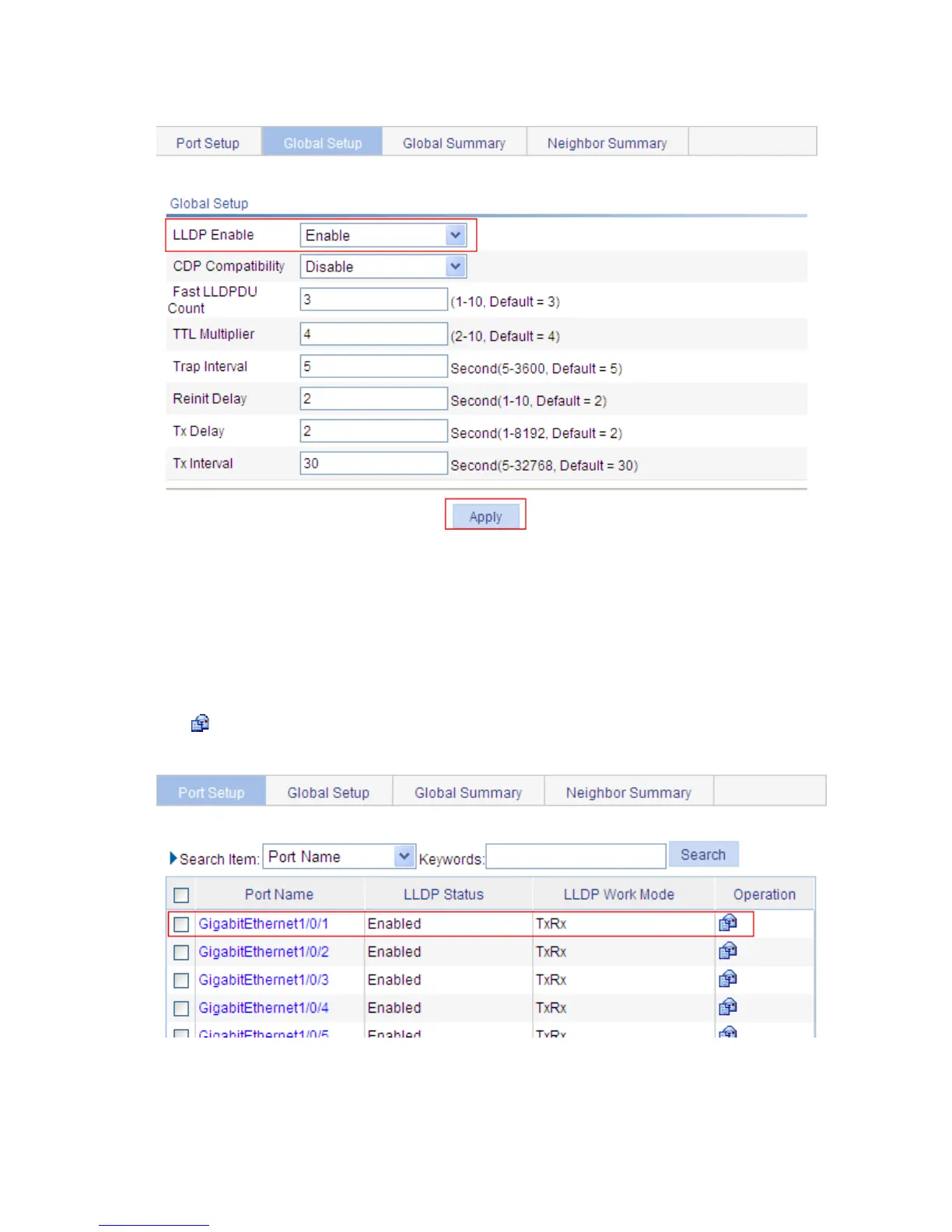

d. The Global Setup tab
Select Enable from the LLDP Enable drop-down list.
Click Apply.
Table 62 Configure Switch B
# Enable LLDP on port GigabitEthernet 1/0/1. (Optional. By default, LLDP is enabled on Ethernet ports.)
# Set the LLDP operating mode to Tx on GigabitEthernet 1/0/1.
Select Network LLDP from the navigation tree to enter the Port Setup tab, as shown in e. Click the
icon for port GigabitEthernet 1/0/1. The page shown in f is displayed.
e. The Port Setup tab
