HP V1910 User Manual

246

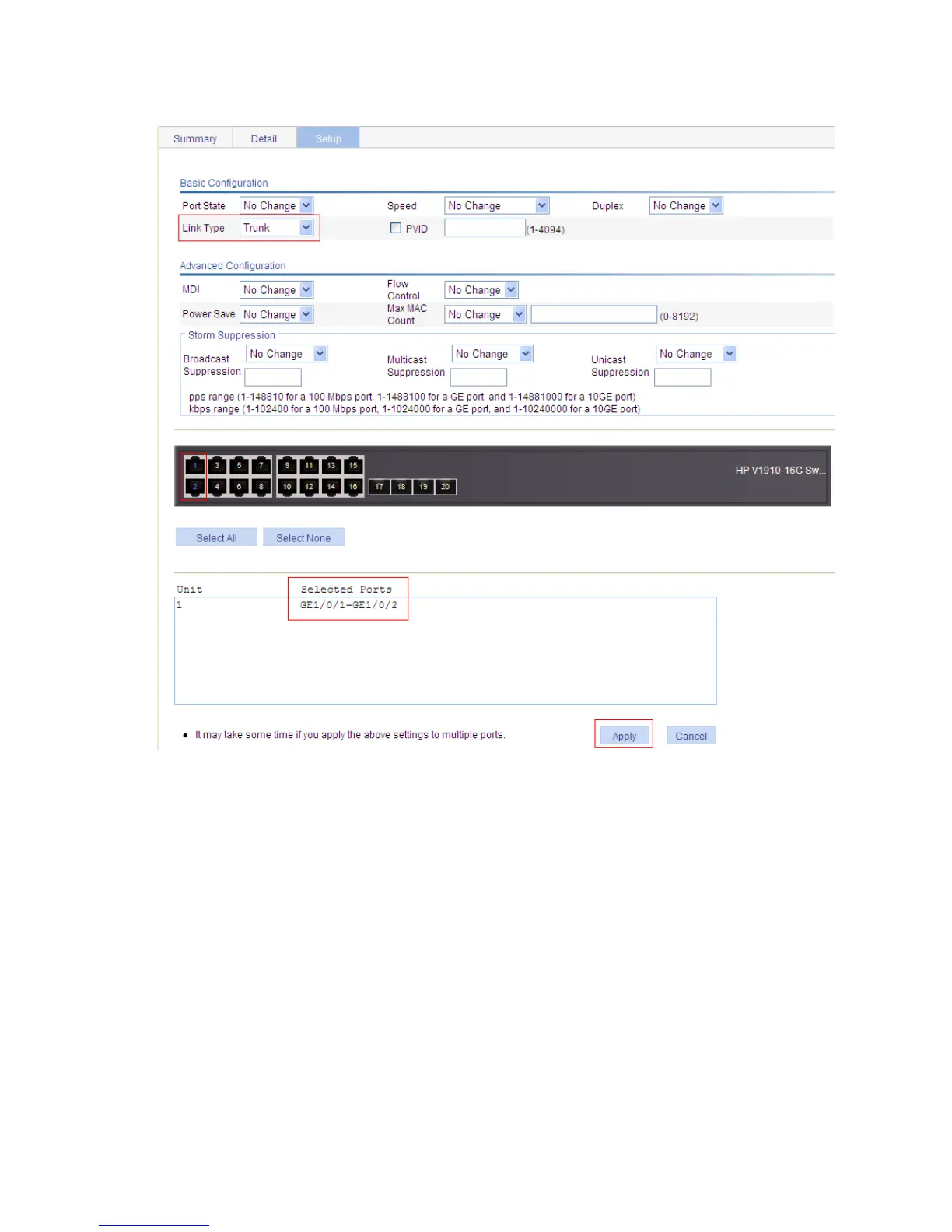

b. The page for configuring ports
 Select Trunk in the Link Type drop-down list.
 Select port GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 on the chassis front panel.
 Click Apply.
# Configure the voice VLAN function on the two ports.
 Select Network  Voice VLAN from the navigation bar and click the Port Setup tab to enter the page
shown in c.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
