HP V1910 - Page 348

336
b.

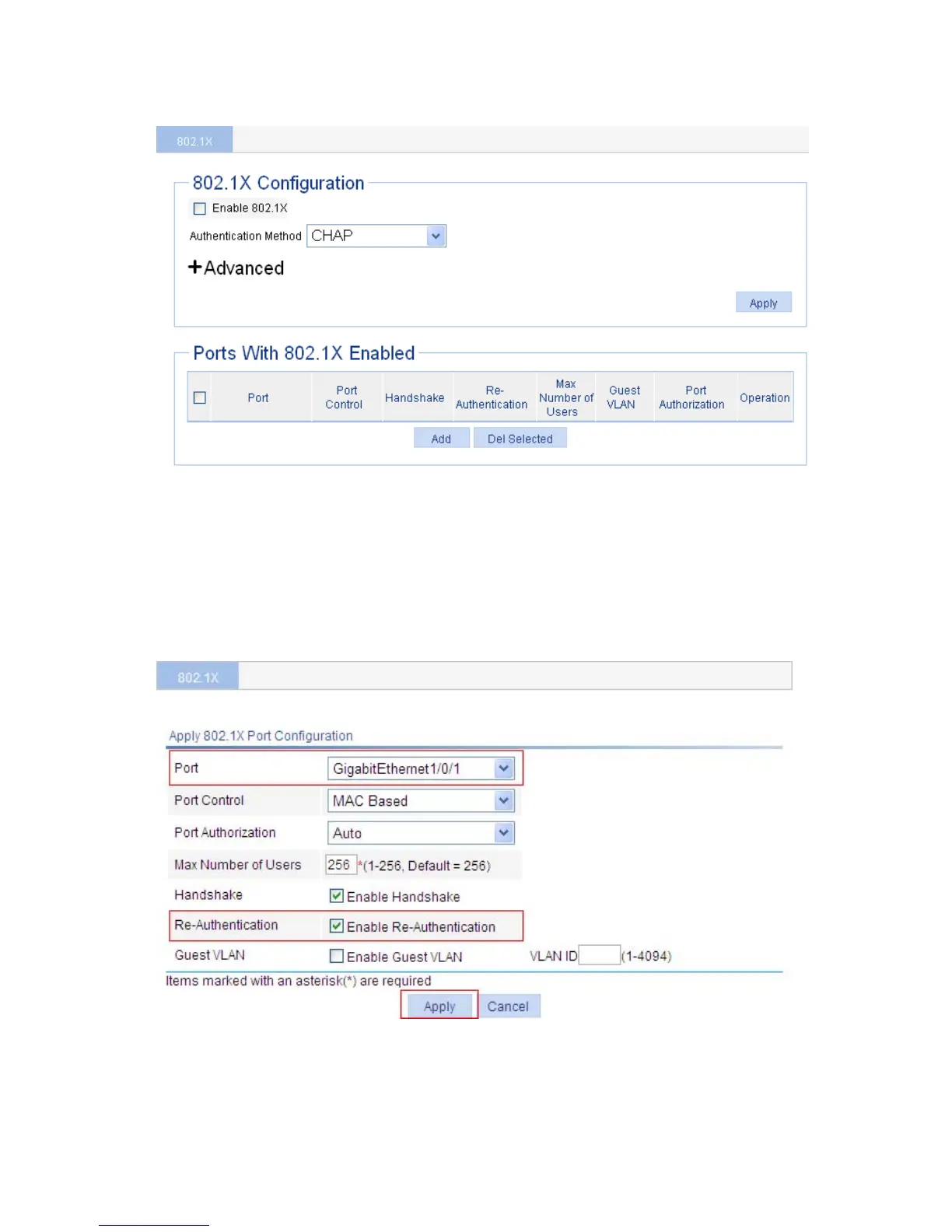

Global 802.1X configuration
 Select the check box before Enable 802.1X.
 Select the authentication method as CHAP.
 Click Apply to finish the operation.
# Enable and configure 802.1X on port GigabitEthernet 1/0/1.
 In the Ports With 802.1X Enabled area, click Add.
c. 802.1X configuration of GigabitEthernet 1/0/1
 Select port GigabitEthernet1/0/1 from the port drop-down list.
 Select the checkbox before Enable Re-Authentication.
 Click Apply to finish the operation.
