HP V1910 User Manual

455
i.

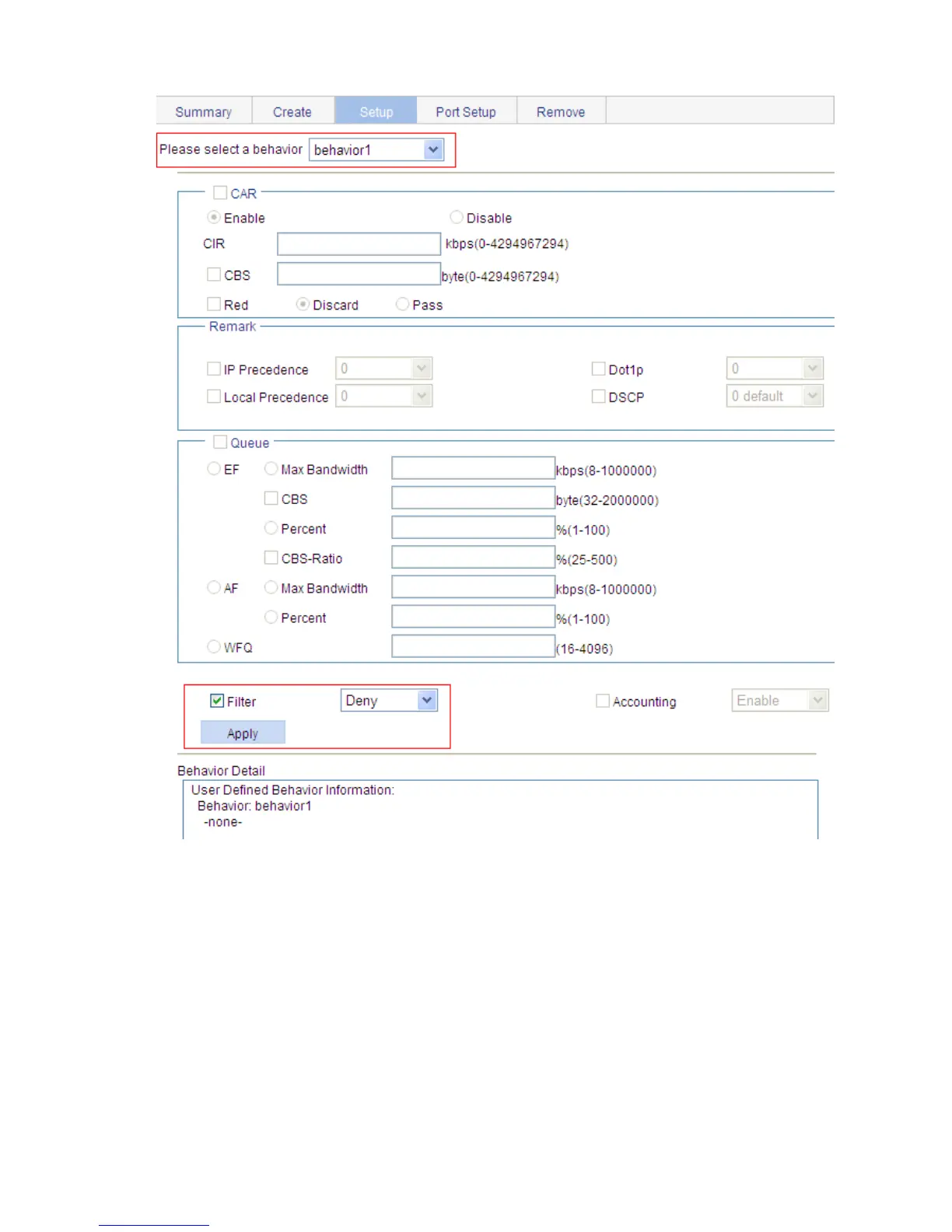

Configure actions for the behavior
 Select behavior1 in the drop-down list.
 Select the Filter option, and then select Deny in the following drop-down list.
 Click Apply. A configuration progress dialog box appears.
 After the configuration is complete, click Close on the dialog box.
# Create a policy.
 Select QoS  QoS Policy from the navigation tree and click the Create tab.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
