HP V1910 User Manual

456
j.

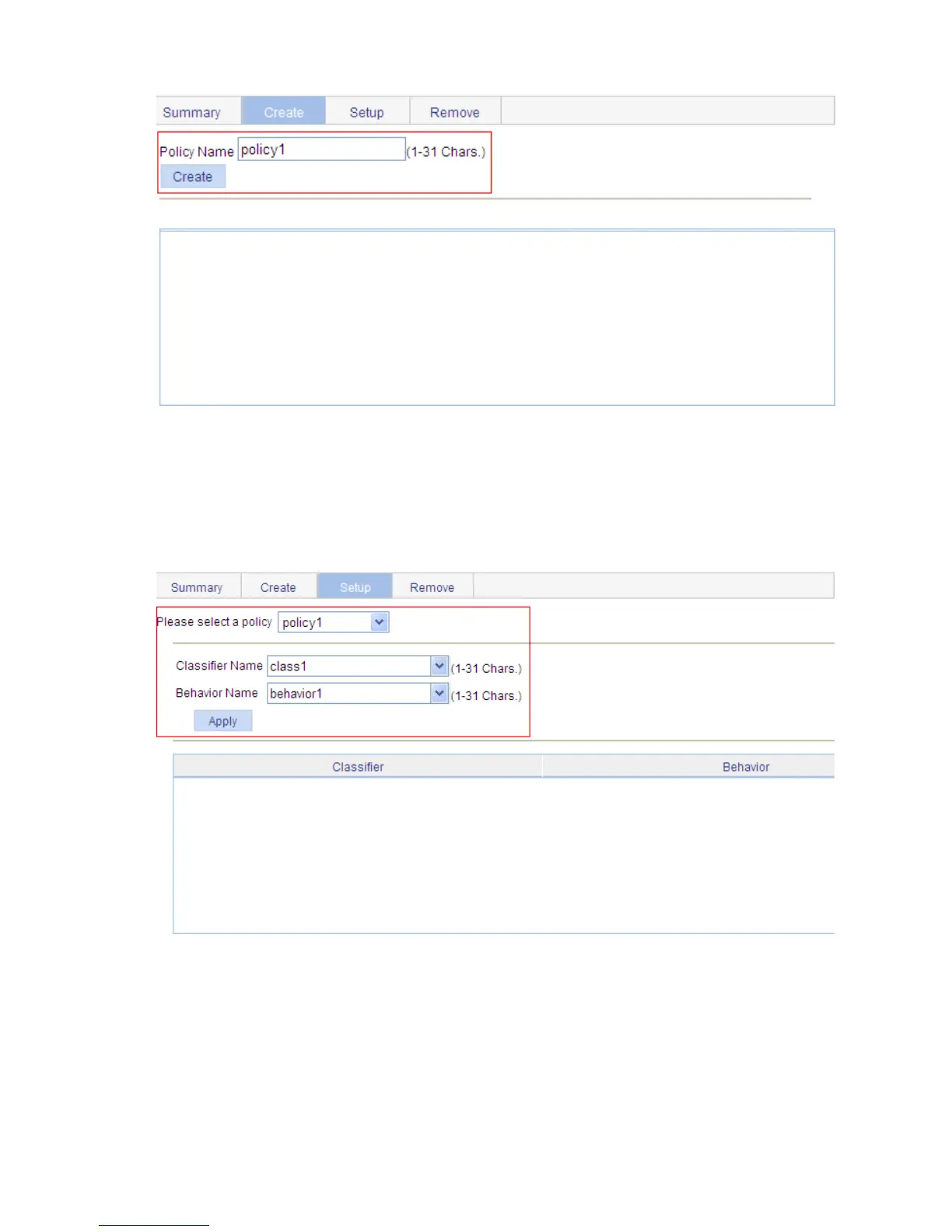

Create a policy
 Type the policy name policy1.
 Click Create.
# Configure classifier-behavior associations for the policy.
 Click Setup.
k. Configure classifier-behavior associations for the policy
 Select policy1.
 Select class1 in the Classifier Name drop-down list.
 Select behavior1 in the Behavior Name drop-down list.
 Click Apply.
# Apply the QoS policy in the inbound direction of GigabitEthernet 1/0/1.
 Select QoS  Port Policy from the navigation tree and click the Setup tab.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
