HP V1910 User Manual

457
l.

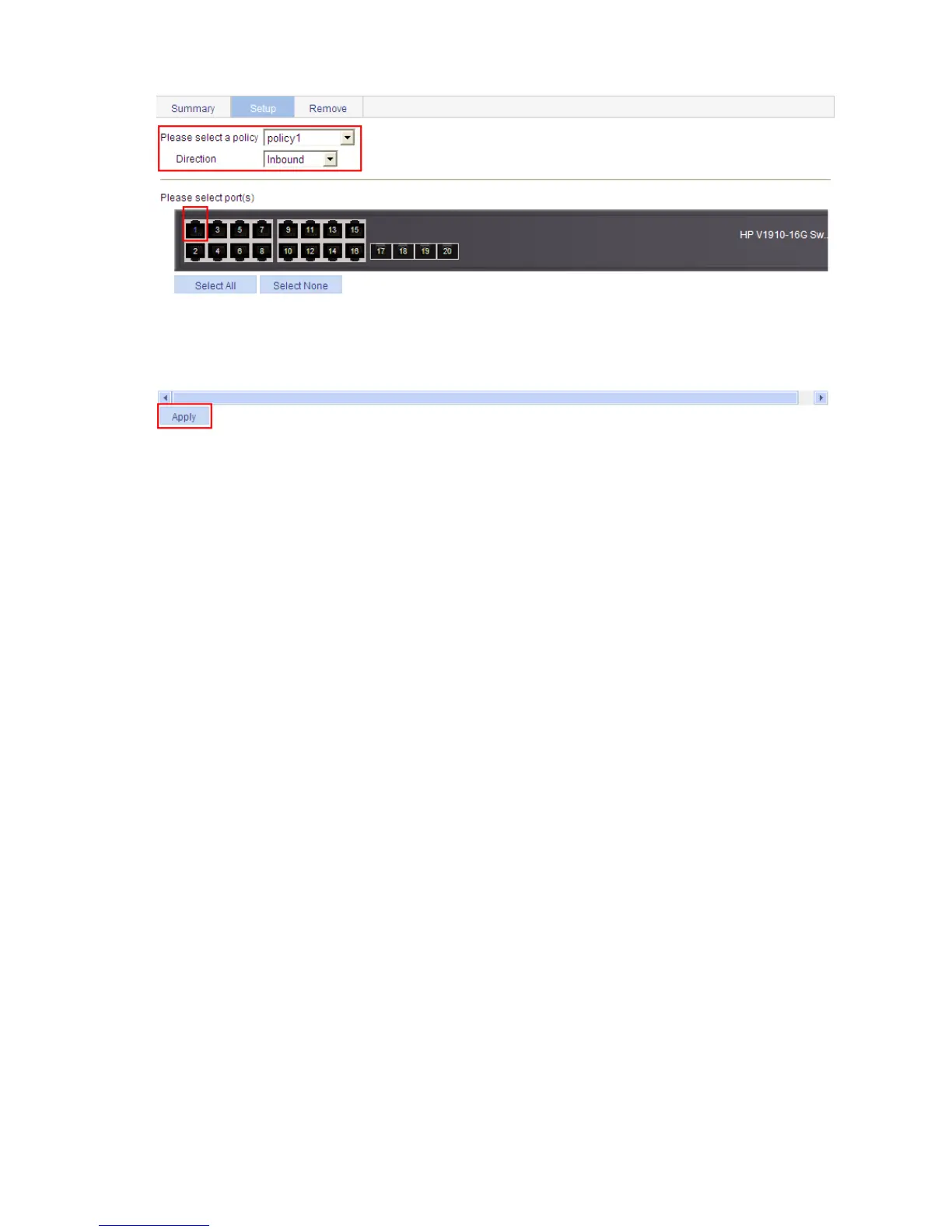

Apply the QoS policy in the inbound direction of GigabitEthernet 1/0/1
 Select policy1 in the Please select a policy drop-down list.
 Select Inbound in the Direction drop-down list.
 Select port GigabitEthernet 1/0/1.
 Click Apply. A configuration progress dialog box appears.
 After the configuration is complete, click Close on the dialog box.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
