HP V1910 User Manual

464
b.

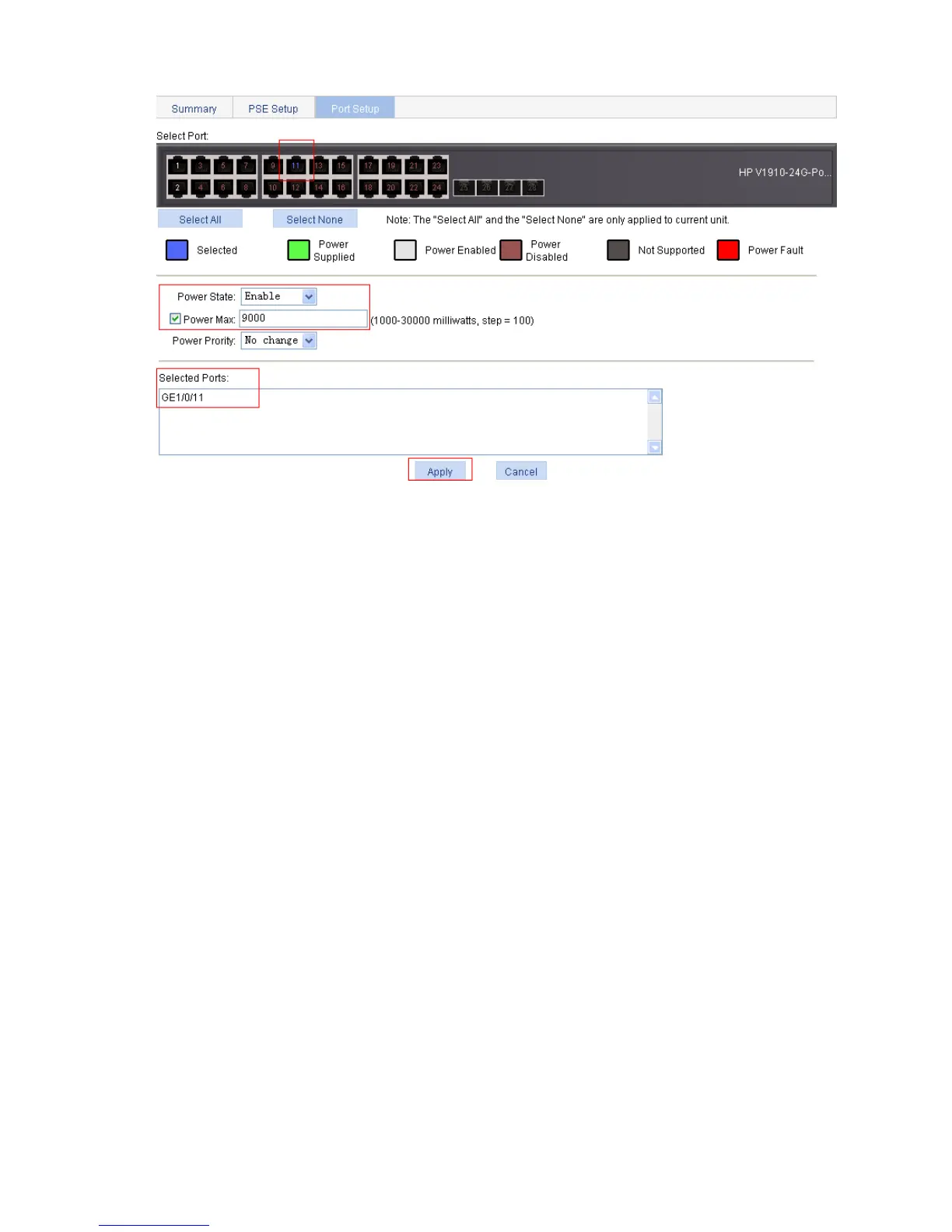

Configure the PoE port supplying power to AP
 Click to select port GigabitEthernet 1/0/11 from the chassis front panel.
 Select Enable from the Power State drop-down list.
 Select the check box before Power Max and type 9000.
 Click Apply.
After the configuration takes effect, the IP telephones and AP are powered and can work properly.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
