handle of the disk unit towards you. Then push the disk unit completely
into the slot and rotate the handle towards the disk unit to latch it into the
slot.
Attention: If you install the device when the light is not flashing, data may
be lost, the disk unit may be damaged, or the backplane may be damaged.
Note: The light above the device location will go off and remain off for a
few seconds when the device contacts the backplane. Then it should
go on and remain on.
g. Replace the covers that were removed during this procedure and return to
the procedure that sent you here.
This ends the procedure.
Dedicated Maintenance – Removal and Installation
1. To remove a disk unit using dedicated maintenance perform the following:
a. Power off the system (see “Powering On and Powering Off the System and
Logical Partitions” on page 922).
b. Disconnect the power cord.

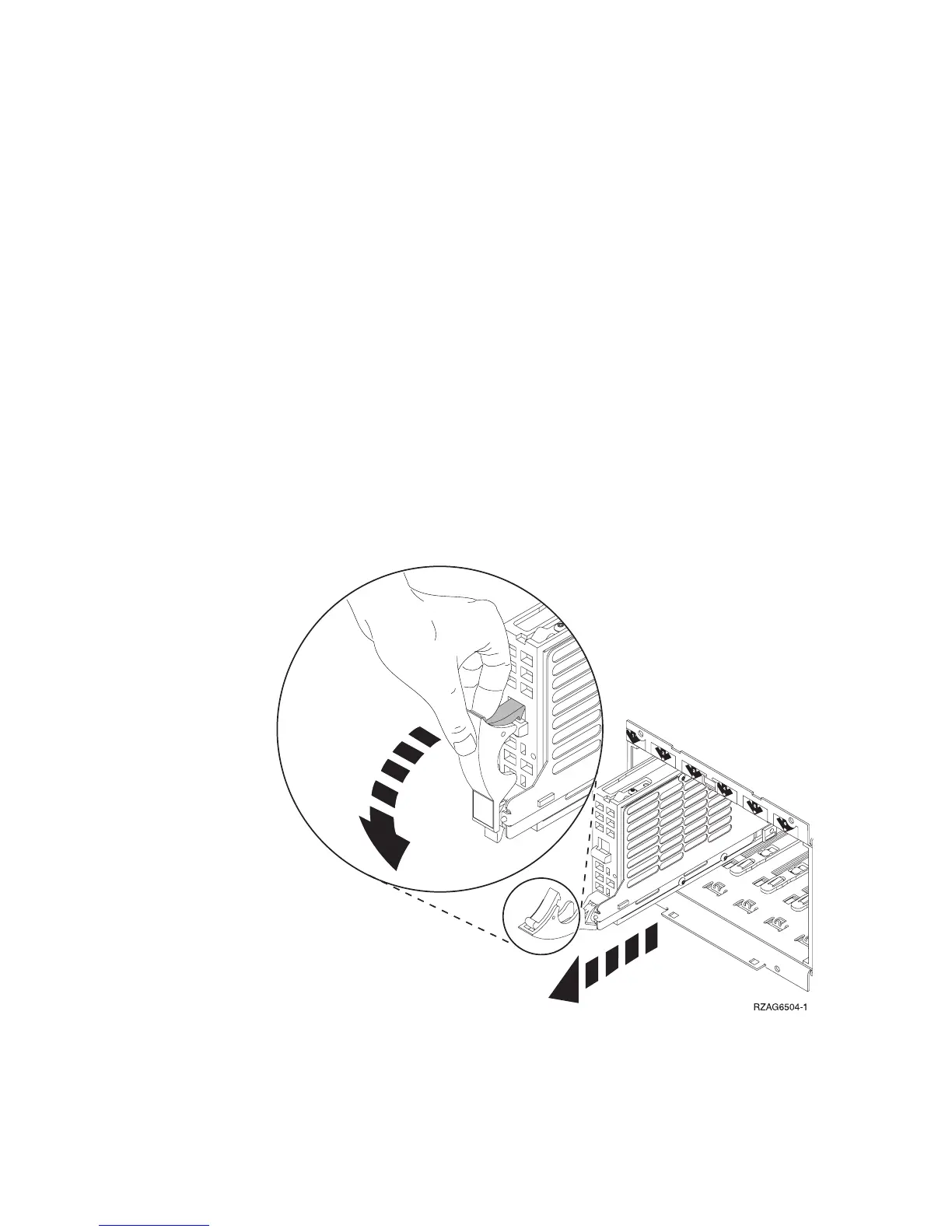

c. To remove the disk unit, pinch the two surfaces of the latching mechanism
together and pull the handle towards you to release the disk unit from the
slot.
d. Remove the unit.
2. Are you finished with the repair?
No Yes
↓ Replace the covers that were removed during this procedure and return
to the procedure that sent you here.
This ends the procedure.
Remove and Replace Procedures
700
iSeries Model 830, 840, SB2, and SB3 Problem Analysis, Repair and Parts V5R1
