idp Smart-30 - Case Assembly

2014-03-24
175

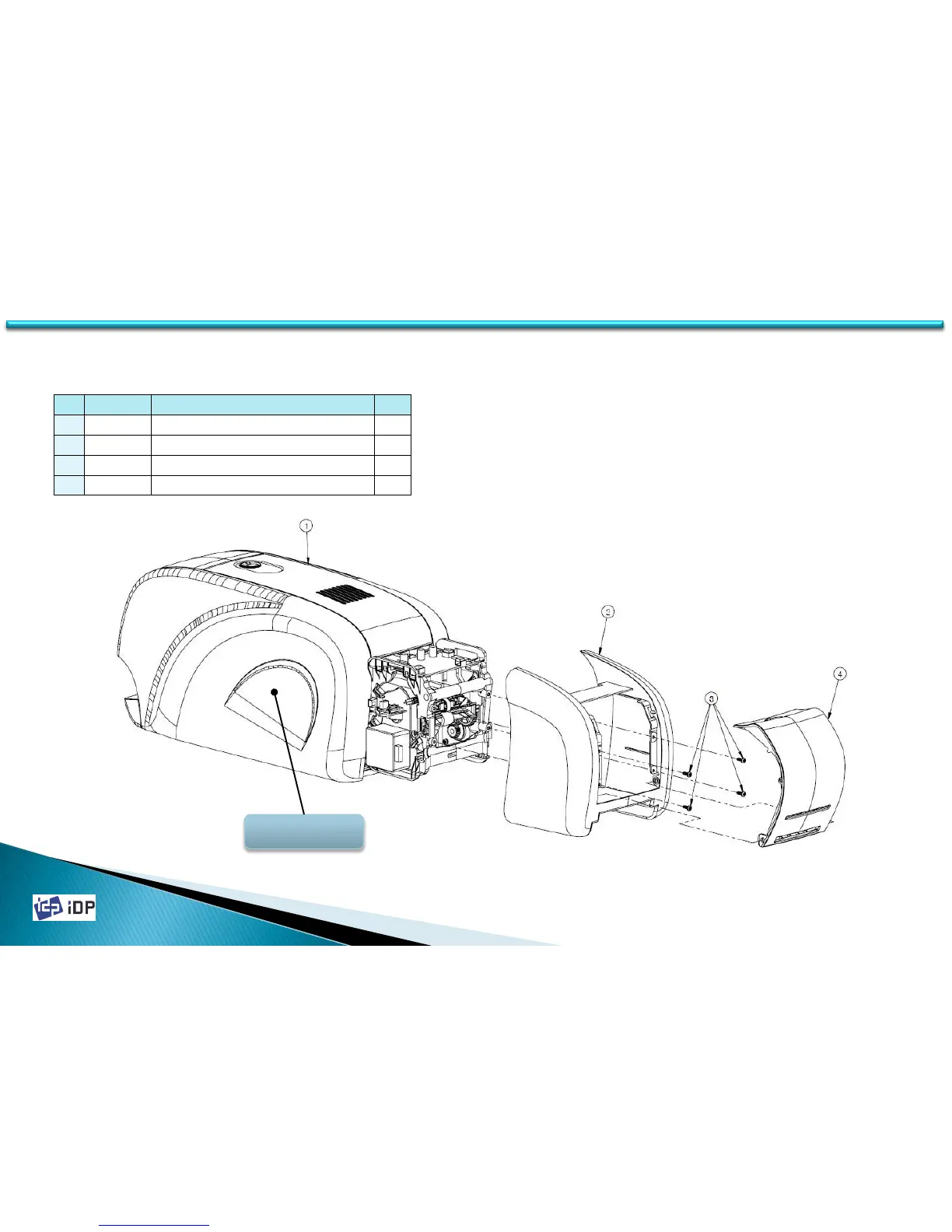

1. After assembling Flipper Unit, assemble
Cover Side Left/Right (See 3.1.1 Side
Cover Right / Left)
2. Push Cover Flipper Main from the behind
of Printer.
3. Tighten 4 Screws on the back side of
Cover Flipper Main and assemble Cover
Flipper Top.
 CASE Assembly
C.2 Flipper Option
175
No. IA. CODE NAME Q'TY
1
640254 ASSY S3,SMART-30_1.0_STD_MD
1
2
611175 COVER S3,FLIPPER_MAIN
1
3
610887 SCREW SS,M3X8,S
4
4
611176 COVER S3,FLIPPER_TOP
1
Side Cover
