1. For assembling Encoder Option,
assemble USB HUB to Printer Min Board.
2. Assemble the Bolt for supporting USB
Hub Board on Printer Main Board.
3. After removing jumpers on the USB
connector on Printer Main Board,
assemble USB HUB to the connector on
Printer Main Board and tighten a screw.
There are two jumpers in the connector
on Main Board, these jumpers must be
removed when the USB HUB is installed.
But, when the USB HUB is removed, these
jumpers must be reinstalled in the same
pins which the jumpers were connected.

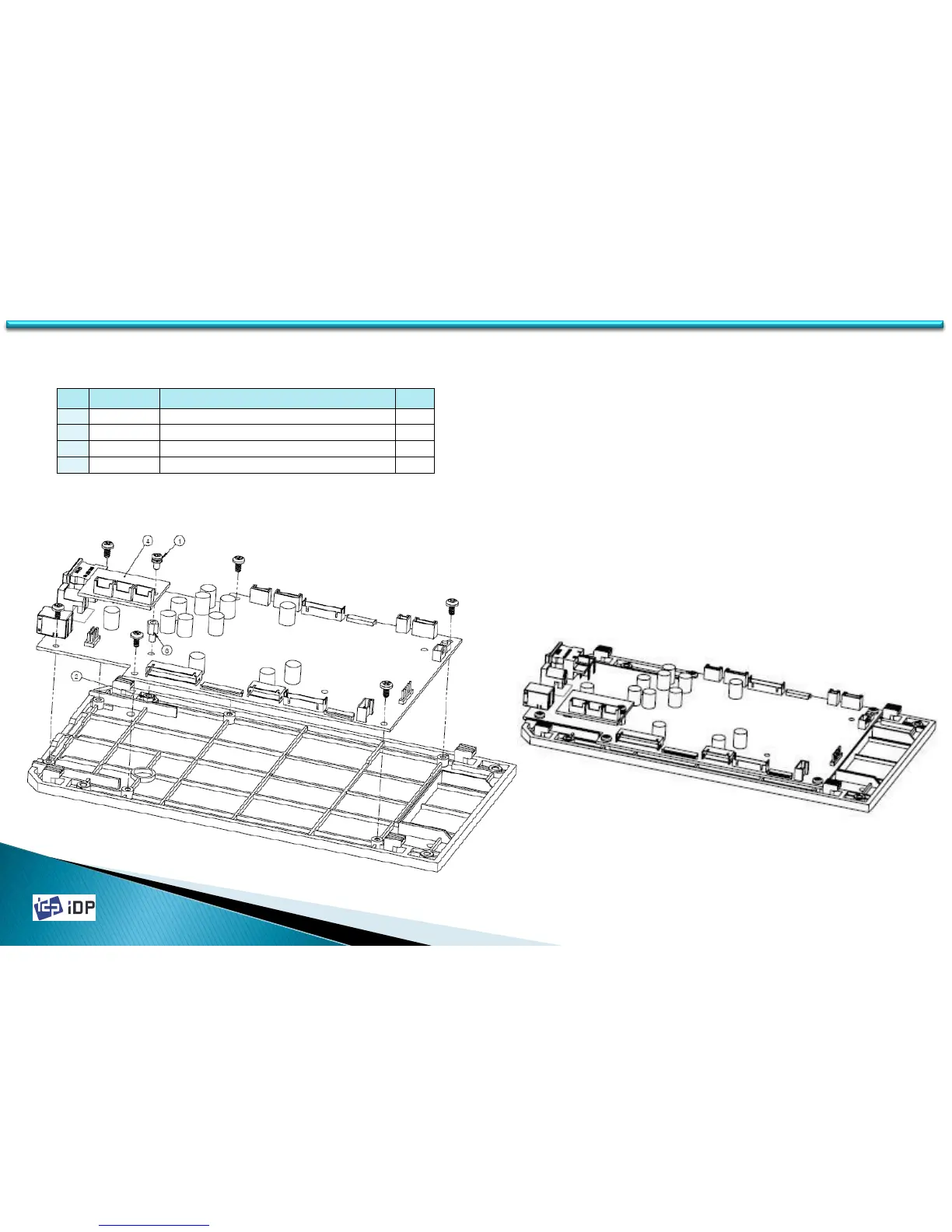

C.5 USB HUB ASSY
No. IA. CODE NAME Q'TY
1 610355 SCREW SS,M3X6,SAM 1
2 610375 NUT SS,M3X2.4 1
3
610430 SCREW SS,M3X6,HEX
1
4
630050 USB HUB BD,SMART,0.1
1
184
USB HUB ASSY Assembly
