idp Smart-30 - Drive Unit; Main Drive

2014-03-24
41

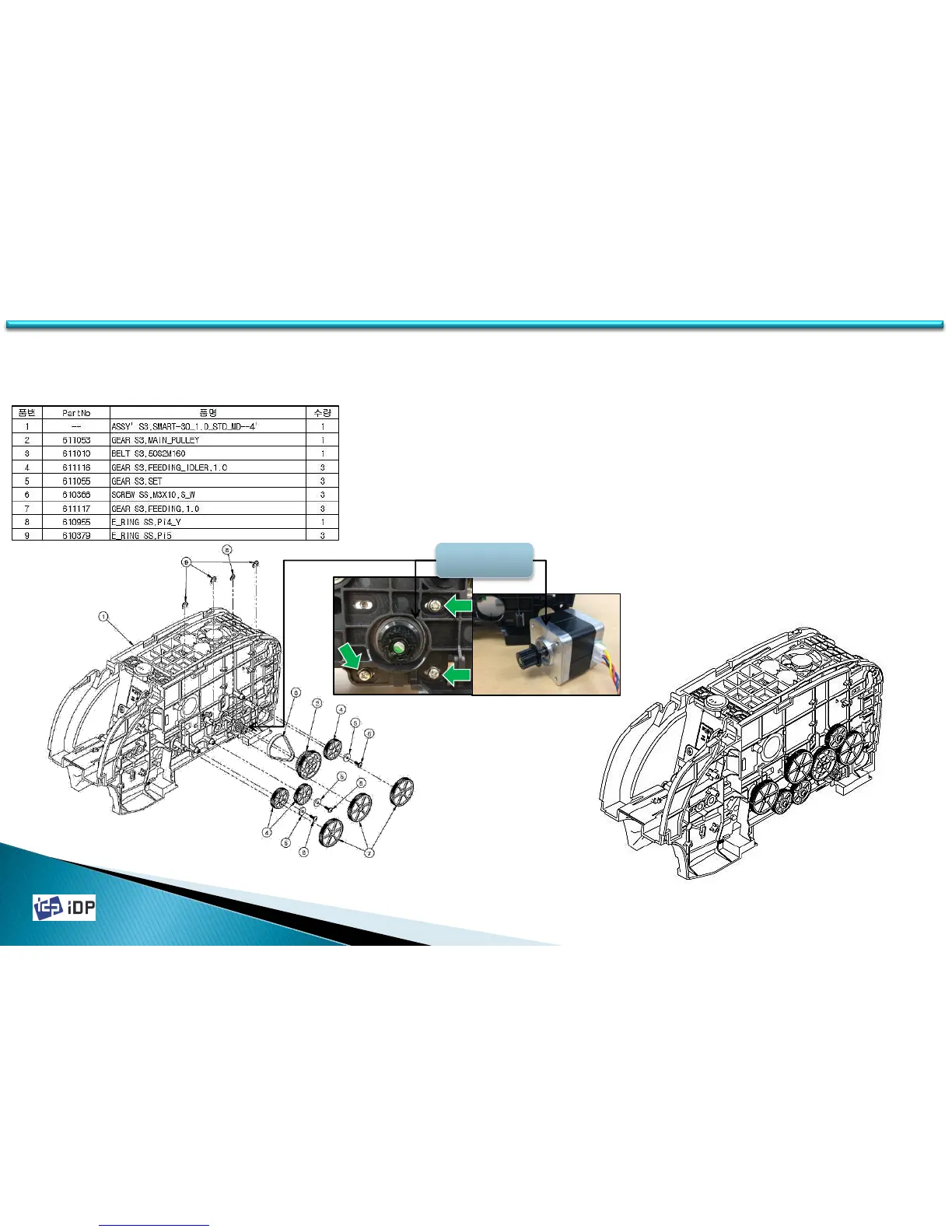

1. Main Drive consists of Step Motor and Time
Belt.
2. Disassemble Pulley(2), Time Belt(3) and
GEAR(7), and then can loosen 3 screws for
fixing Step Motor.
3. Step Motor is located inside of Frame.
4. When assemble Step Motor, adjusting the
tension by assembling Pulley(2) and Time
Belt(3) together and tighten 3 screws.
3.4 Drive Unit
3.4.1 Main Drive
3.4 Drive Unit
Main Drive
Motor
