idp Smart-30 - Main PCBs and Drive Unit Access

2014-03-24
38

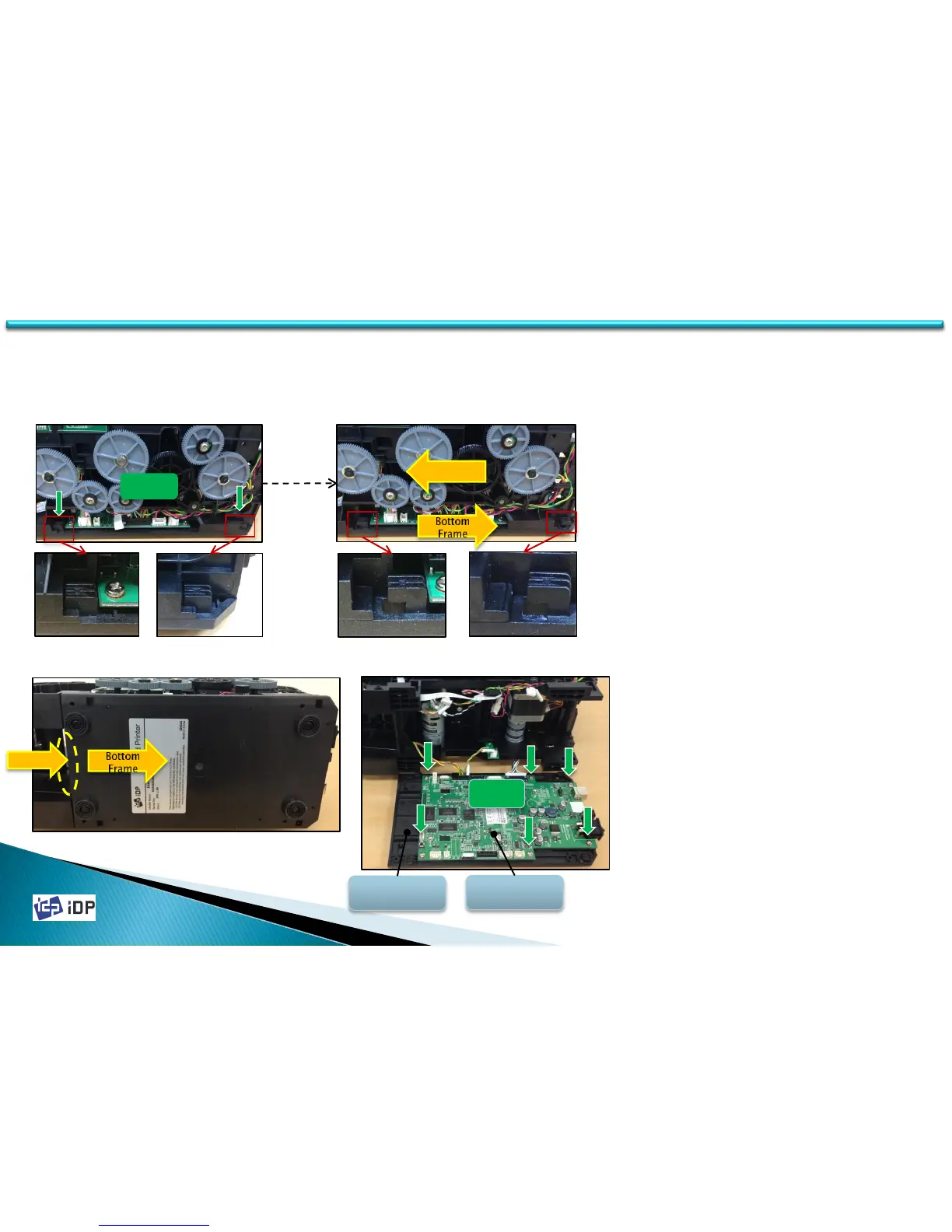

1. Main Board is fixed on Bottom Frame.
2. Bottom Frame is fixed on Main Frame by
4 Hooks and 4 Screws, but 4 screws are
loosened when Side Cover was
disassembled. (Refer to 3.1.1).
3. 2 Hooks are at same position on each
side (Lift and Right) on Bottom Frame.
4. To unlock Hooke, push Main Frame to
the right and push Bottom Frame to the
left.
5. More easy way to unlock Hooks, hold
Main Frame and push Bottom Frame to
the back side.
6. Main Board is fixed on Main Frame by 6
Screws.
3.3 Main PCBs
3.3.1 Main Board
M / B
Base Plate
Screw
3.3 Main PCBs
Hook
Push
Main
Frame
