idp Smart-30 - Contact Encoder Option Assembly

2014-03-24
177
1. Disassemble SIDE and REAR COVER of Printer.
2. Assemble No.4(BOTTOM SS,IC_SET) on SMART-30.
3. Insert cables as Fig.1.
4. Push Contact Encoder to stopper and tighten
screws as Fig.2.
 CONTACT ENCODER Option Assembly
C.3 IC Option
No. IA. CODE NAME Q'TY
1
640254 ASSY S3,SMART-30,10.0_STD_MD
1
2
640269 ASSY S3,IC_OPTION_GEMPLUS
1
3
610366 SCREW SS,M3X10,S_W
4
4
610481 BOTTOM SS,IC_SET
1
177

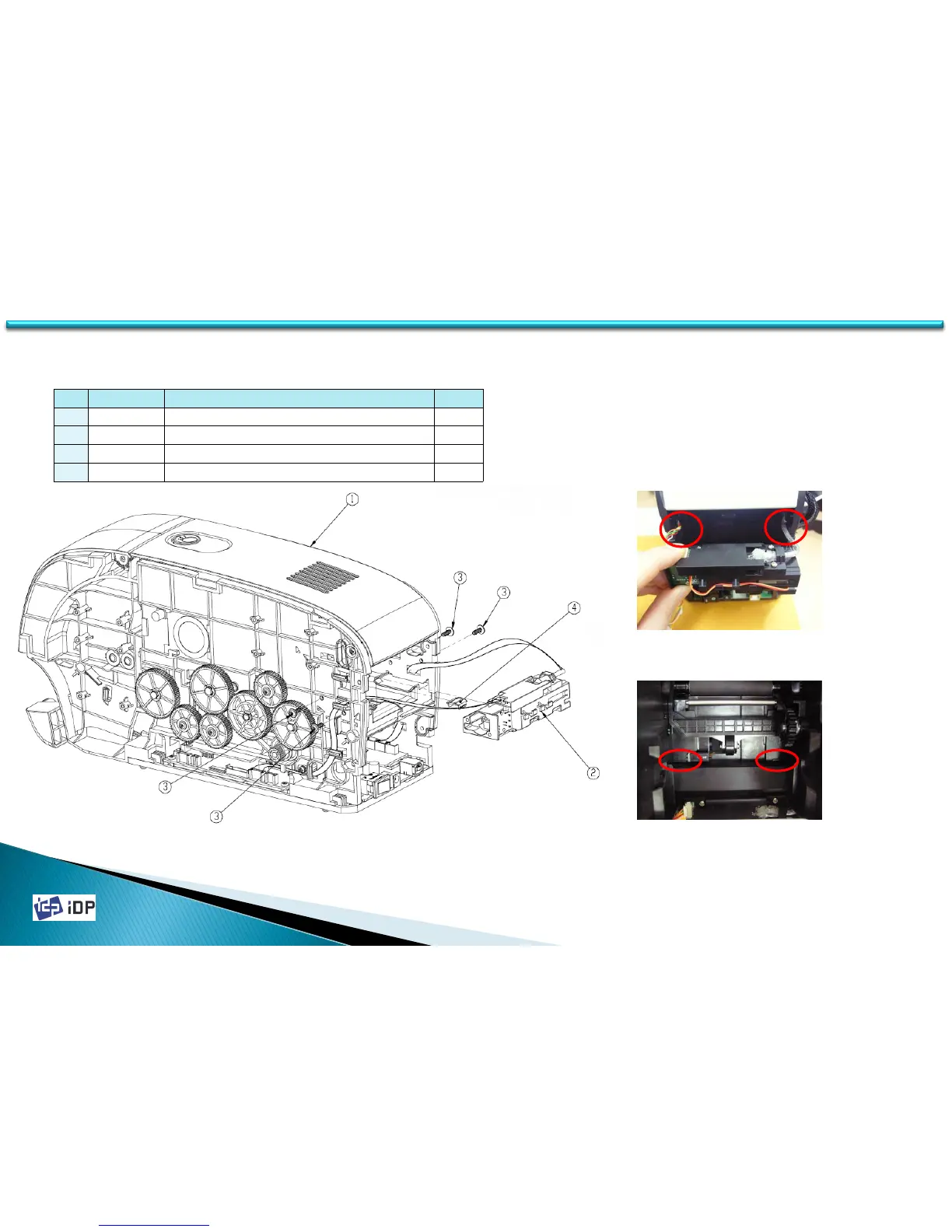

Fig.1
Fig.2
