idp Smart-30 - Ground Wiring

2014-03-24
153
B.2 Main Parts Expanded View
B.2.16.1 Ground Wiring
153

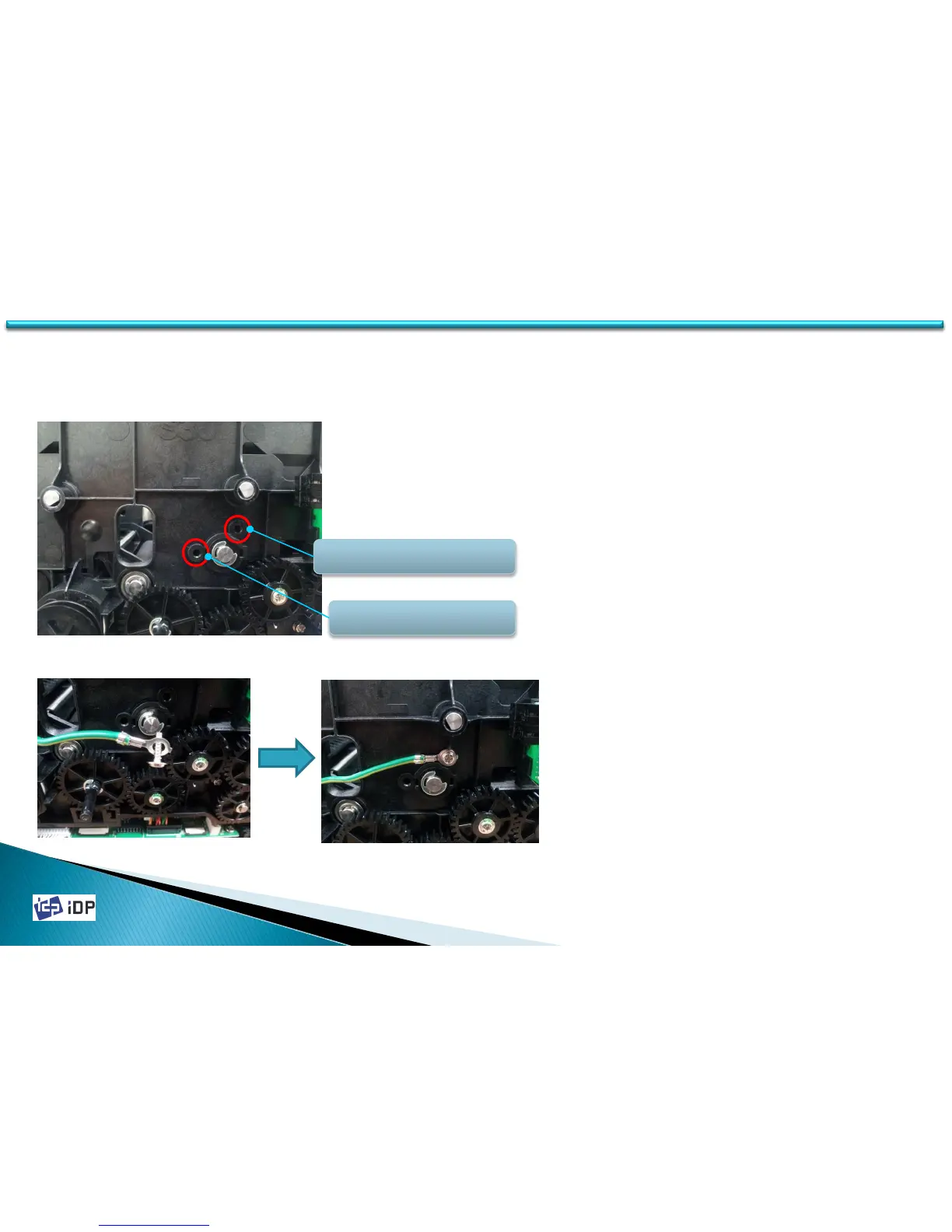

<Fig.1>
1. Assemble Ground Wire (611164, WIRE,EARTH_LINK,1P,290mm)
on the Left Main Frame.
2. Fig.1 is the side of Left Main Frame before tightening screws
on BRACKET S3,COLOR_SEARCH_COVER.
3. Insert screw into O-Ring as Fig.2-1 and tighten screw on
BRACKET S3,COLOR_SEARCH_COVER as FIg2-2.
WIRE,EARTH_LINK,1P,290mm
TIE SS,RETAINER_COIL_RB2
<Fig.2-1>
<Fig.2-2>
