B.2 Main Parts Expanded View
B.2.16.2 Ground Wiring
154
<Fig.3>
4. Insert screw into
BRACKET S3,COLOR_SEARCH_COVER
TIE through
SS,RETAINER_COIL_RB2
as Fig.3 and tighten screw.
Assemble position of TIE SS,RETAINER_COIL_RB2
<Fig.4>

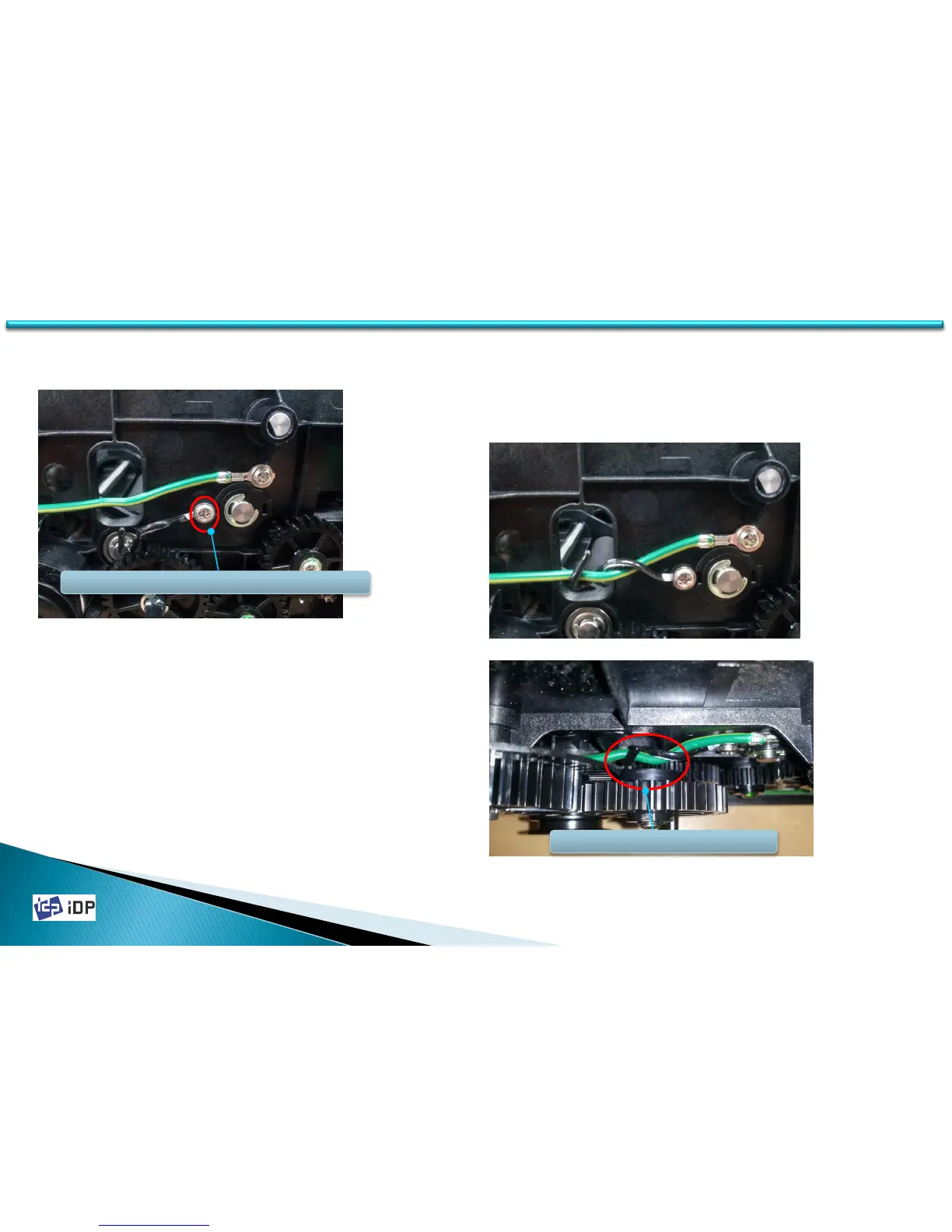

5. Fix ground wire by using TIE SS,RETAINER_COIL_RB2 as Fig.4.
•
At this time, stick TIE SS,RETAINER_COIL_RB2 and Ground Wire
to FRAME S3,MAIN_BODY_L. If it is not stuck, it may make some
problem on Ribbon Motor and Gears as Fig.5. After assembling
it, check the working status of it.
Stick Wire to Main Frame
<Fig.5>
To Next Page
