idp Smart-30 - Ribbon, Head down up Drive

2014-03-24
43

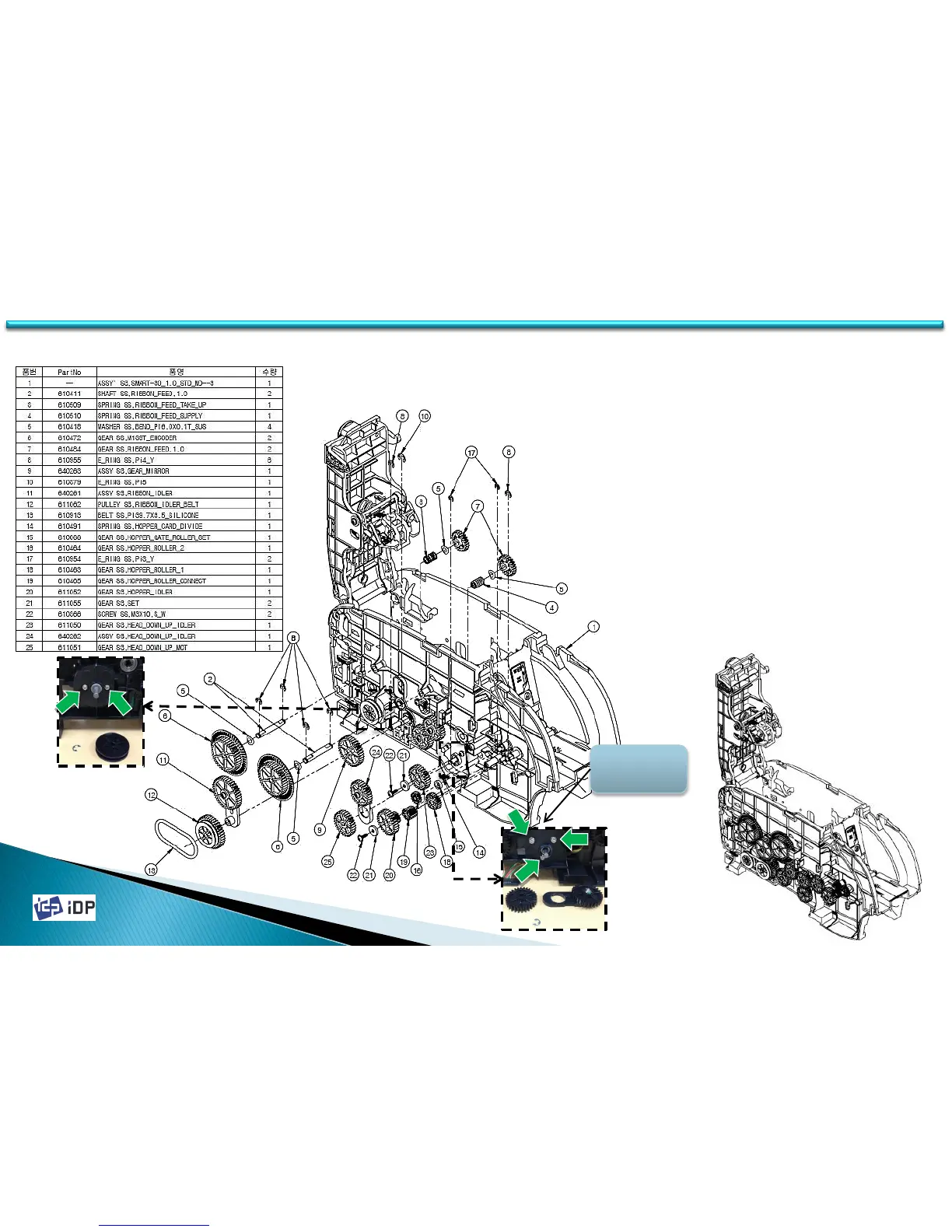

1. Ribbon and Head Down_Up Drive is located
on the left side of Frame.
2 Ribbon Motor is fixed by 2 screws inside of
Frame. (See B.2.1 ASSY S3,LEFT-1, B2.2 ASSY
S3,LEFT-2)
3 After disassembling Gear is assembled to
Ribbon Motor, enable to disassemble Ribbon
Motor.
4 Head Up/Down Motor is fixed by 3 screws
inside of Frame. (See B.2.1 ASSY S3,LEFT-1,
B2.2 ASSY S3,LEFT-2)
5 After disassembling Gear(25) and ASSY(24),
enable to disassemble Head Up/Down Motor.
6 After loosening 3 screws and disconnecting
wire, enable to disassemble Head Up/Down
Motor.
3.4.3 Ribbon, Head Down_Up Drive
Head
Up/Down
Motor
43
3.4 Drive Unit
