idp Smart-30 - BELT Tension Setting

2014-03-24
42
1. Belt-Step Motor 50M2M160 Tension
Setting

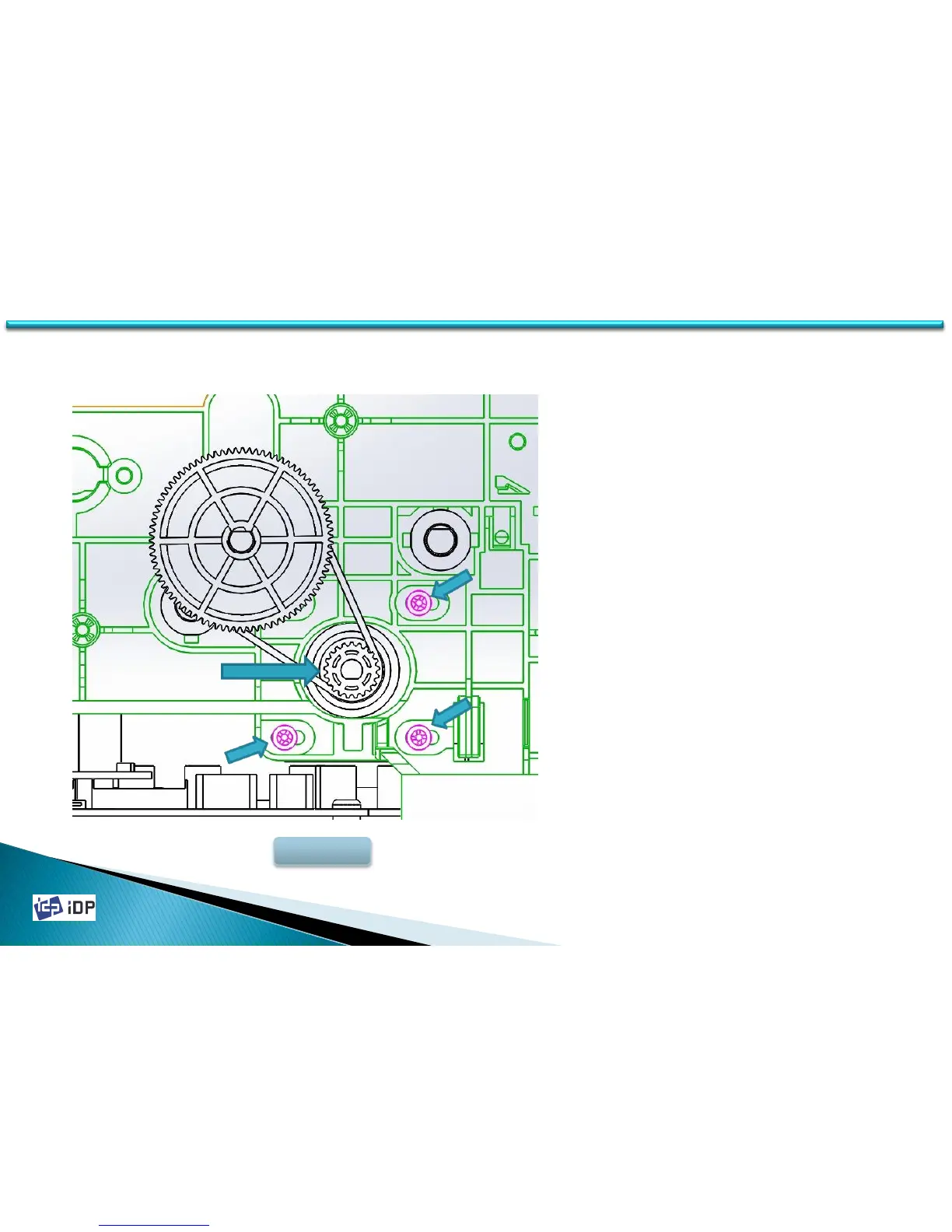

- After put the belt to the pulley, press
the pulley as 1.5 ~ 2 kgf to the No.1
arrow direction as Fig.3-1.
- In this state, tighten 3 screws to set
tension and fix Step Motor.
3.4.2 BELT Tension Setting
3.3 Drive Unit
42
Fig,3-1
1
2
2
2
