idp Smart-30 - Contactless Encoder Option Wiring

2014-03-24
182

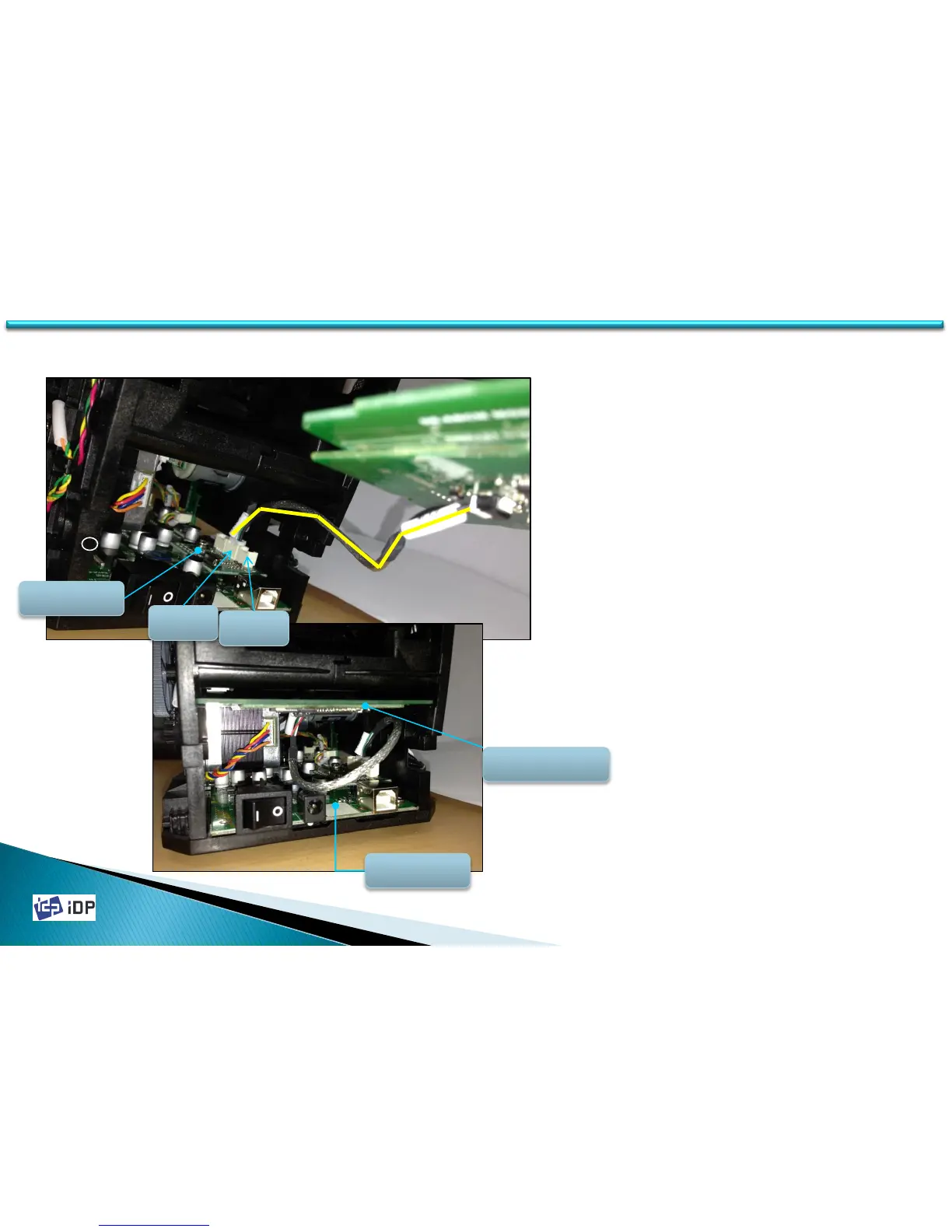

1. Wire of Contactless Encoder is located on
the upper side of USB Hub on Printer
Main Board. Connect the wire of
Contactless Encoder to USB port (-
Orange Line).
2. At this time, the wire of Contactless
Encoder must be connected to PORT2 or
PORT3.
 CONTACTLESS ENCODER Option Wiring
C.4 Internal RF Option
PCBA USB
HUB
PCBA INTERNAL
RF OPTION PART
M / B
182
PORT 2
PORT 3
* For assembling USB HUB on
Printer Main Board, refer to C.5.
* For assembling ETHERNET
Option, refer to C.6
