2014-03-24

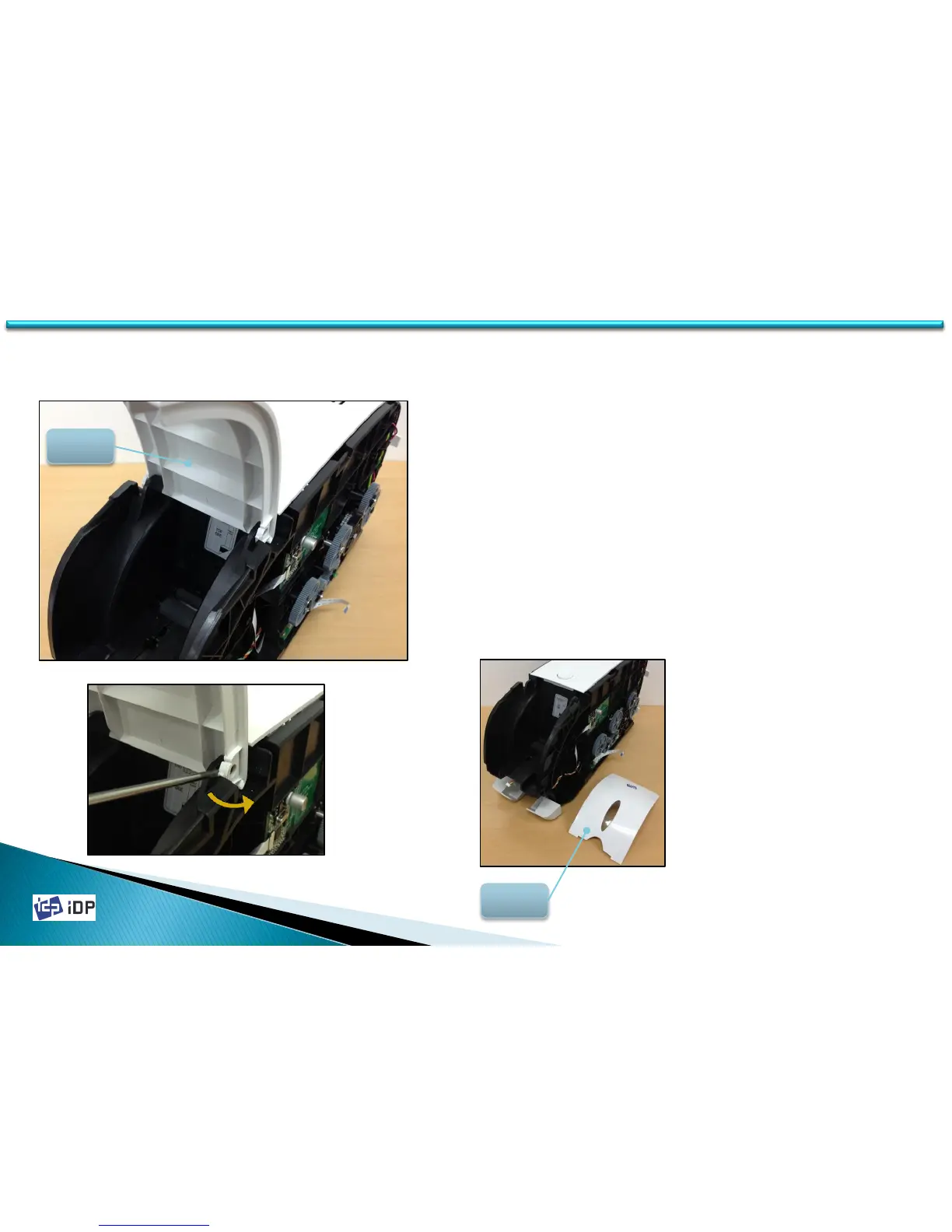

3.1.4 Front Cover

1. Open the Front Cover

2. Broaden the gab between Main Frame and

Front Cover using screw driver and

disassemble Front Cover from Main Frame.

Front

Cover

Front

Cover

3.1 Covers
