idp Smart-30 - Ethernet Option Assembly

2014-03-24
186
1. Assemble HEX SCREW on Printer Main Board using
washers and nut.
2. Fix Printer Main Board to Bottom Frame using existing
M3 Screw.
3. After fixing ETHERNET BOARD, tighten M3 SCREW.

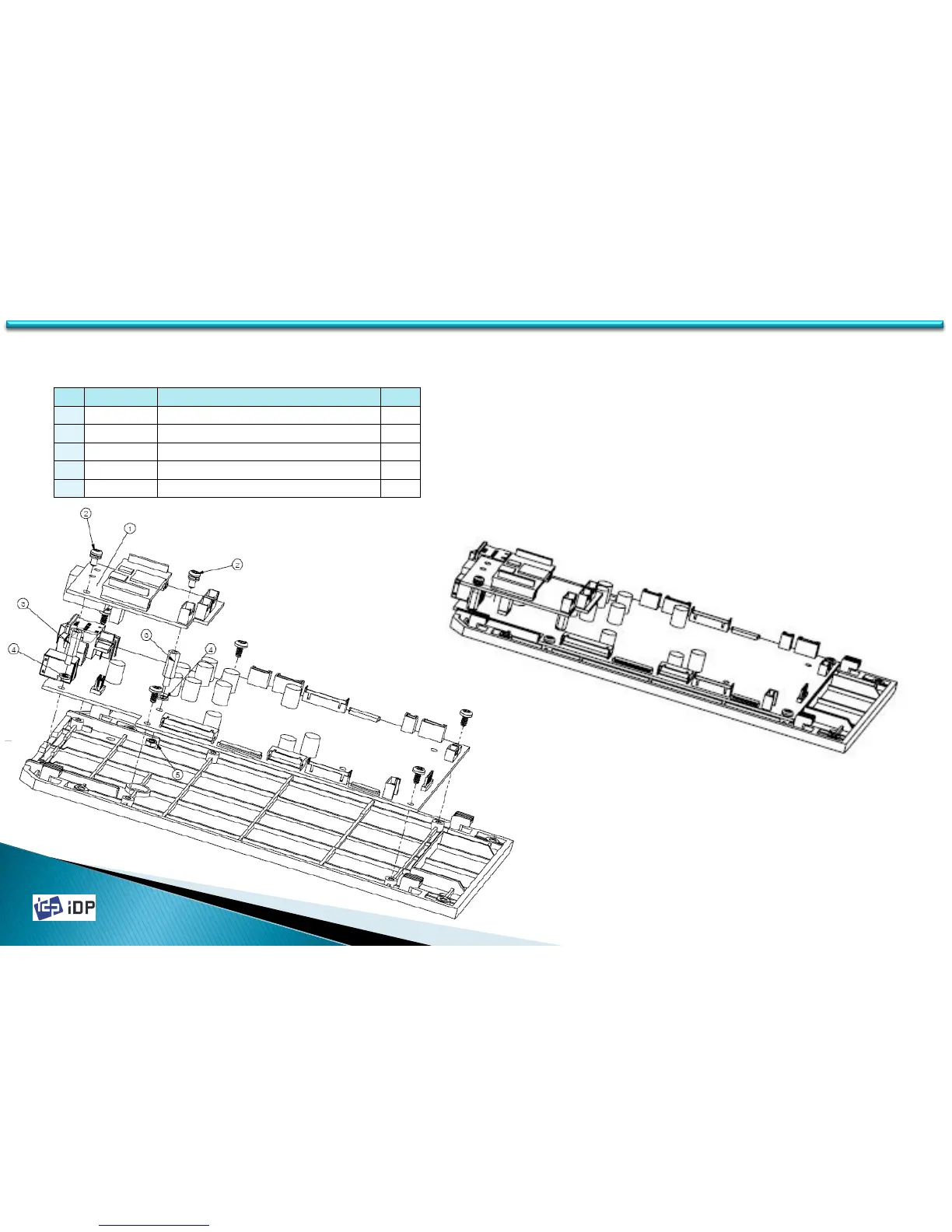

 ETHERNET OPTION Assembly
No. IA. CODE NAME Q'TY
1
630070 NETWORK HUB EDDY-CPU V2.5-ASSY
1
2
610355 SCREW SS,M3x6,SAM
2
3 610673
SCREW SS,M3x13,HEX
2
4
610374 WASHER SS,M3_SPRING
2
5
610375 NUT SS,M3X2.4
1
186
C.6 Ethernet Option
