3.2 Top Cover Unit
3.2.1 Thermal Print Head

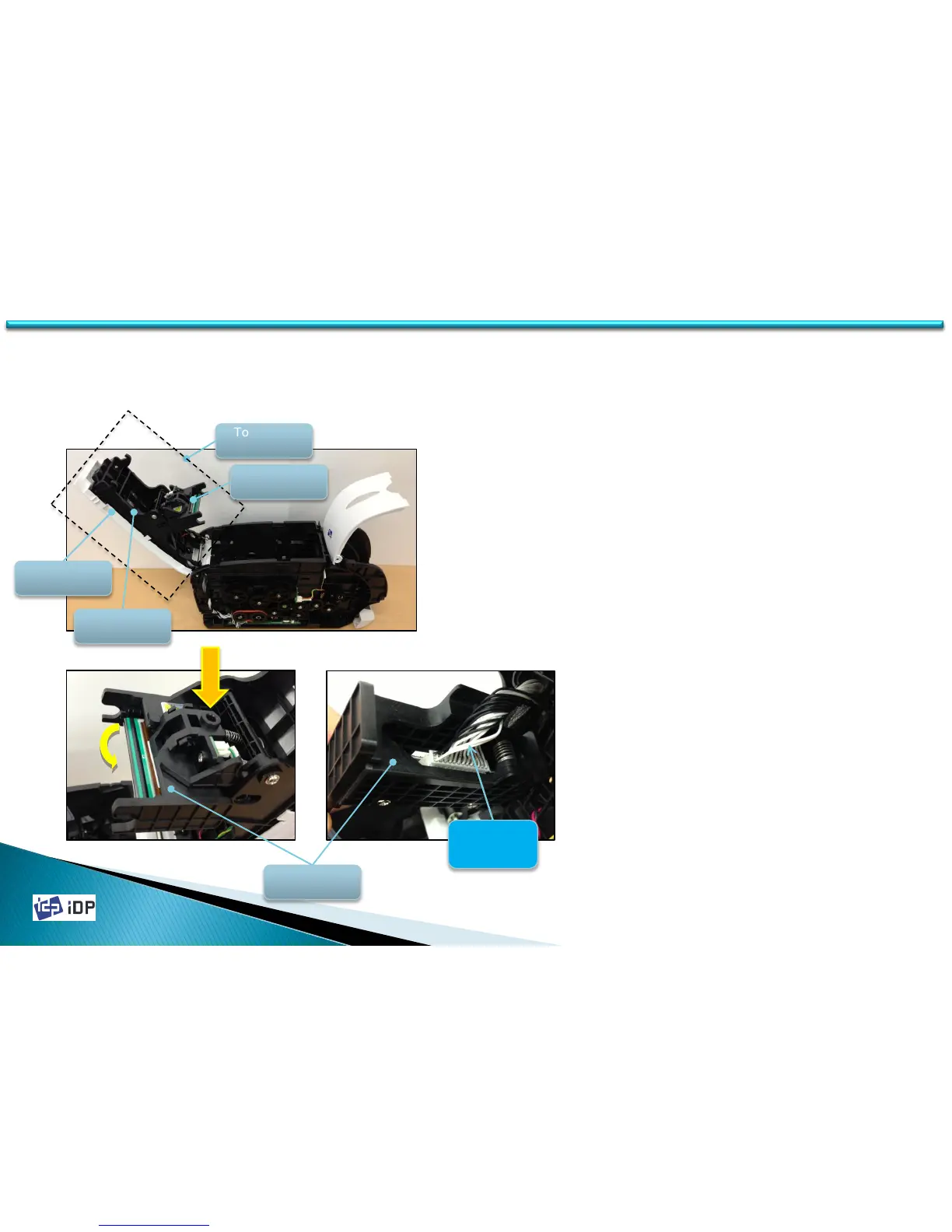

1. Printer Top Cover Unit consists of Top
Cover, Top Cover Frame and Thermal Print
Head.
2. Thermal Print Head is fixed by Hinge and
Hook on Top Cover Frame.
3. Press the push button of Hook, rotate the
thermal print head to the bottom side and
disassemble thermal print head from Top
Cover Frame.
4. Disconnect the Thermal Print Head Wire.
Top Cover
Unit
Thermal
Head
Push
Thermal
Head wire
Top Cover
Top Cover
Frame
Thermal
Head
