idp Smart-30 - Top Cover Frame

2014-03-24
37

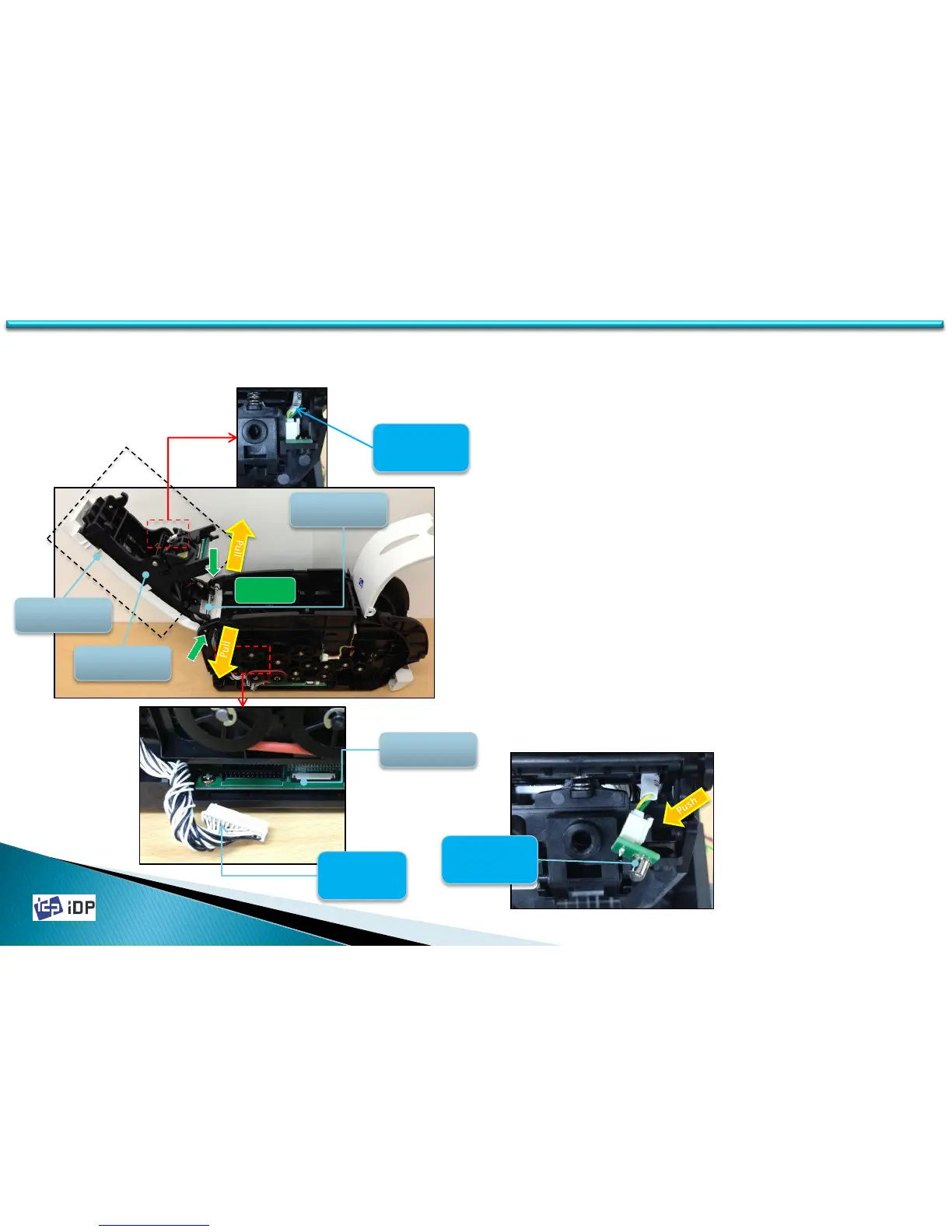

1. Top Cover Frame is assembled to Main
Frame by Shaft Top Set.
2. Disconnect Thermal Print Head Wire on
Main Board.
3. Disconnect Color In Sensor Wire on
Thermal Print Head position.
4. Loosen 2 screws and broaden both Main
Frames, and then disassemble Top Cover
Frame.
5. To disassemble Color in Sensor, push
Snap for fixing and pull out Color In
Sensor.
3.2.4 Top Cover Frame
3.2 Top Cover Unit
Thermal
Head wire
M / B
Top Cover
Top Cover
Mold
Screw
Shaft Top
Set
Color
Sensor wire
Color
Sensor wire
