idp Smart-30 - Contact Encoder Option Wiring

2014-03-24
178

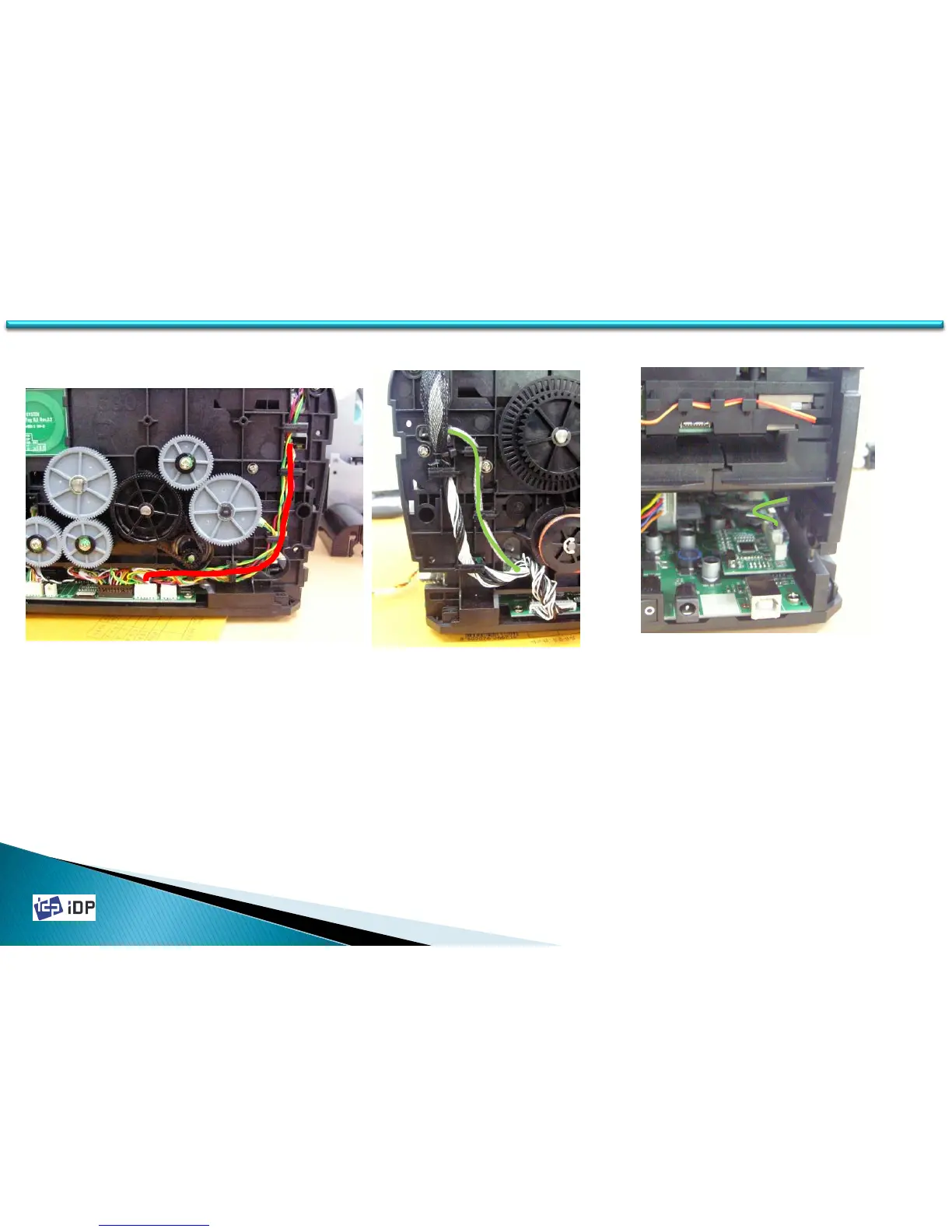

1. Connect cable from Main Frame R to Main
Board as figure(RED LINE).
 CONTACT ENCODER Option Wiring
C.3 IC Option
178
2. Arrange cable from Main Frame L to the
beside of Print Head Cable as
Figure(GREEN LINE)
3. Connect the cable to USB HUB PORT 2.
