idp Smart-30 - MS HEAD ASSY Assembly

2014-03-24
169
1. MS Encoder consists of MS MAIN
BD,SMART,0.5 and MS_TG313RWVPH_30
BD,SMART30,0.1(MS Encoding Head).
2. To install MS Encoder, disassemble Bottom
Frame from printer (See 3.3.1).
3. Assemble MS_TG313RWVPH_30
BD,SMART30,0.1 on Main Frame R as
Figures.

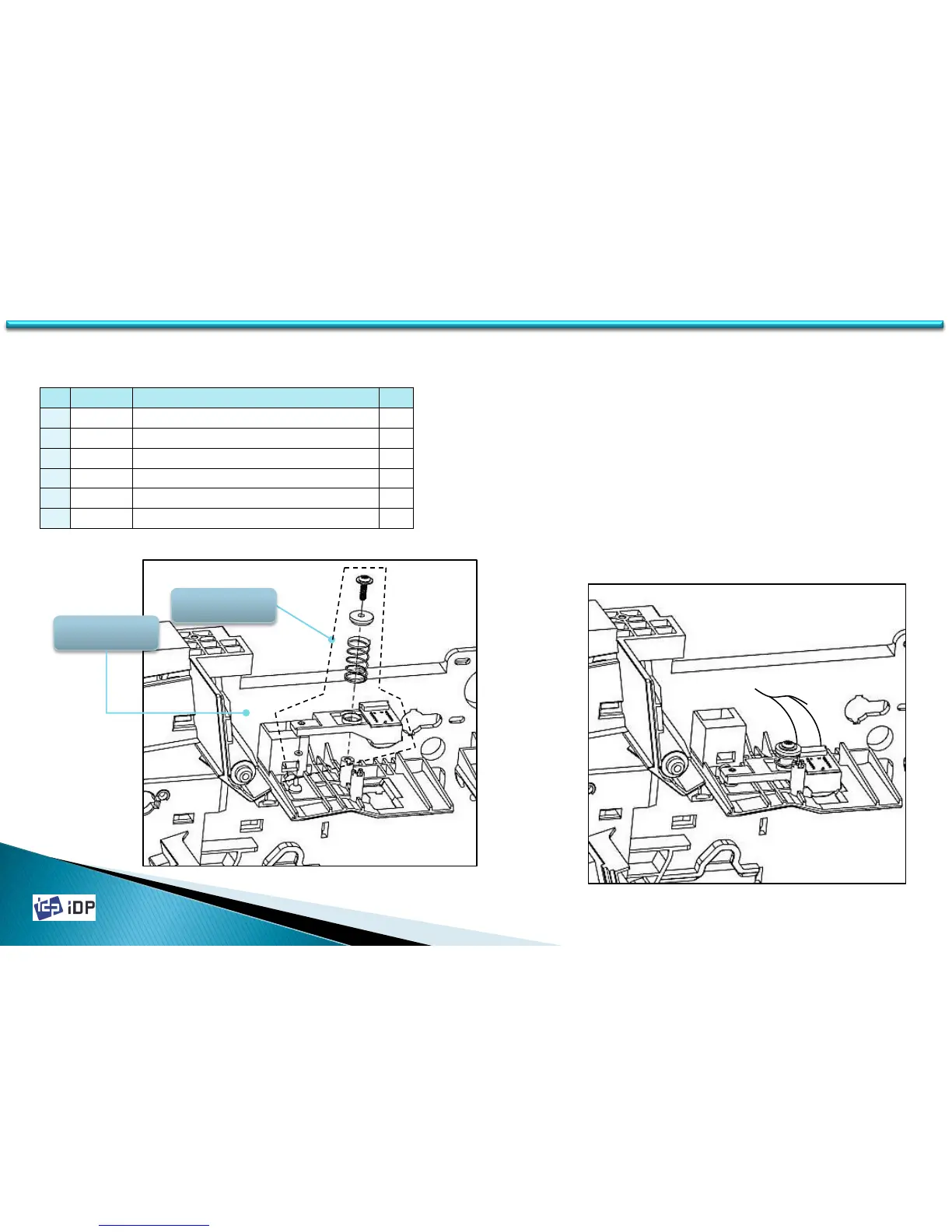

 MS HEAD ASSY Assembly
C.1 MS Option
Main Frame R
MS Option
No. IA. CODE NAME Q'TY
1
610020 O_RING SS,PI1.7/1
1
2
610116 HOLDER SS,MS_HEAD_SPRING_SET
1
3
610366 SCREW SS,M3X10,S
1
4
610507 SPRING SS,MS_TENSION
1
5
630046 MS_TG313RWVPH_30 BD,SMART30,0.1
1
6
610146 FFC CABLE,170mm,16P,0.5mm,2896 c-type
1
