idp Smart-30 - Cleaning Roller; Cleaning Roller Fixed

2014-03-24
45

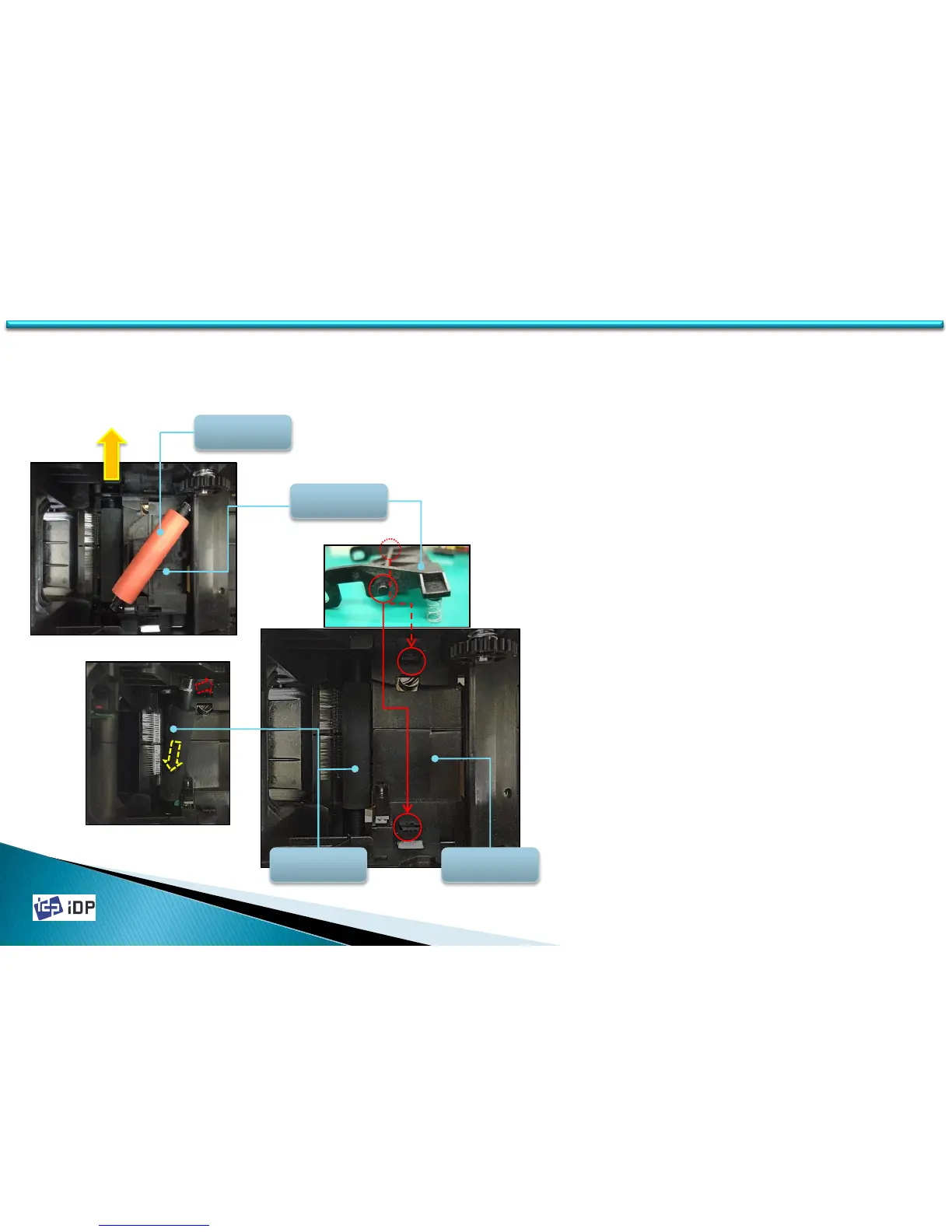

1. While broadening the fixing parts of
Cleaning Roller Bracket, pull out Cleaning
Roller.
2. Cleaning Roller Bracket is assembled to
Main Frame by using Hinge.
3. Transform the fixing parts of Main Frame
for Hinge and disassemble Cleaning
Bracket.
4. Disassemble Bush on the end of Cleaning
Roller Fixed.
5. While pushing Cleaning Roller Fixed to
the Right Side, disassemble Roller from
the Left Side.
3.5.1 Cleaning Roller / Cleaning Roller Fixed
3.6 Rollers
Cleaning
Roller
Cleaning
Roller Fixed
Cleaning
Roller BKT
Main Frame
Pull
