6.2.2. Selecting the Reset Controller's Clock Source
When you instantiate a Native PHY IP, the software automatically instantiates Master
Transceiver Reset Sequencer (TRS) and Local TRS (LTRS) blocks. Use the Intel
Quartus Prime Pro Edition assignment settings editor to provide a 25, 100, or 125 MHz
free-running and stable clock to OSC_CLK_1 for the proper functionality of the two
blocks. To set the OSC_CLK_1 frequency in Intel Quartus Prime, follow these steps:
1.
Select Assignment ➤ Settings.
2. Click Device/Board in the top right corner.
3. Select Device and Pin Options.
4. Select 25 MHz OSC_CLK_1 pin, 100 MHz OSC_CLK_1 pin, or 125 MHz
OSC_CLK_1 pin as the Configuration clock source.

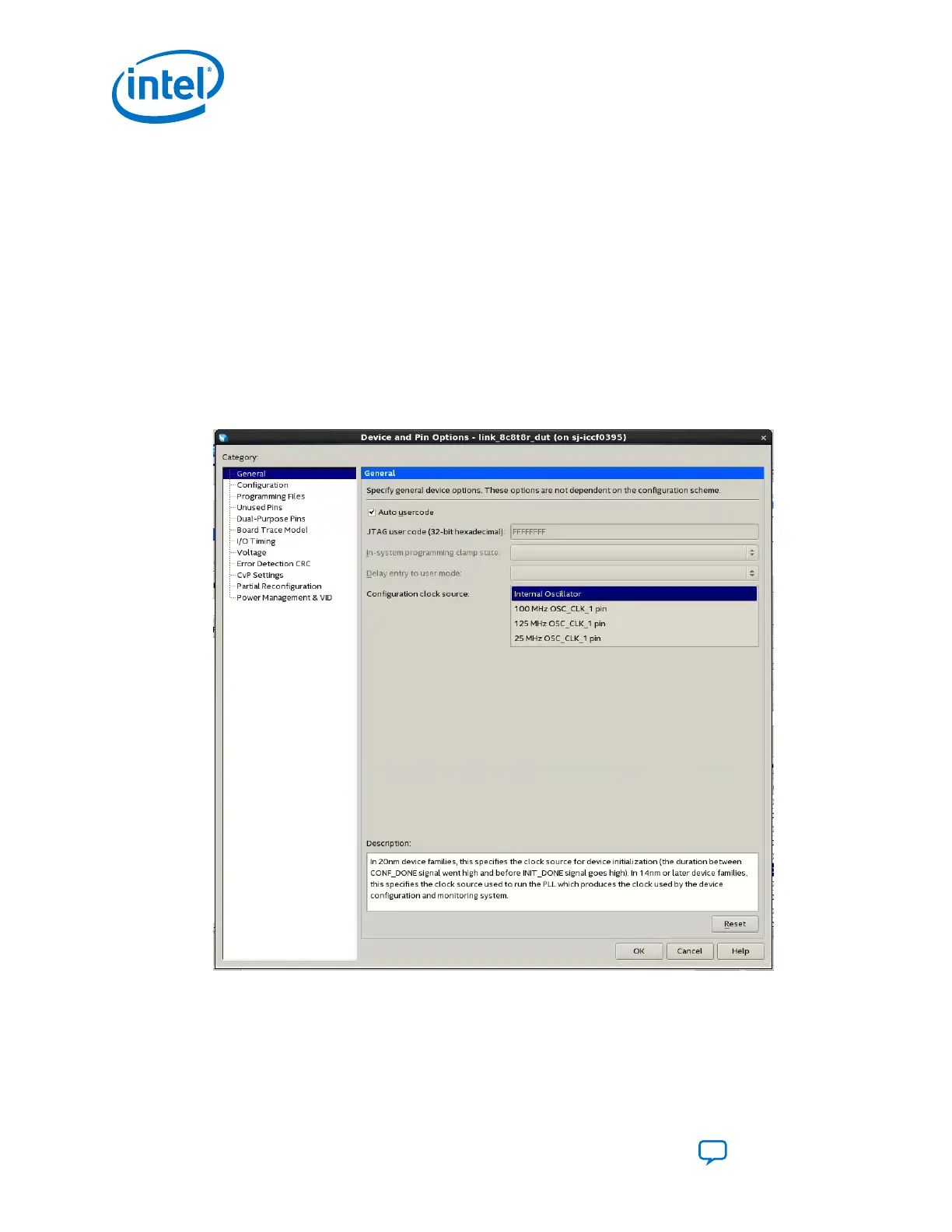

Figure 58. Device and Pin Options
6.3. Reset Block Architecture
The Native PHY IP core's digital reset controller block interacts with a master and local
transceiver reset sequencer. The Master TRS and Local TRS blocks work together to
stagger the resets to the transceiver channels for noise mitigation.
6. Resetting Transceiver Channels
UG-20056 | 2019.02.04
Intel
®
Stratix
®
10 E-Tile Transceiver PHY User Guide
Send Feedback
102
