When all of these signals are high, the PMA is in the ready state and the receiver is
locked to data.
To open Signal Tap, click Tools > Signal Tap Logic Analyzer.
You should have your board powered on and running when you use Signal Tap. To add
signals you would like to probe:
1. Right-click anywhere in the Setup tab window and select Add Nodes.
2. Search for and insert your desired nodes.

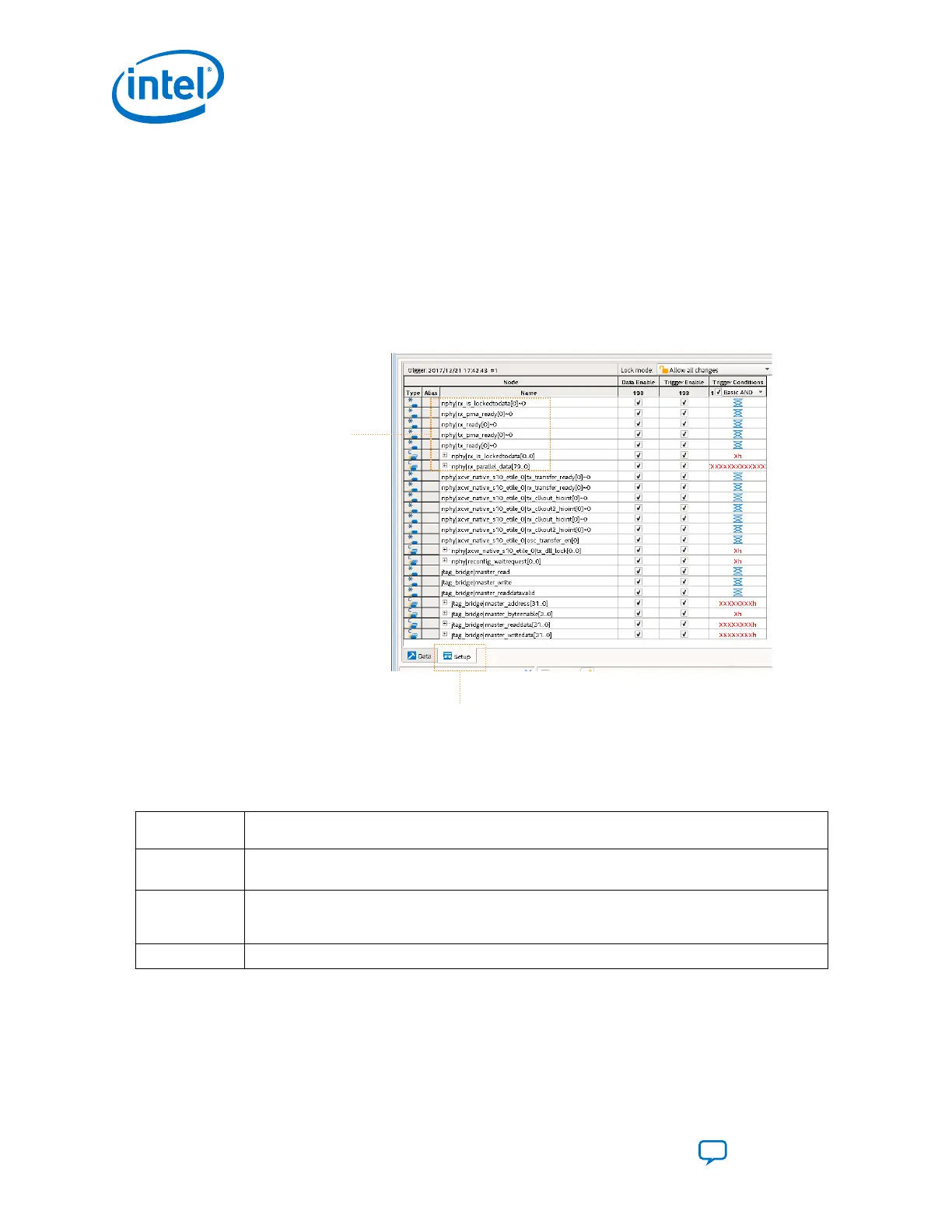

Figure 116. Signal Tap Setup Tab
Setup Tab
Added signals
B.10. PMA Direct PAM4 30 Gbps to 57.8 Gbps Implementation
Revision History
Document
Version
Changes
2019.02.04 Made the following changes:
• Updated GUI figures in Instantiating the Transceiver Native PHY IP.
2018.07.18 Made the following changes:
• Added further description and a link to the Transceiver Toolkit documentation in the "Debug Tools"
section.
2018.05.15 Initial release.
B. PMA Direct PAM4 30 Gbps to 57.8 Gbps Implementation
UG-20056 | 2019.02.04
Intel
®
Stratix
®
10 E-Tile Transceiver PHY User Guide
Send Feedback
228
