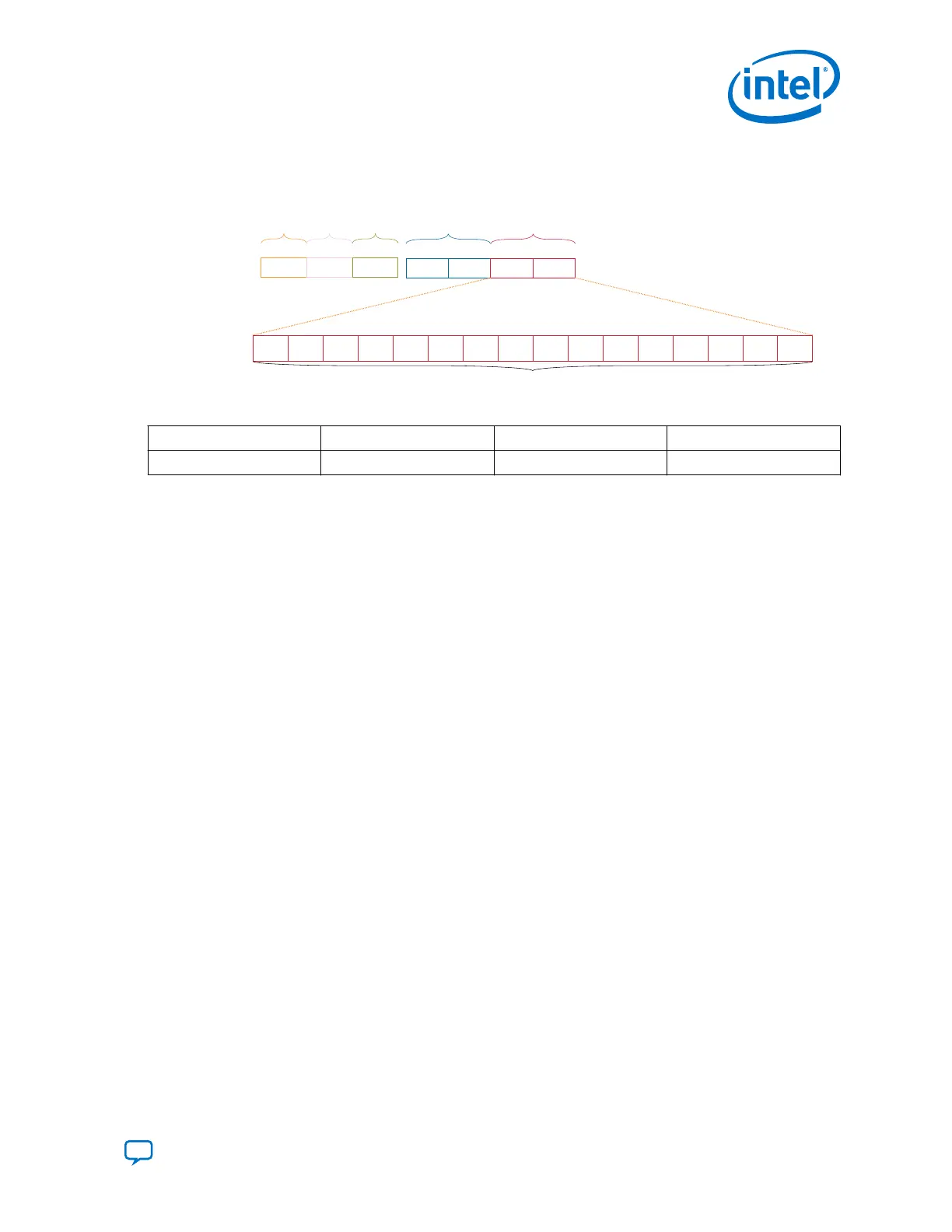

Figure 89. Injecting Error Bits Using the PMA Attributes Through AVMM Registers
0x00 0x02 0x01 0x25
0x87 0x86 0x85 0x84
7 6 5 4 3 2 1 07 6 5 4 3 2 1 0
PMA code
address
PMA code
value
0x90
7 0 0 07 7
0x8B 0x8A
Request issue
to PMA:
enable or
disable
Status of
request
made to
PMA[0]
Status of
request
made to
PMA[7]
7 0 07
Error Inject
Table 58. PMA Attribute Code Error Inject Bits
Name Address Bit Range Description
Error Inject 0x001B 0x85[7:0], 0x84[7:0] Number of errors to inject
1. Set Error Injection for injecting single bit error.
a. Write 0x84[7:0] = 0x01.
b. Write 0x85[7:0] = 0x00.
c. Write 0x86[7:0] = 0x1B.
d. Write 0x87[7:0] = 0x00.
e. Write 0x90[0] = 1’b1.
f. Read 0x8A[7]. It should be 1.
g. Read 0x8B[0] until it changes to 0.
h. Write 0x8A[7] to 1'b1 to clear the 0x8A[7] value.
2. Set Error Injection for injecting burst of 10 bit errors.
a. Write 0x84[7:0] = 0x0A.
b. Write 0x85[7:0] = 0x00.
c. Write 0x86[7:0] = 0x1B.
d. Write 0x87[7:0] = 0x00.
e. Write 0x90[0] = 1’b1.
f. Read 0x8A[7]. It should be 1.
g. Read 0x8B[0] until it changes to 0.
h. Write 0x8A[7] to 1'b1 to clear the 0x8A[7] value.
8.4. PMA Receiver Equalization Adaptation Usage Model
The PMA receiver adaptive equalization engine allows the equalization blocks to adapt
to an optimal value. These optimal values can be read back.
