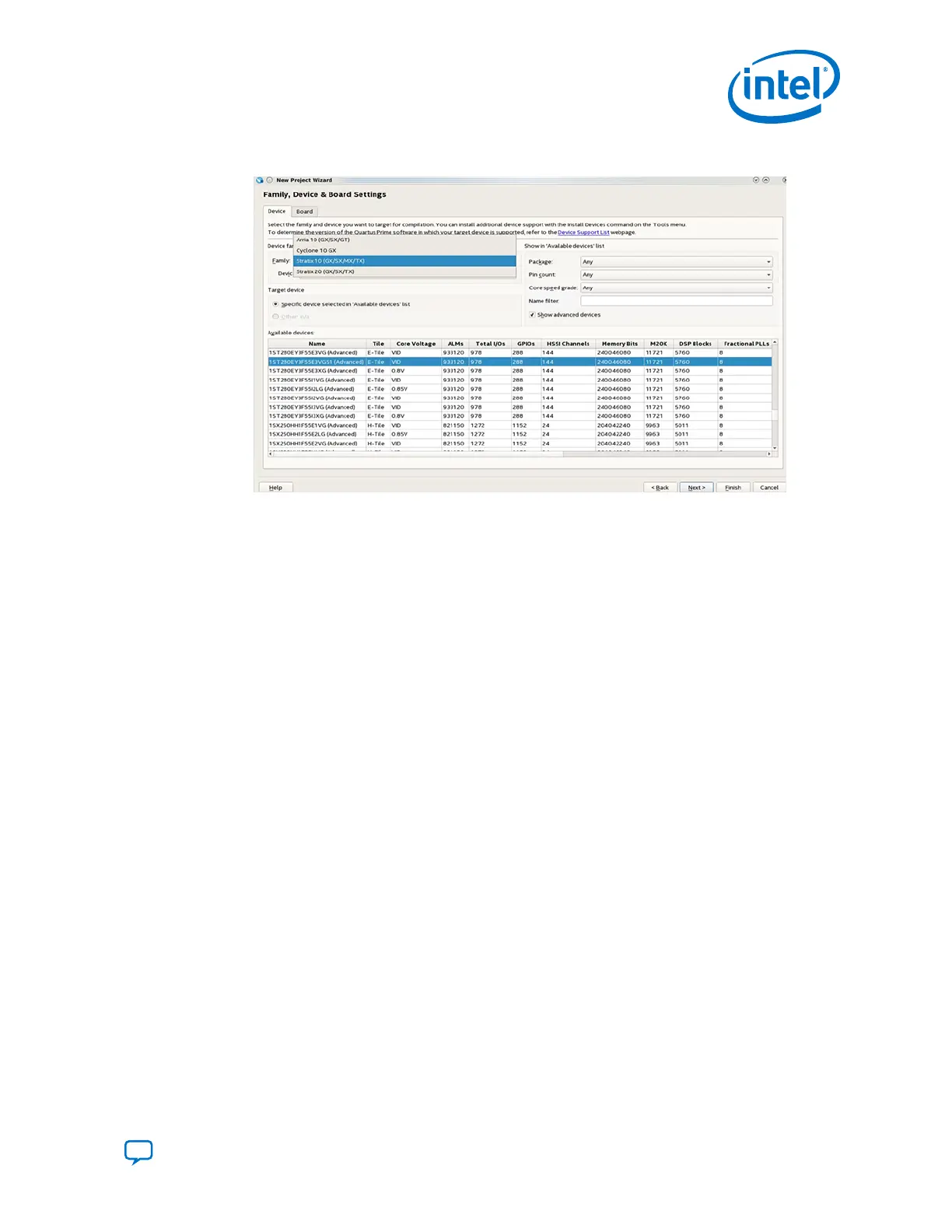

Figure 106. Family, Device & Board Settings
Refer to the Intel Stratix 10 Device Datasheet for E-Tile specifications.
Related Information
Intel Stratix 10 Device Datasheet
B.3. Selecting the Configuration Clock Source
Use this procedure to set the clock for the transceiver reset sequence (TRS) and local
TRS (LTRS) blocks.
1. Click Assignment > Settings > Device/Board.
2. Click the Device and Pin Options button.
B. PMA Direct PAM4 30 Gbps to 57.8 Gbps Implementation
UG-20056 | 2019.02.04
Send Feedback
Intel
®
Stratix
®
10 E-Tile Transceiver PHY User Guide
219
