1. Locate the Stratix 10 E-Tile Transceiver Native PHY IP core in the IP Catalog.

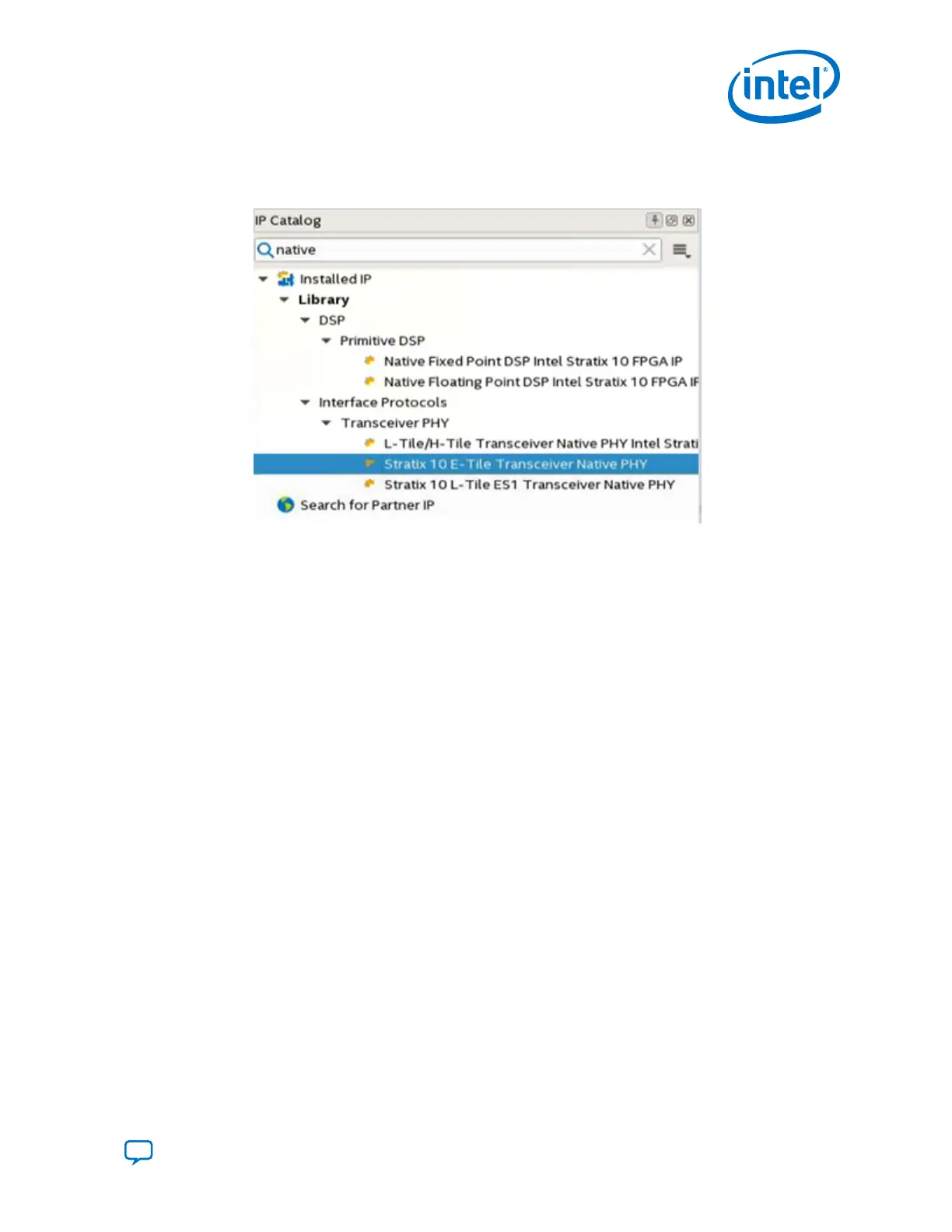

Figure 109. IP Catalog
The Native PHY IP Parameter Editor allows you to set many configurations, such
as:
• Transceiver configuration rules (PMA direct or PMA direct high data rate PAM4)
• Number of data channels
• TX/RX PMA modulation type (NRZ or PAM4)
• TX/RX PMA data rate
• TX/RX PMA reference clock frequency
B. PMA Direct PAM4 30 Gbps to 57.8 Gbps Implementation
UG-20056 | 2019.02.04
Send Feedback
Intel
®
Stratix
®
10 E-Tile Transceiver PHY User Guide
221
