In the Parameter Editor, the parameters are organized in the following sections for
each functional block and feature:
• General, Datapath Options, and Common PMA Options
• TX PMA
• RX PMA
• Core Interface
• PMA Interface
• Reset
• RS-FEC (when you enable this feature)
• Dynamic Reconfiguration

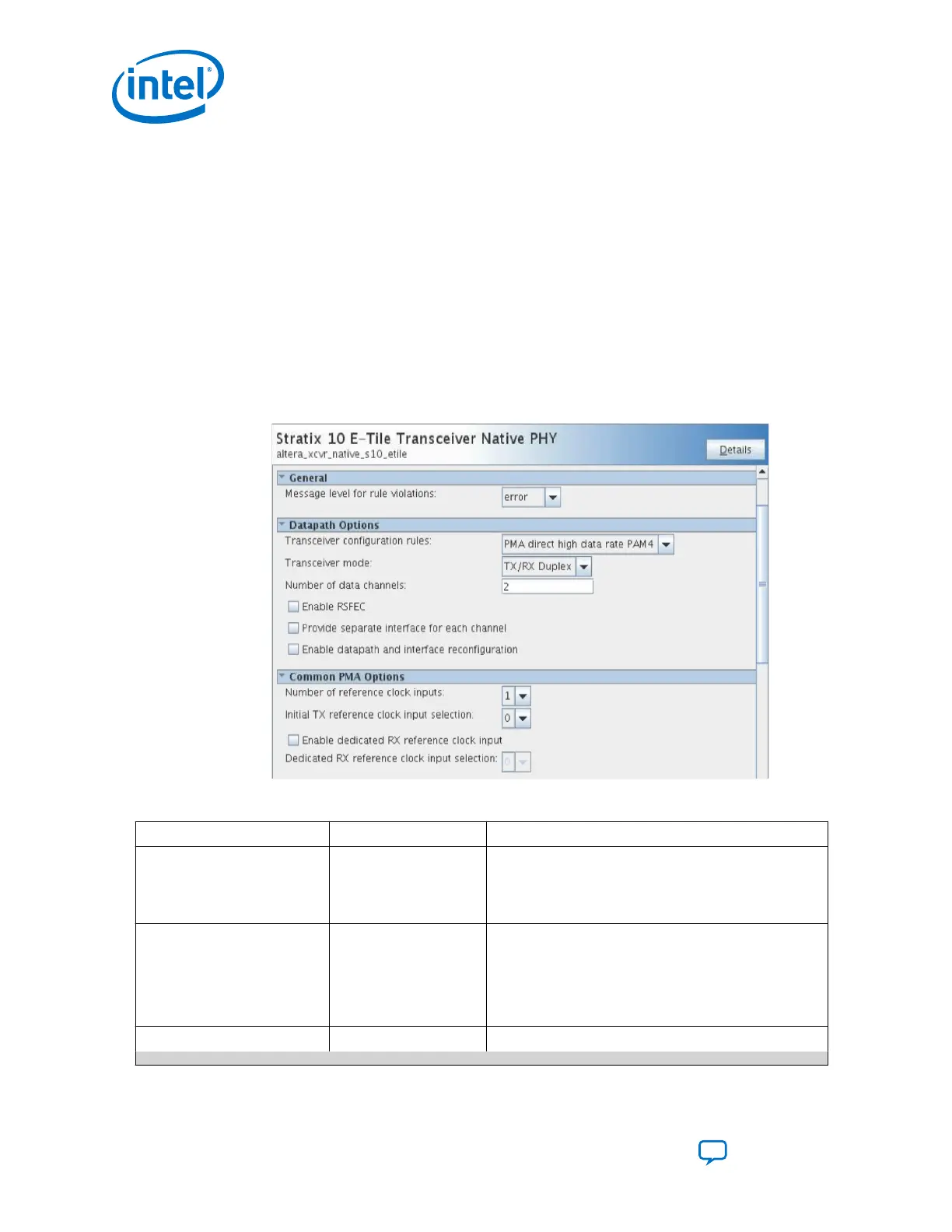

Figure 16. General, Datapath, and Common PMA Options
Table 8. General, Datapath Options, and Common PMA Options
Parameter Value Description
Message level for rule
violations
error
warning
Specifies the messaging level to use for parameter rule
violations. Selecting error causes all rule violations to
prevent IP generation. Selecting warning displays all rule
violations as warnings in the message window and allows
IP generation despite the violations.
Transceiver configuration
rules
PMA direct
PMA direct high data
rate PAM4
Gearbox 64/66
PLL
Selects the protocol configuration rules for the transceiver.
This parameter governs the rules for the correct settings of
individual parameters. Certain features of the transceiver
are available only for specific protocol configuration rules.
This parameter is not a "preset". You must correctly set all
other parameters for your specific protocol and application
needs.
Transceiver mode TX/RX Duplex Specifies the operational mode of the transceiver:
continued...
2. Implementing the Transceiver PHY Layer in Intel Stratix 10 Devices
UG-20056 | 2019.02.04
Intel
®
Stratix
®
10 E-Tile Transceiver PHY User Guide
Send Feedback
28
