2.2.2.3. RX PMA Options

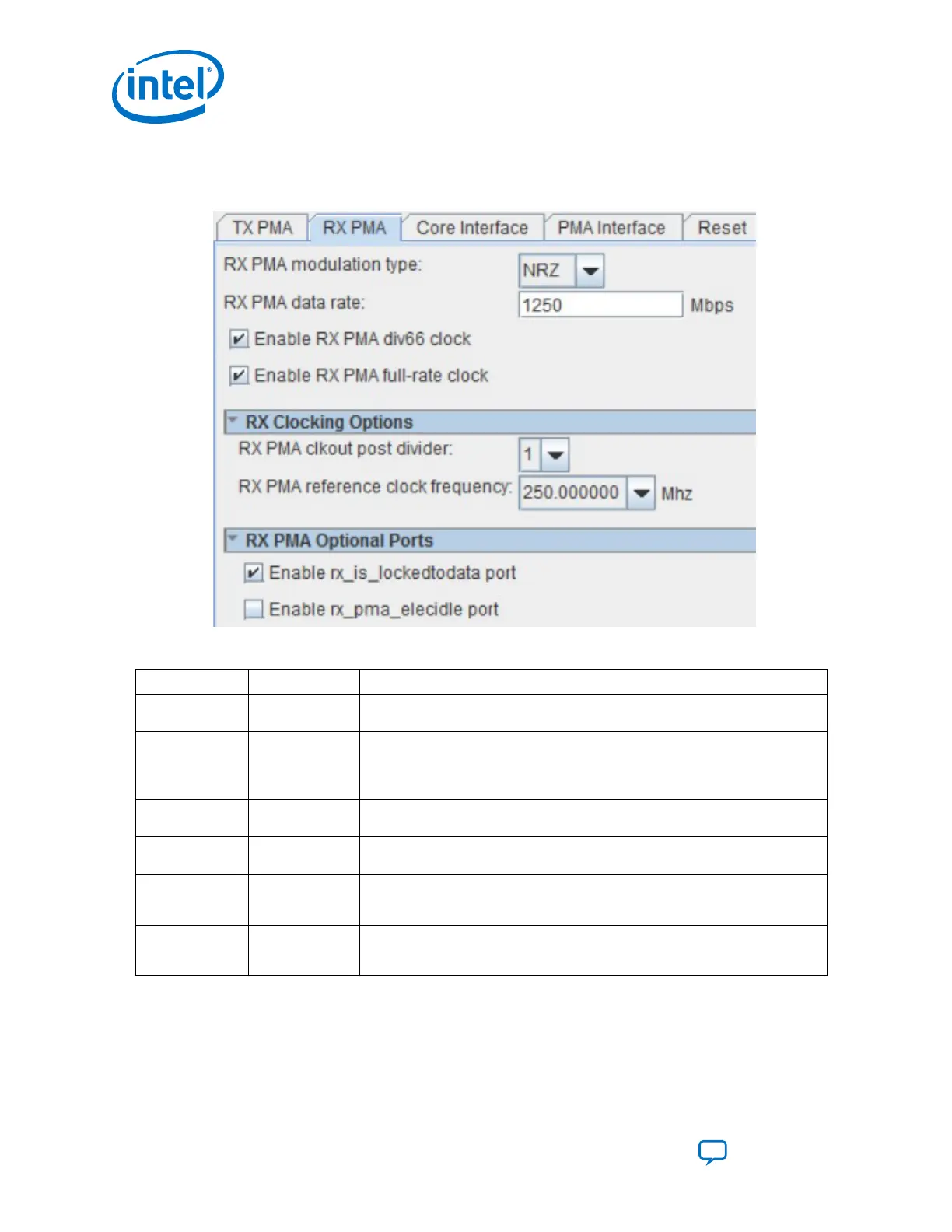

Figure 18. RX PMA Options
Table 11. RX PMA Options
Parameter Value Description
RX PMA
modulation type
NRZ, PAM4 Select the RX PMA modulation type based on your usage.
RX PMA data
rate
For PAM4, 2000
- 57800 Mbps
For NRZ, 1000 -
30000 Mbps
Specifies the transceiver RX data rate in units of Mbps.
Note: You must use the PAM4 high data rate mode for data rates > 30 Gbps.
Enable RX PMA
div66 clock
On/Off Enables or disables the RX PMA div 66 clock option.
Enable RX PMA
full-rate clock
On/Off Enables or disables the full-rate clock of the RX PMA.
RX PMA
clockout post
divider
1, 2, 4, 8
Specifies the post divider counter value for the rx_pma_clkout port.
RX PMA
reference clock
frequency
100 - 700 Selects the reference clock frequency options for the RX in MHz.
