Interroll ドラムモーターDMシリーズ用接続ケーブル
接続ケーブルの取り外し
バージョン 2.0 (06/2018) ja
製造元取り扱い説明書の翻訳
205
平行ネジ接続による解体
プラグ付とプラグ無しのモーター変形を区別するために、ネジはプラグのシンボルの
印が付けられています。
3
2
4
5
6
32
1
4

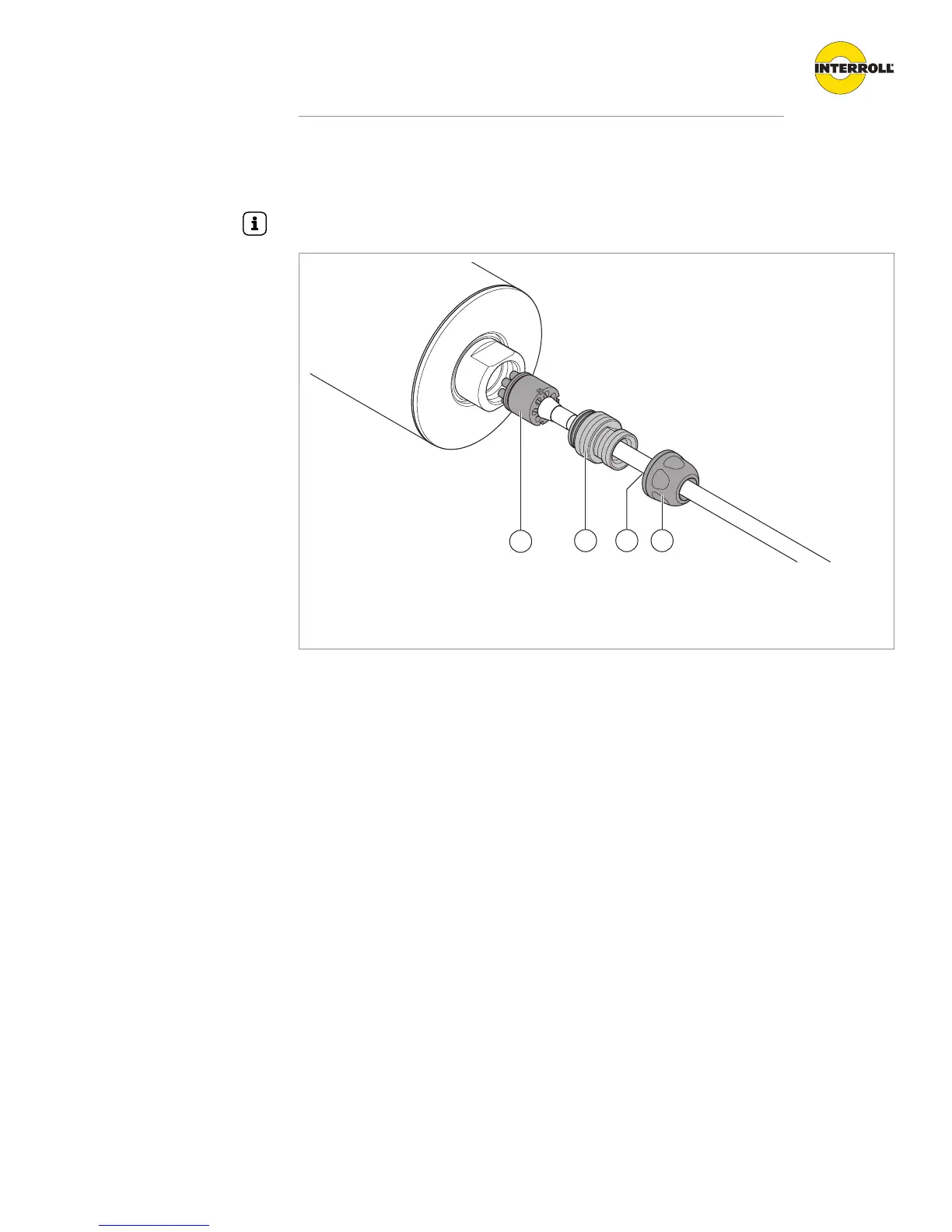

接続ケーブルの取り外し
1 プラグ 3 シールインサート
2 パイプニップル 4 スラストボルト
4 スラストボルト(4)を20 mmのスパナで完全に緩めます。
4 青いシールインサート(3)がパイプニップル(2)から引き抜かれていることを確認
します。
4 パイプニップル(2)を14 mmのスパナでシャフト端から完全に抜き取ります。
4 コネクター(1)とケーブルを、シャフトに固定されているコンセントから抜き取り
ます。
