Interroll DM series User Manual

Interroll Drum motor DM series connecting cable
Removing the connecting cable
26 Version 2.0 (06/2018) en
Translation of original instruction manual

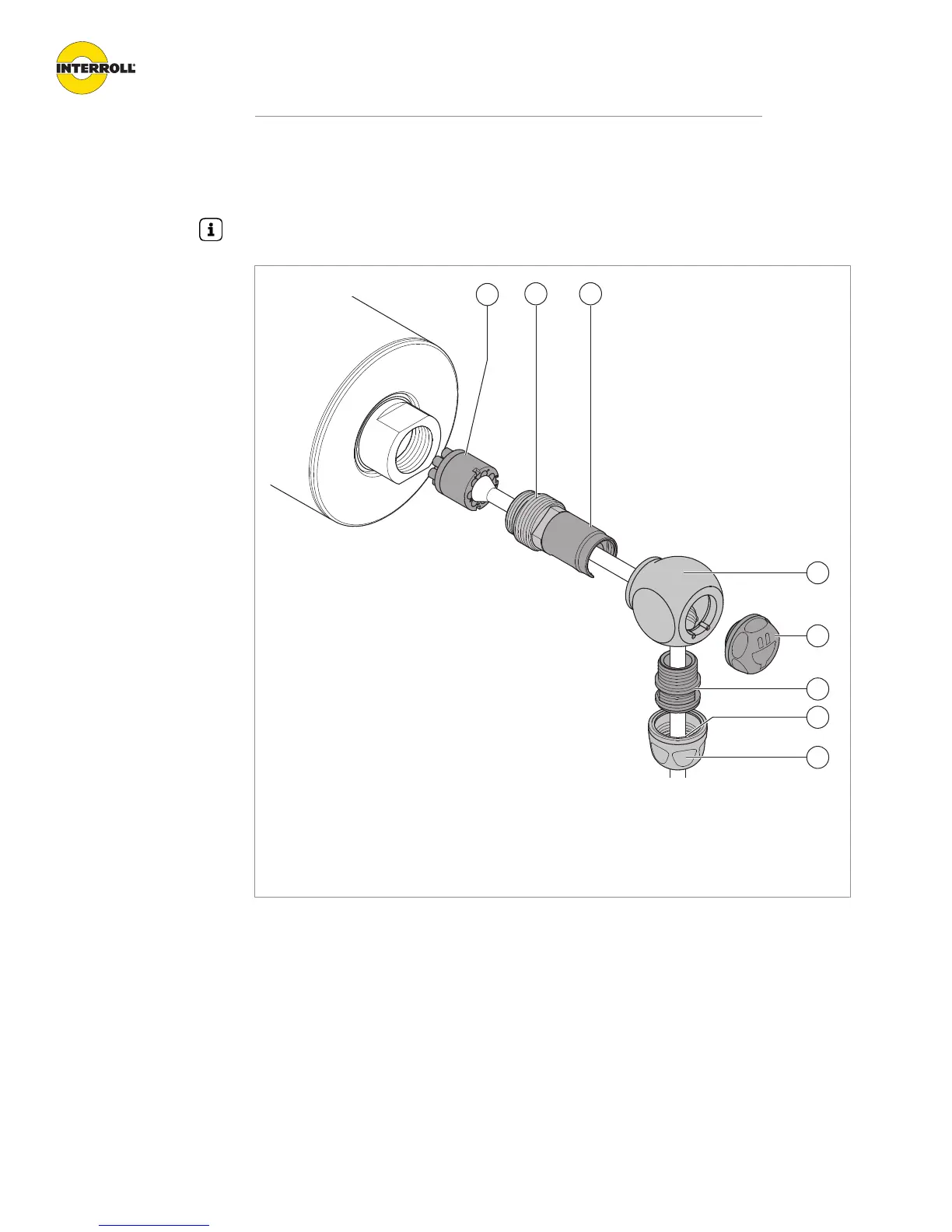

Disassembly for elbow connector
To differentiate the motor variant with plug from the motor variant without plug, the locking
screw is marked with a plug symbol.
4
6
7
8
5
32
1
1 Plug 5 Locking screw
2 Assembly nipple 6 Shell nipple
3 Assembly sleeve 7 Seal insert
4 Intermediate socket 8 Thrust screw
4 Completely unscrew the thrust screw (8) with the 20-mm open-end wrench.
4 Ensure that the blue seal insert (7) is pulled off the shell nipple (6).
4 Completely unscrew the shell nipple (6) from the intermediate socket with the 14-mm
open-end wrench.
4 Loosen the locking screw (5) and push the intermediate socket (4) off the assembly sleeve (3).
4 Completely unscrew the assembly nipple (2) from the shaft end with the 14-mm open-end
wrench. Ensure that the assembly sleeve (3) and the cable do not turn in the process.
4 Pull the plug (1) with the cable out of the permanently installed socket in the shaft.

Interroll DM series Specifications

General

Protection Class	IP54
Operating Mode	S1 (Continuous Duty)
Type	Brushless
Storage Temperature	-40°C to +70°C
Rated Voltage	24 V DC
