Interroll DM series User Manual

Interroll Drum motor DM series connecting cable
Removing the connecting cable
Version 2.0 (06/2018) en
Translation of original instruction manual
25
Disassembly for straight screw connection
To differentiate the motor variant with plug from the motor variant without plug, the thrust screw
is marked on three of the six flats.
3
2
4
5
6
32
1
4

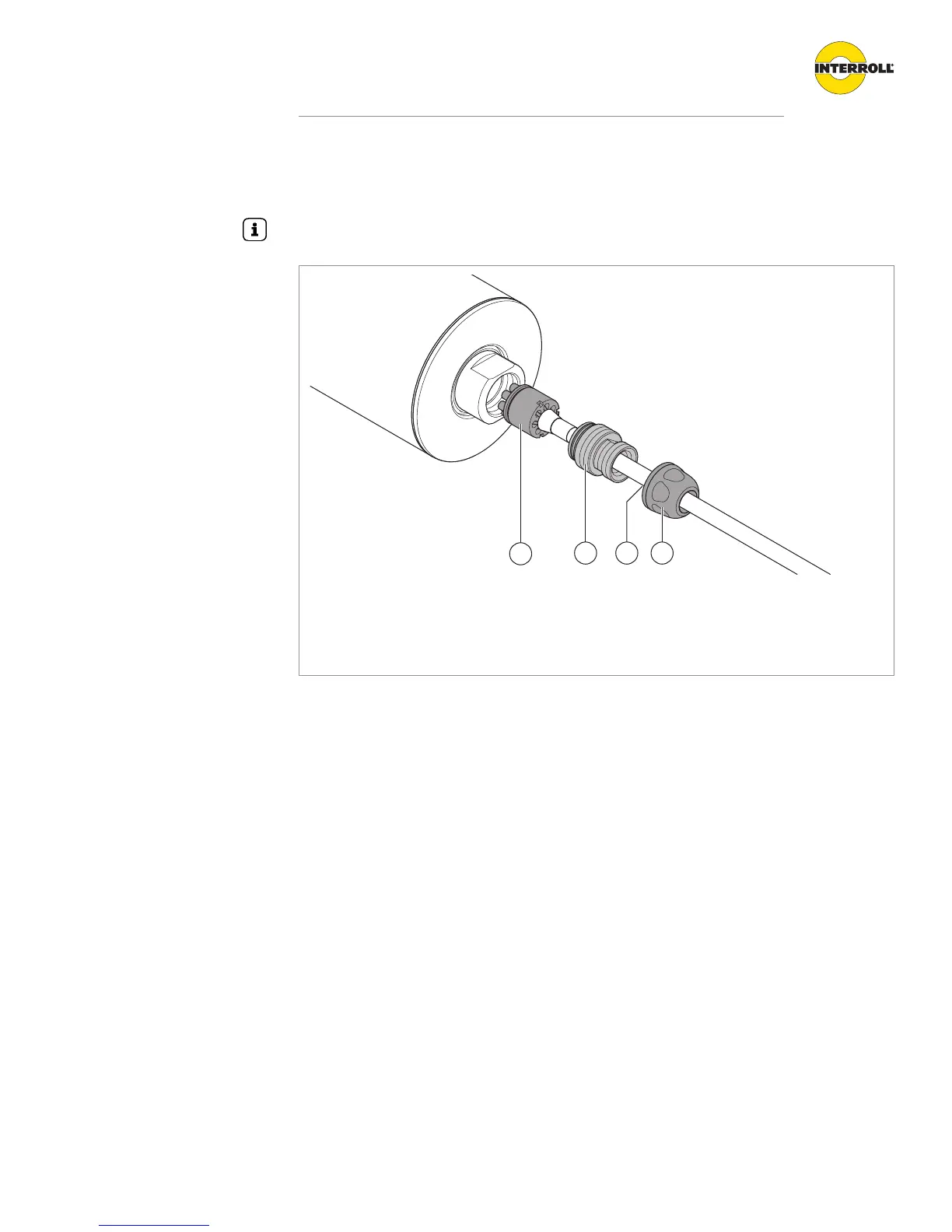

Removing the connecting cable
1 Plug 3 Seal insert
2 Shell nipple 4 Thrust screw
4 Completely unscrew the thrust screw (4) with the 20-mm open-end wrench.
4 Ensure that the blue seal insert (3) is pulled off the shell nipple (2).
4 Completely unscrew the shell nipple (2) from the shaft end with the 14-mm open-end wrench.
4 Pull the plug (1) with the cable out of the permanently installed socket in the shaft.

Interroll DM series Specifications

General

Protection Class	IP54
Operating Mode	S1 (Continuous Duty)
Type	Brushless
Storage Temperature	-40°C to +70°C
Rated Voltage	24 V DC
