Interroll Drum motor DM series connecting cable
Installing the connecting cable
22 Version 2.0 (06/2018) en
Translation of original instruction manual
Inserting threaded cable connection for straight screw connection

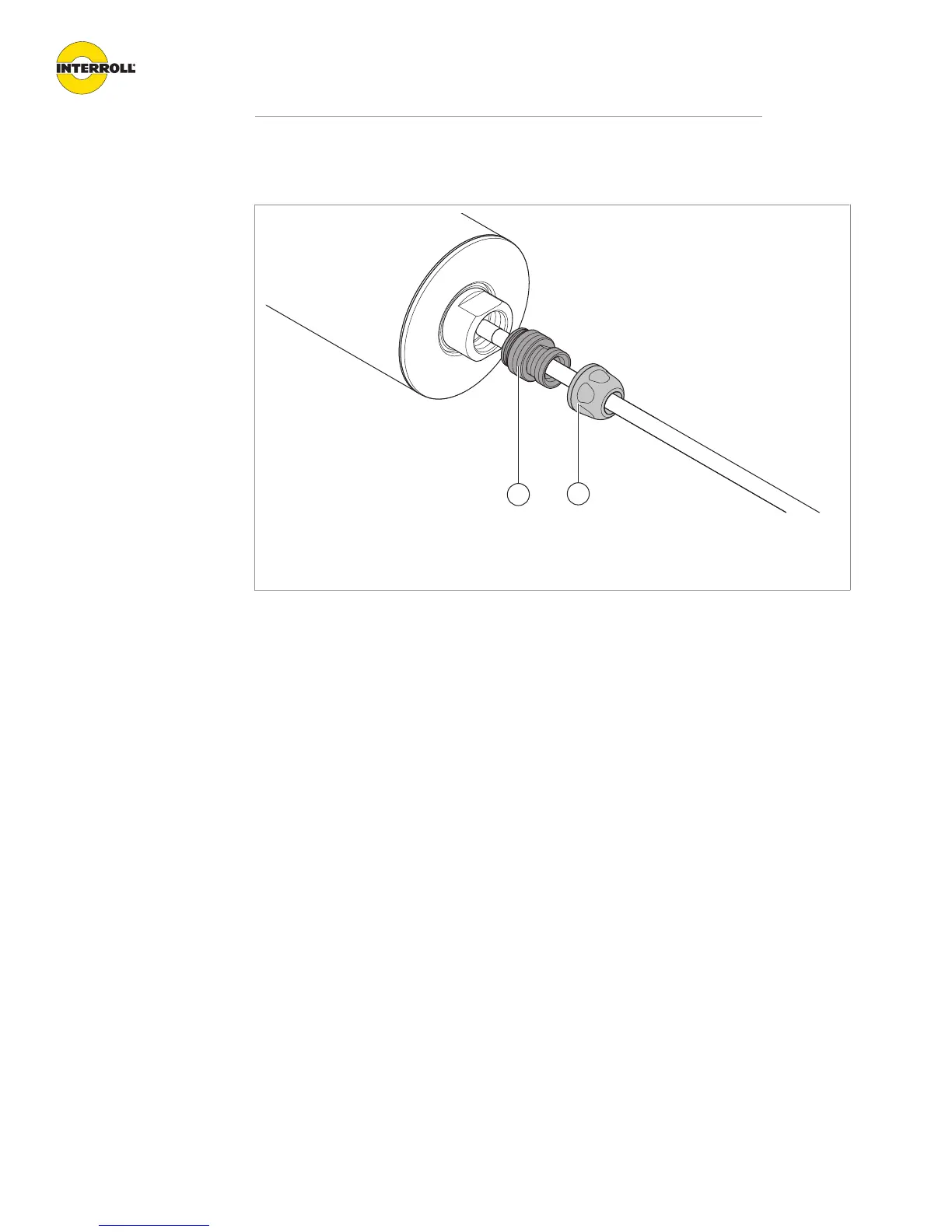

Shell nipple and thrust screw
1 Shell nipple 2 Thrust screw
4 Screw the shell nipple (1) of the screw connection into the shaft end and tighten it with the
14-mm open-end wrench.
4 Screw the thrust screw (2) of the screw connections tightly onto the thread of the shell nipple
using a 20-mm open-end wrench.
4 Route the connecting cable properly and place it in the switch cabinet.
4 For the remaining installation of the drum motor, observe the notices in the Interroll drum
motor DM series operating manual.
