Interroll DM series User Manual

Interroll Drum motor DM series connecting cable
Installing the connecting cable
Version 2.0 (06/2018) en
Translation of original instruction manual
23

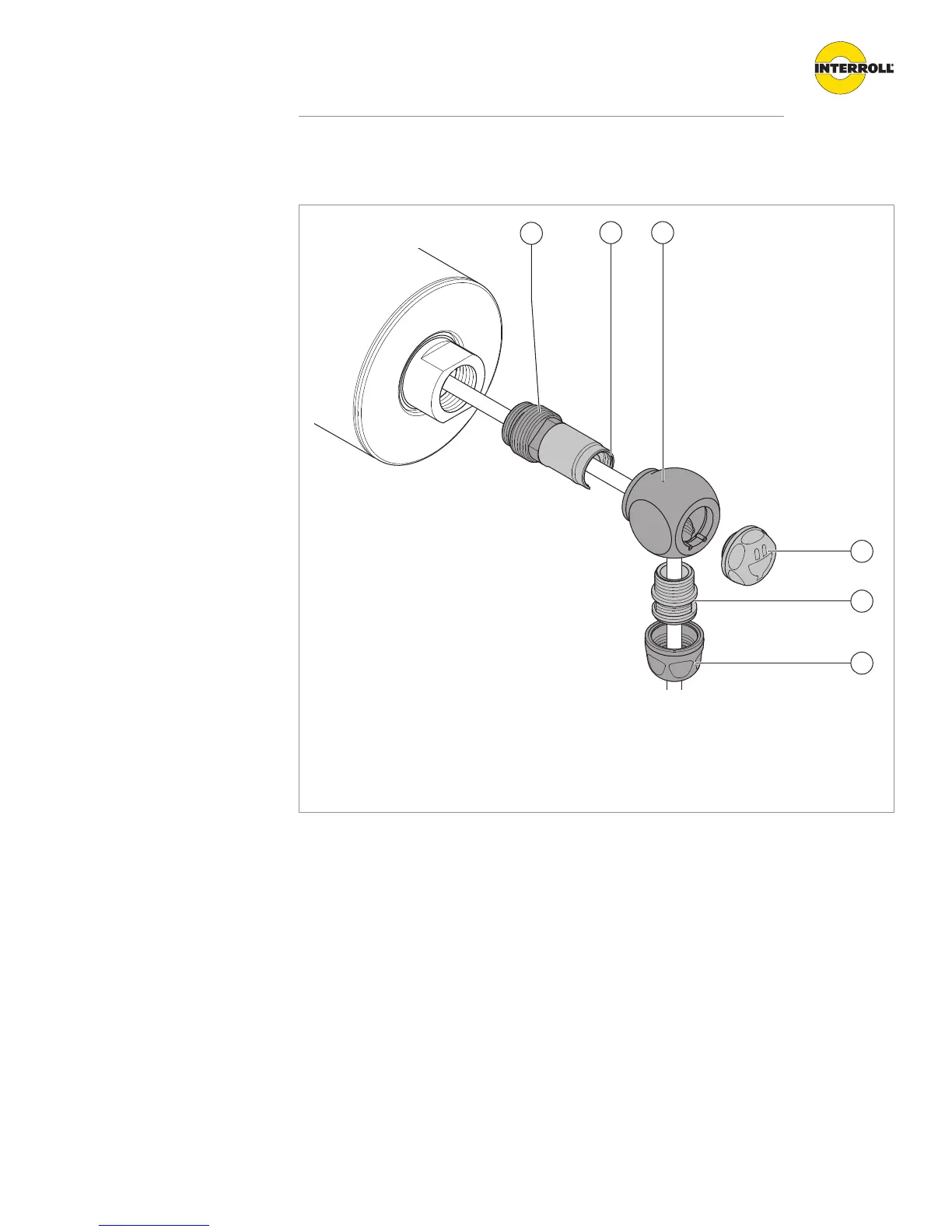

Inserting threaded cable connection for elbow connector
4
6
5
32
1
1 Assembly nipple 4 Locking screw
2 Assembly sleeve 5 Shell nipple
3 Intermediate socket 6 Thrust screw
4 Screw the assembly nipple (1) into the shaft end and tighten it with a 14-mm open-end
wrench. Ensure that the assembly sleeve (2) and the cable do not turn in the process.
4 Push the assembly sleeve (2) into the intermediate socket (3), align it and tighten it with the
locking screw (4).
4 Screw the shell nipple (5) of the screw connection into the intermediate socket and tighten it
with a 14-mm open-end wrench.
4 Screw the thrust screw (6) of the screw connection tightly onto the thread of the shell nipple
using a 20-mm open-end wrench.
4 Route the connecting cable properly and place it in the switch cabinet.
4 For the remaining installation of the drum motor, observe the notices in the Interroll drum
motor DM series operating manual.

Interroll DM series Specifications

General

Protection Class	IP54
Operating Mode	S1 (Continuous Duty)
Type	Brushless
Storage Temperature	-40°C to +70°C
Rated Voltage	24 V DC
