Interroll DM series User Manual

Interroll Drum motor DM series connecting cable
Installing the connecting cable
Version 2.0 (06/2018) en
Translation of original instruction manual
21
Preparing the assembly
The connecting cable is included with the drum motor. The complete screw connection and an
assembly tool are already attached to the connecting cable. Required tools:
• Open-end wrench, 14 mm WAF
• Open-end wrench, 20 mm WAF
4 Remove the dummy plug of the drum motor.
4 Open the packaging and unwind the connecting cable.
Inserting the plug into the shaft end
3
2
2
1

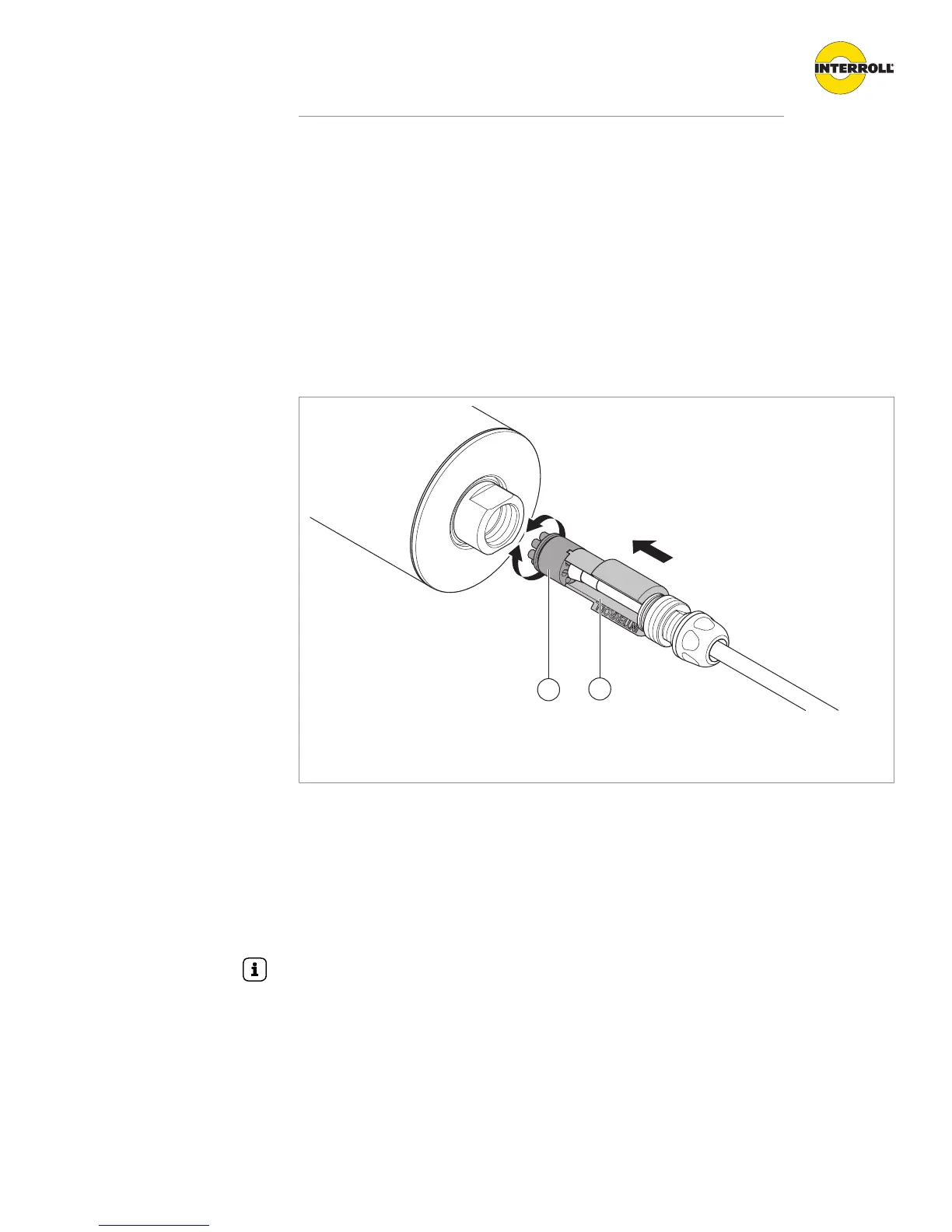

Connecting cable with plug connection and assembly tool
1 Plug 2 Assembly tool
4 Attach the connector (1) to the guide lugs of the assembly tool (2).
4 Insert the plug with the assembly tool into the open shaft end.
4 Turn the assembly tool using slight pressure until the plug engages in its correct position.
ð The correct position of the plug is reached when the tool rests on the shaft end.
4 Pull off the assembly tool and guide it onto the connecting cable behind the screw
connections.
The assembly tool can remain on the connecting cable and not be lost.

Interroll DM series Specifications

General

Protection Class	IP54
Operating Mode	S1 (Continuous Duty)
Type	Brushless
Storage Temperature	-40°C to +70°C
Rated Voltage	24 V DC
