OK/FAIL LED, one bicolor:
•
Steady green–The port module is operating normally.
•
Red–The port module has failed and is not operating normally.
•
Off–The port module is powered down.
LINK LED, single color, one per port:
•
Steady green–The link is active.
•
Off–No link.
TX/RX LED, single color, one per port:
•
Blinking Green–The port is receiving or transmitting data.
•
Off–No activity.
LEDs

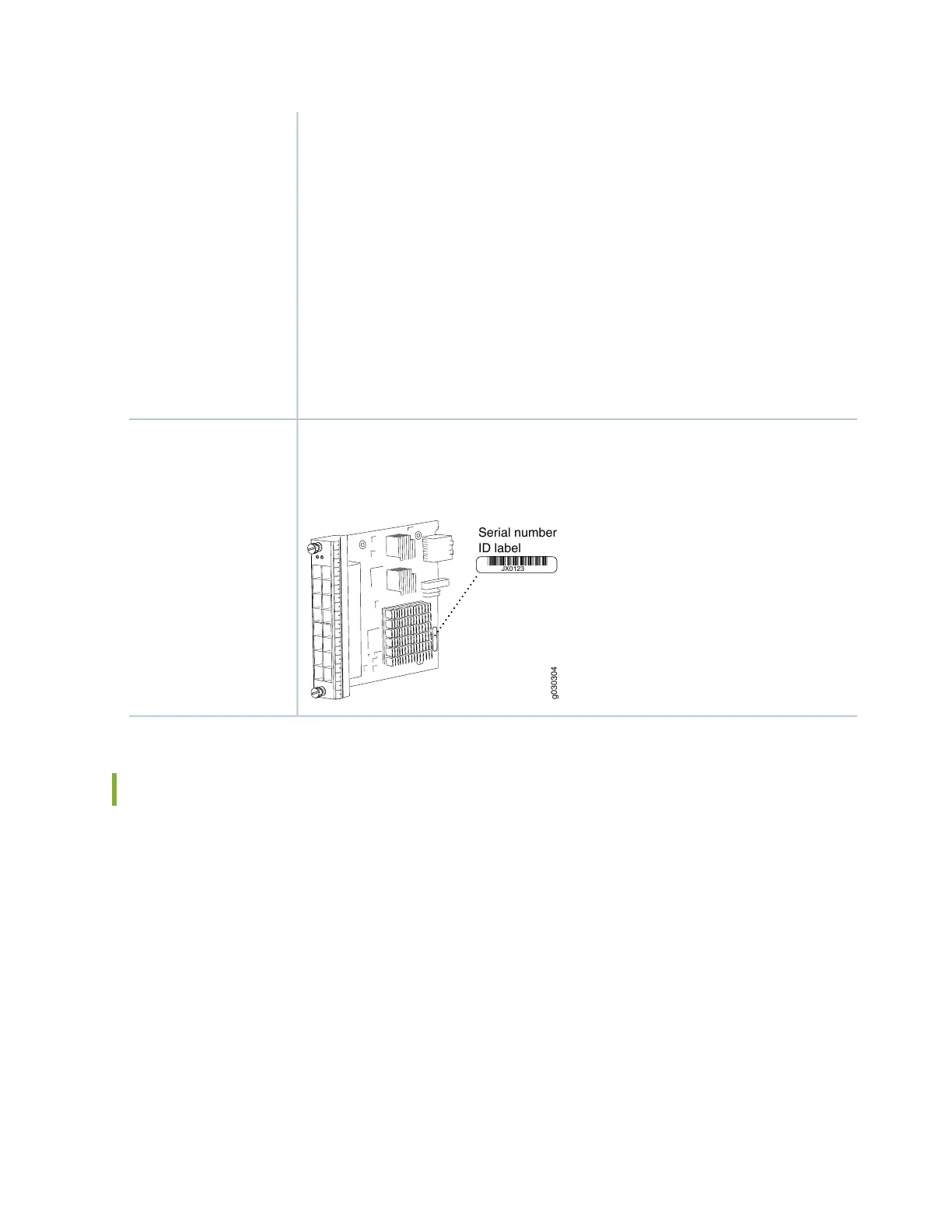

The serial number label is located as shown in Figure 64 on page 140.
Figure 64: Port Module SRX-IOC-16GE-SFP Serial Number Label
g030304
JX0123
Serial number
ID label
Serial Number Location
Flex I/O Card Port Module SRX-IOC-16GE-TX Specifications
You use port modules and Flex I/O Cards (Flex IOCs) to add different combinations of small form-factor
pluggable transceiver (SFP), 10-gigabit SFP transceiver (XFP), and copper ports to your services gateway
to suit the specific needs of your network. The SRX-IOC-16GE-TX port module (Figure 65 on page 141)
installs into a Flex IOC to add sixteen 10/100/1000 Ethernet RJ-45 copper ports.
