Reinstalling Cards After Installing the SRX5400 Services Gateway Without a Lift
To reinstall MPCs, SPCs, and the SCB, follow this procedure for each card (see Figure 80 on page 192):
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to the ESD point on the chassis.
2. Place the card on an antistatic mat or remove it from its electrostatic bag.
3. Identify the slot on the services gateway where it will be installed.
4. Verify that each fiber-optic has a rubber safety cap covering the transceiver. If it does not, cover the
transceiver with a safety cap.
5. Orient the card so that the faceplate faces you.
6. Lift the card into place and carefully align the sides of the card with the guides inside the card cage.
7. Slide the card all the way into the card cage until you feel resistance.
8. Grasp both ejector handles and rotate them clockwise simultaneously until the card is fully seated.

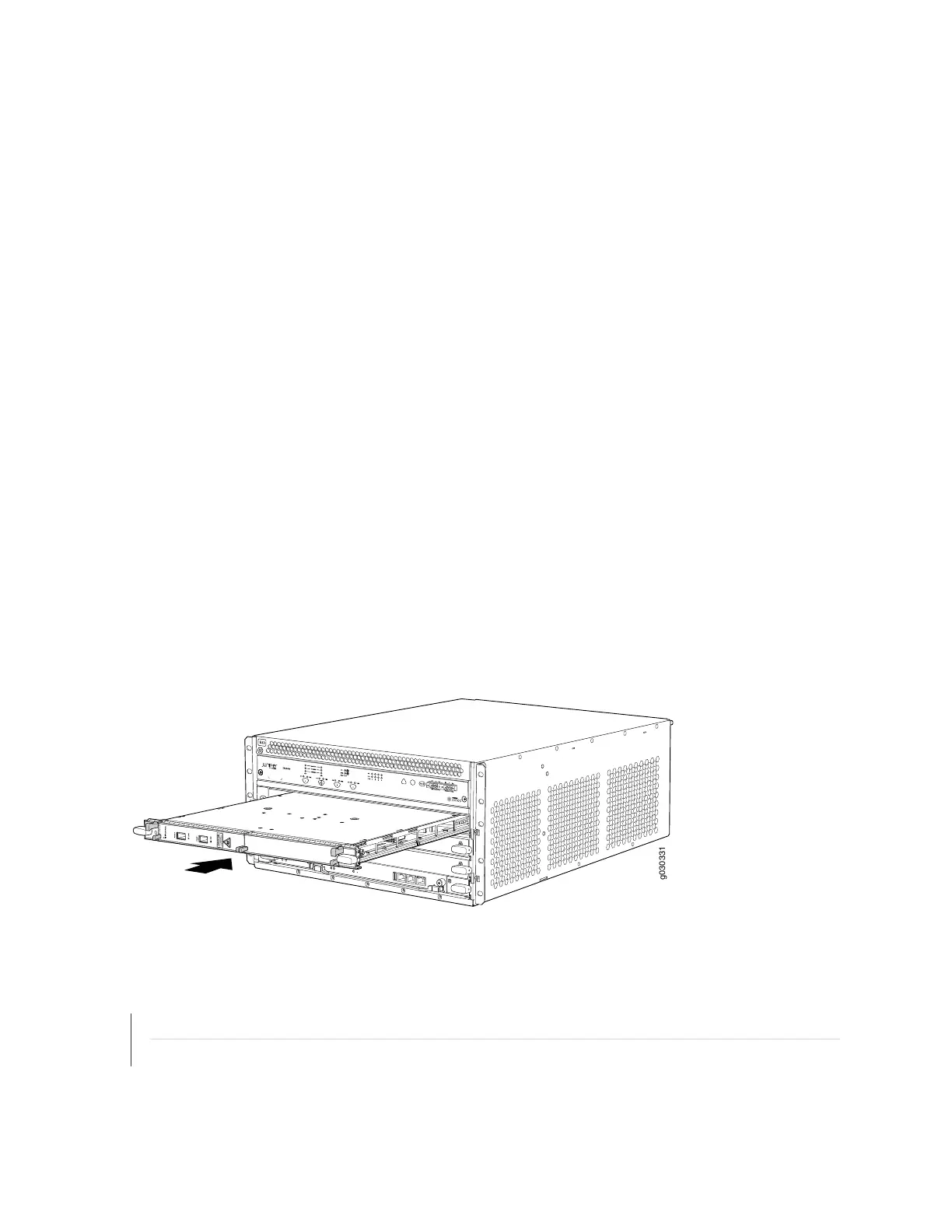

Figure 80: Installing an MPC or SPC
g030331
RELATED DOCUMENTATION
General Safety Guidelines and Warnings | 379
Chassis and Component Lifting Guidelines | 389
