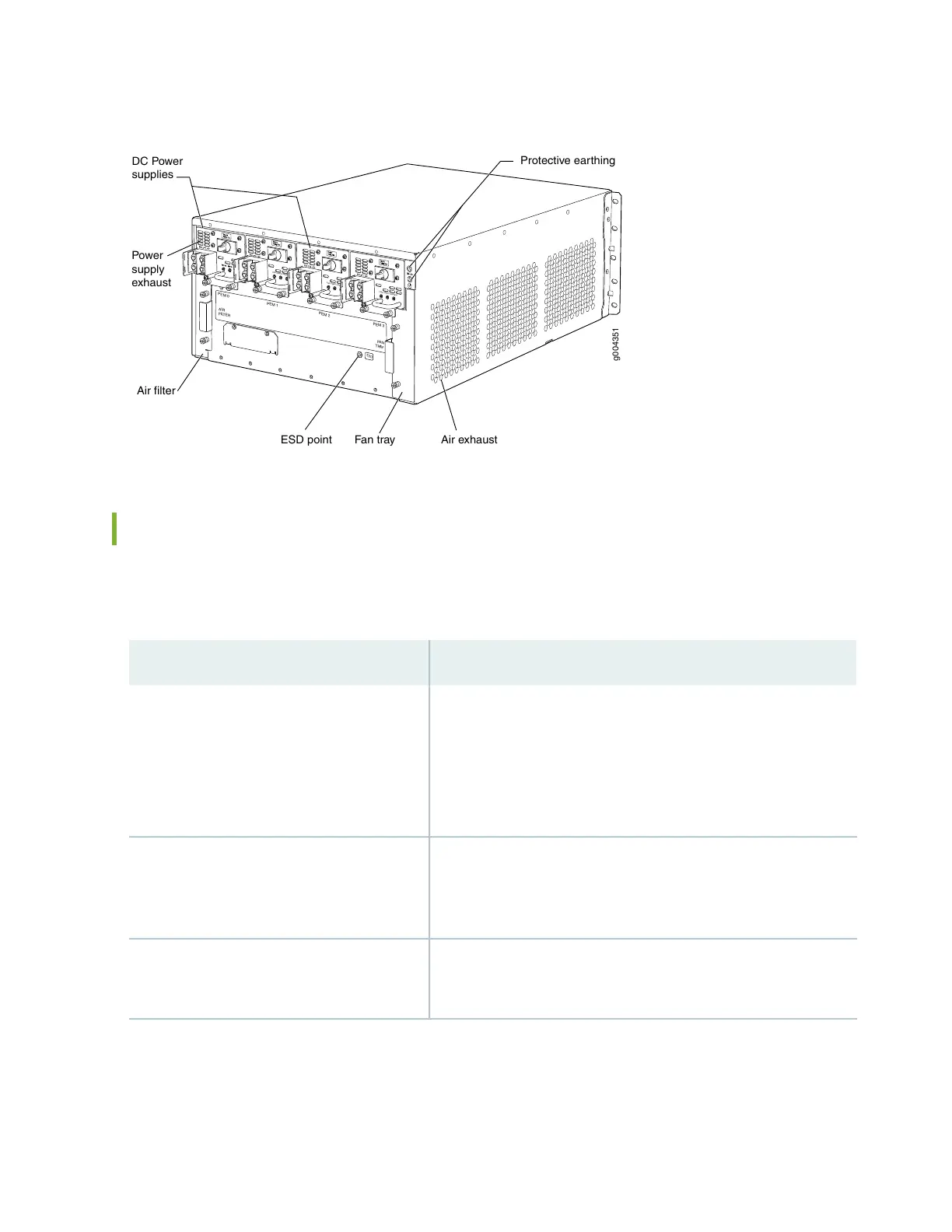

Figure 3: Rear View of a Fully Configured DC-Powered Services Gateway Chassis
PEM 3
PEM 2
PEM 1
PEM 0
AIR
FI
L
TER
FAN
TRAY
g004351
DC Power
supplies
Fan tray
Air filter
Power
supply
exhaust
Protective earthing
Air exhaustESD point
ESD
INPUTOK
PWR OK
BKR ON
INPUTOK
PWR OK
BKR ON
INPUTOK
PWR OK
BKR ON
INPUTOK
SRX5400 Services Gateway Physical Specifications
Table 4 on page 31 summarizes the physical specifications for the services gateway chassis.
Table 4: Physical Specifications
ValueDescription
8.7 in. (22.1 cm) high
17.45 in. (44.3 cm) wide
24.5 in. (62.2 cm) deep (from front-mounting bracket to chassis rear)
Total depth (including cable management system): 27.75 in. (70.5 cm)
Chassis dimensions
Chassis with midplane, fan tray, air filter, and cable management
system: 52 lb (23.6 kg)
Maximum configuration: 128 lb (58.1 kg)
Services gateway weight
SRX5K-RE-13-20: 2.4 lb (1.1 kg)
SRX5K-RE-1800X4: 2.4 lb (1.1 kg)
Routing Engine weight
31
