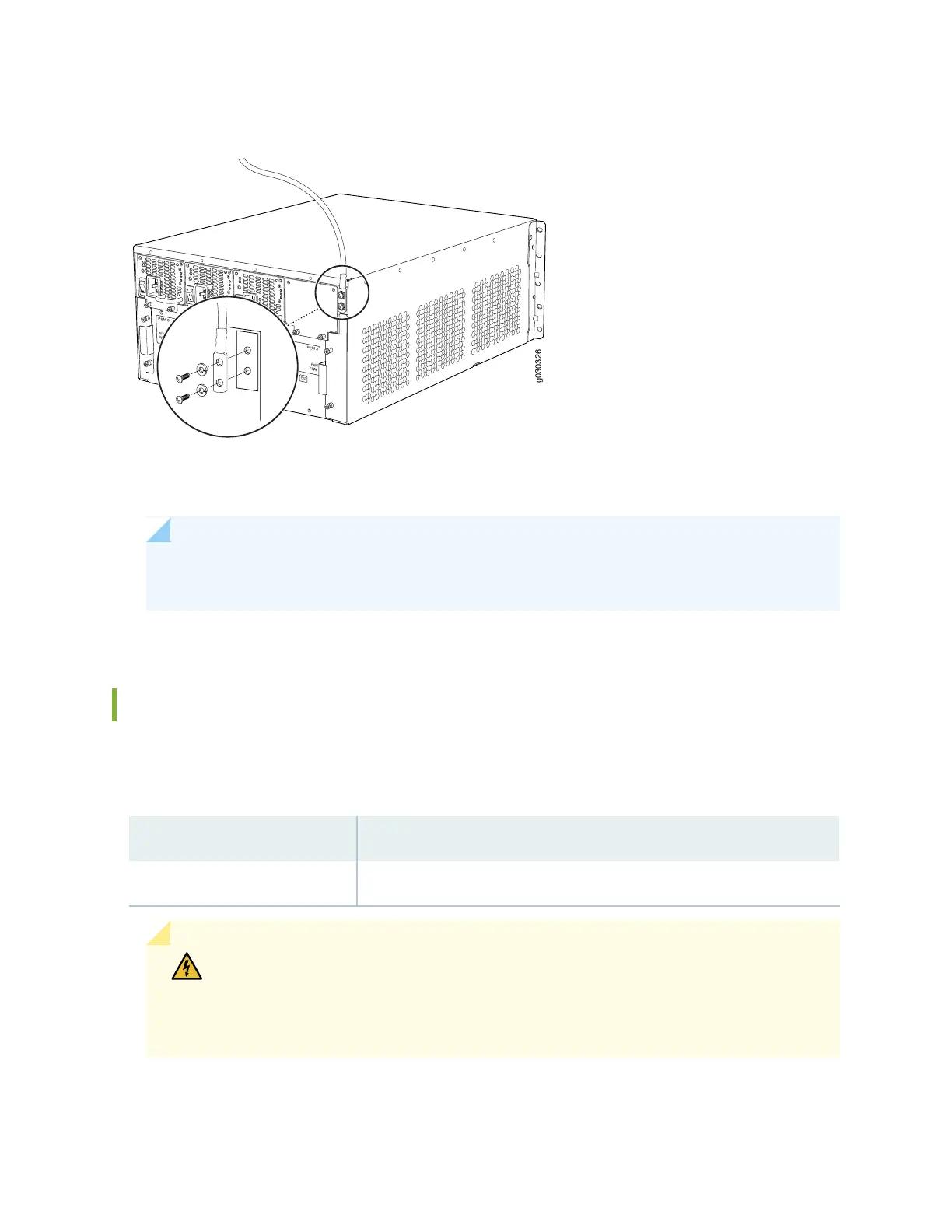

Figure 14: SRX5400 Services Gateway Grounding Point
PEM 3
PEM 2
PEM 1
PEM 0
AIR
FILTER
FAN
TRAY
g030326
ESD
To ground the services gateway, you must connect a grounding cable to earth ground and then attach it
to the chassis grounding point using the two screws provided.
NOTE: Additional grounding is provided to an AC-powered services gateway when you plug its
power supplies into grounded AC power receptacles.
SRX5400 Services Gateway Grounding-Cable Specification
The grounding cable that you provide must meet the specifications in Table 23 on page 57.
Table 23: Grounding Cable Specifications
Quantity and SpecificationCable Type
One 6-AWG (13.3 mm
2
), minimum 60°C wire, or as required by the local codeGrounding
WARNING: To meet safety and electromagnetic interference (EMI) requirements and
to ensure proper operation, you must properly ground the services gateway chassis
before connecting power. See “Grounding the SRX5400 Services Gateway” on page 199
for instructions.
57
