Juniper SRX5400 - Routing Engine SRX5 K-RE-1800 X4 Overview

The serial number label is located on the right side of the top of the Routing Engine as shown
in Figure 25 on page 74

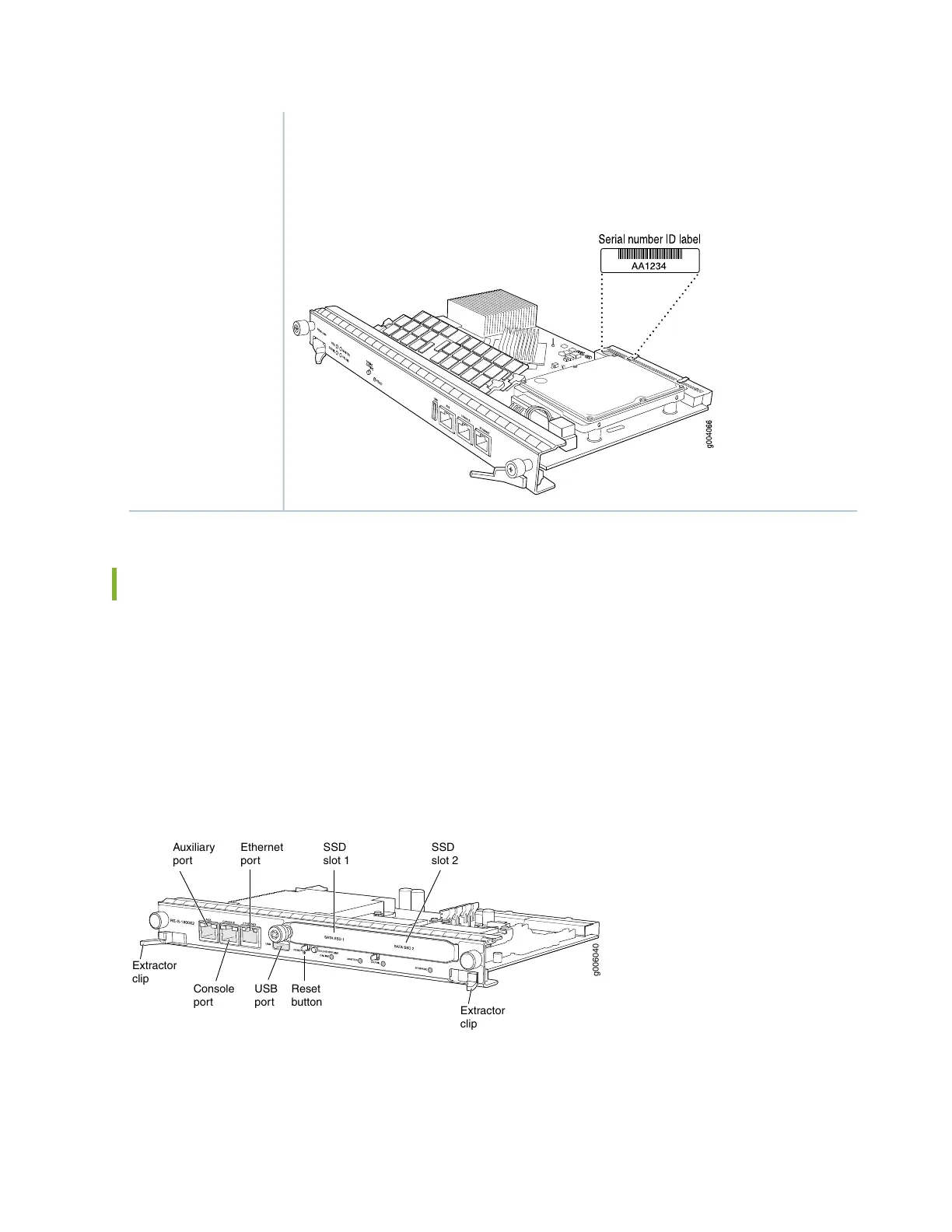

Figure 25: SRX5K-RE-13-20 Serial Number Label
Serial Number
Location
Routing Engine SRX5K-RE-1800X4 Overview
The enhanced Routing Engine is an Intel-based PC platform that runs Junos OS. Software processes that
run on the Routing Engine maintain the routing tables, manage the routing protocols used on the device,
control the device interfaces, control some chassis components, and provide the interface for system
management and user access to the device.The Routing Engine must be installed directly into the
SRX5K-SCBE. A USB port on the Routing Engine accepts a USB memory device that allows you to load
Junos OS. Figure 26 on page 74 shows the Routing Engine.
Figure 26: SRX5K-RE-1800X4 Routing Engine
g006040
USB
port
Reset
button
Extractor
clip
Extractor
clip
Console
port
Auxiliary
port
Ethernet
port
SSD
slot 2
SSD
slot 1
Three ports located on the Routing Engine connect to one or more external devices on which system
administrators can issue Junos OS CLI commands to manage the services gateway.
74
