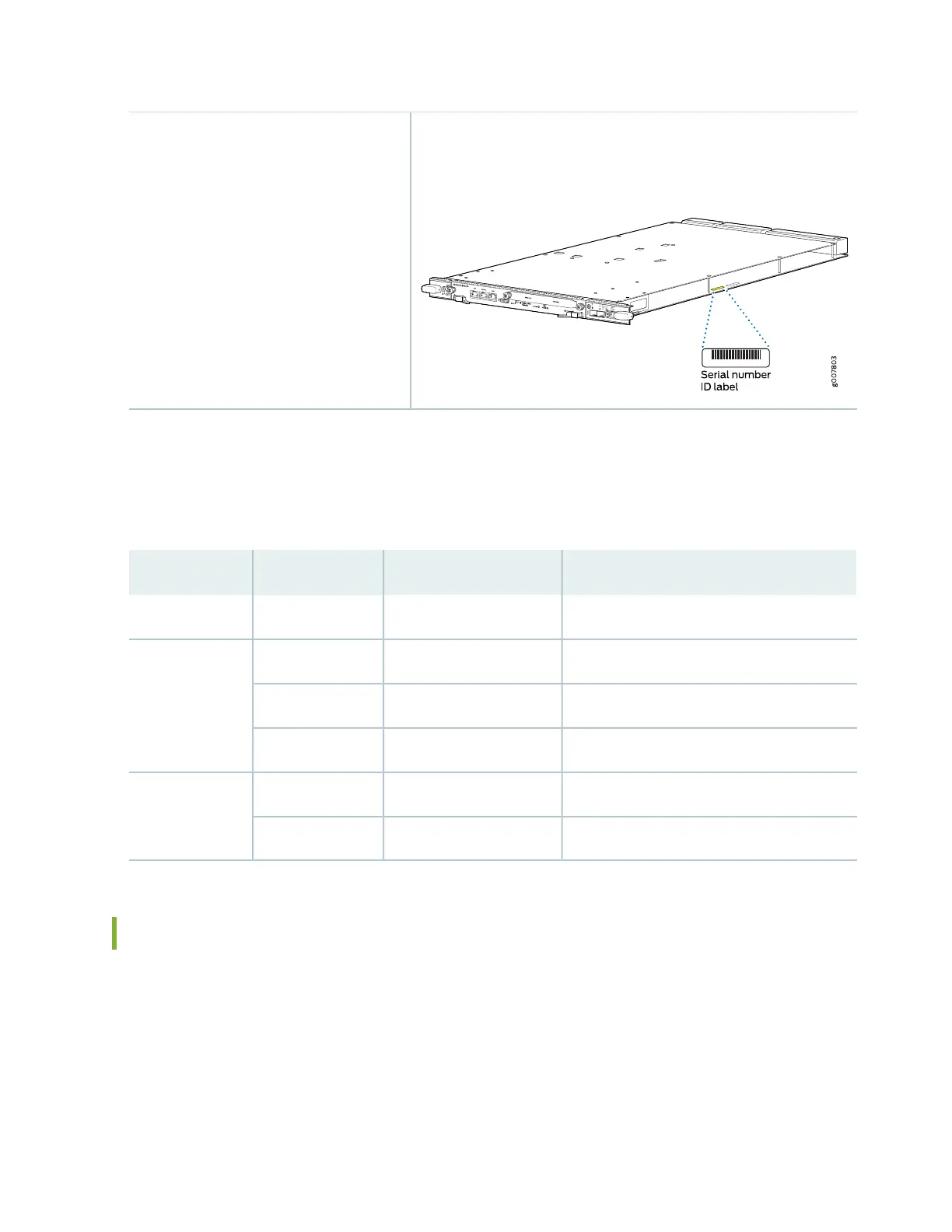

The serial number label is located as shown in Figure 22 on page 70.
Figure 22: SRX5K-SCB3 Serial Number Label
XGE
LINK
LINK
EXT
CLK
BITS
GPS
UTI
Serial number location
SRX5K-SCB3 LEDs
Table 25 on page 70 describes the SCB3 LEDs and their states.
Table 25: SRX5K-SCB3 LEDs
DescriptionStateColorLabel
Fabric is in active mode.On steadilyGreenFABRIC ACTIVE
SCB3 is online.On steadilyGreenOK/FAIL
SCB3 has failed.On steadilyRed
SCB3 is offline.Off–
Port is enabled and link is established.On steadilyGreenLINK
Port is disabled or no link is established.Off–
Routing Engine SRX5K-RE-13-20 Overview
The Routing Engine is an Intel-based PC platform that runs Junos OS. Software processes that run on the
Routing Engine maintain the routing tables, manage the routing protocols used on the device, control the
device interfaces, control some chassis components, and provide the interface for system management
and user access to the device (see Figure 23 on page 71).
A USB port on the Routing Engine accepts a USB memory card that allows you to load Junos OS.
70
