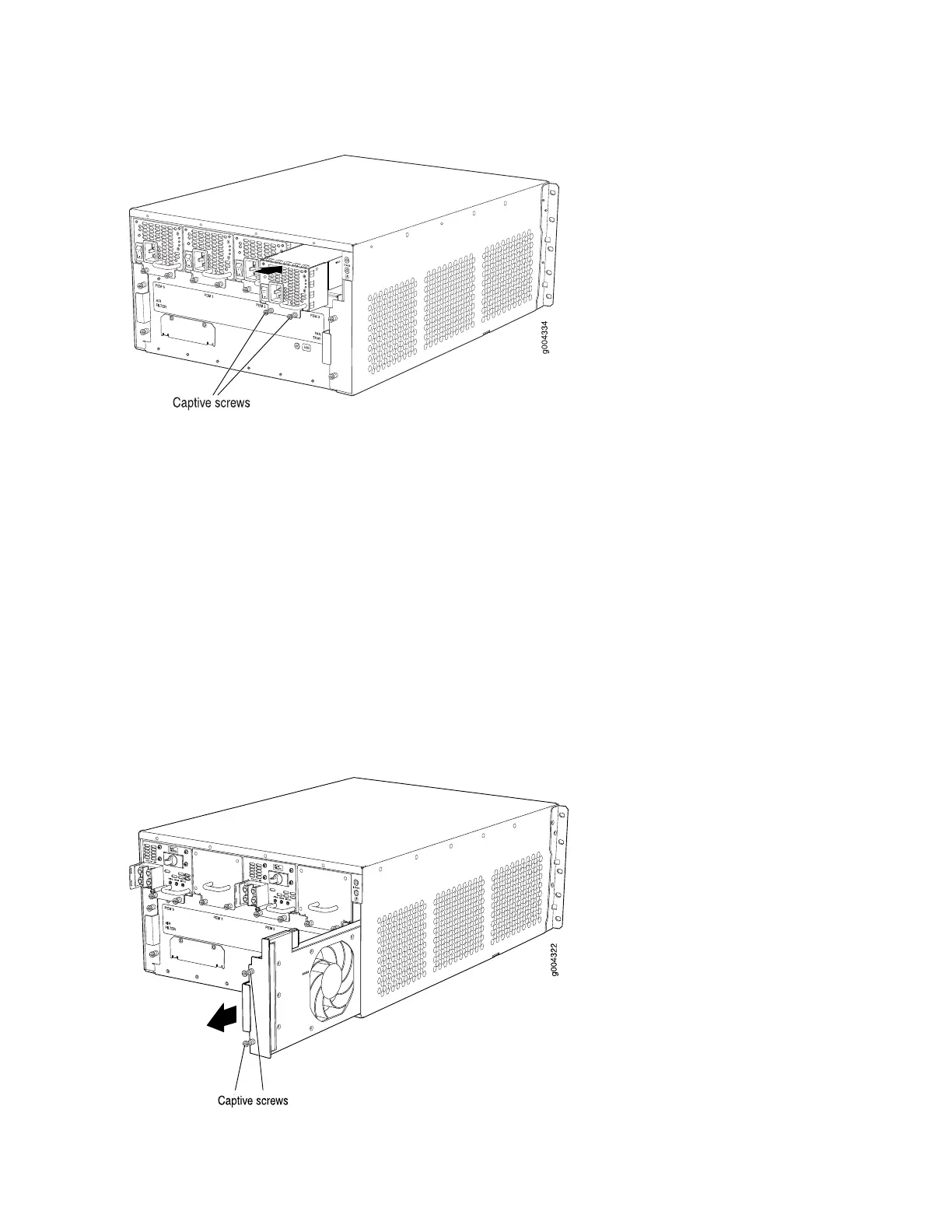

Figure 78: Reinstalling a Power Supply
Reinstalling the Fan Tray After Installing the SRX5400 Services Gateway Without a Lift
To reinstall the fan tray (see Figure 79 on page 191):
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to the ESD point on the chassis.
2. Grasp the fan tray on each side and insert it straight into the chassis. Note the correct orientation by
the "this side up" label on the top surface of the fan tray.
3. Tighten the captive screws on the fan tray faceplate to secure it in the chassis.
Figure 79: Reinstalling the Fan Tray
191
