Off–The chassis cluster control port is disabled.
•
The serial number label is located as shown in Figure 35 on page 99.

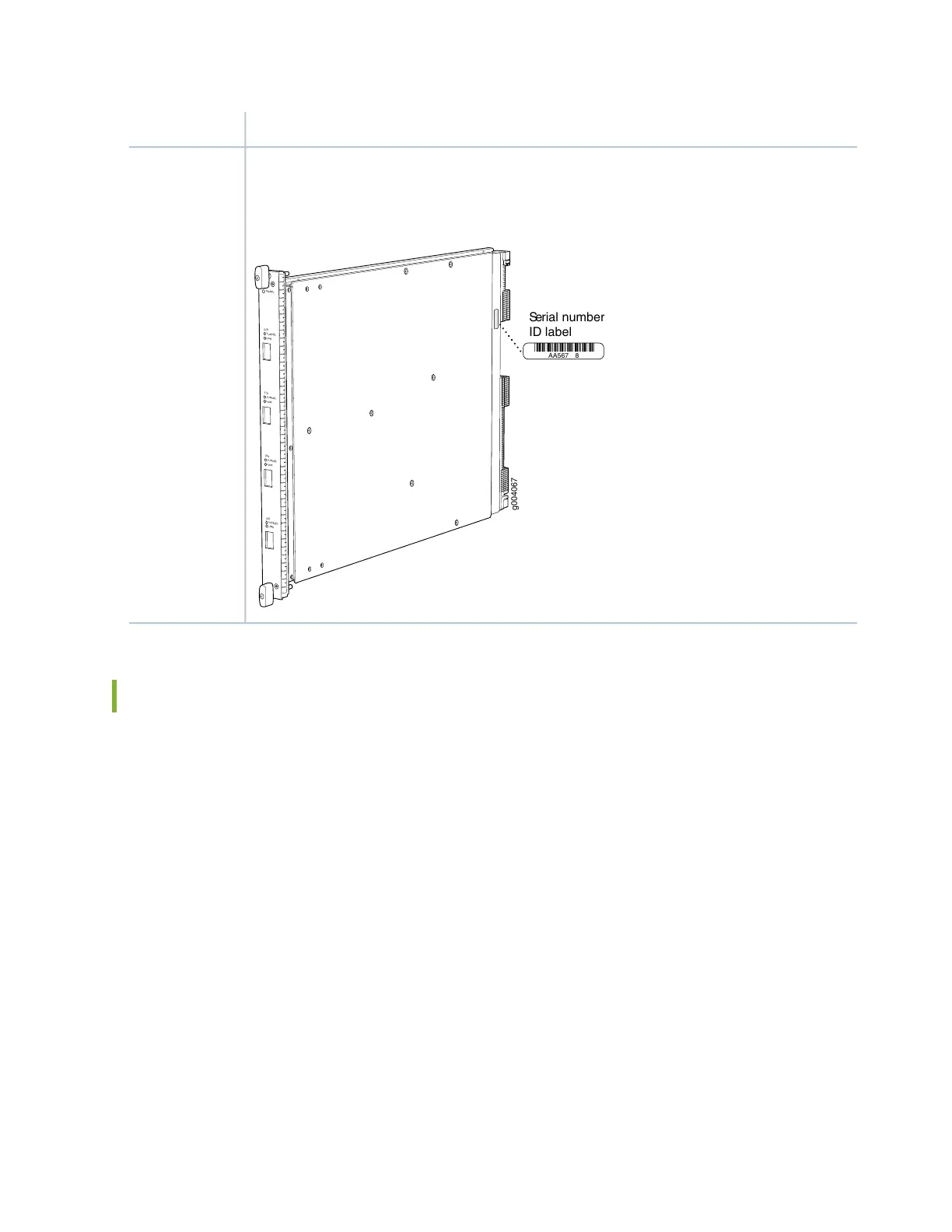

Figure 35: Serial Number Label (IOC Shown, Other Cards Similar)
OK/
F
AIL
TUNNEL
LINK
1/0
TUNNEL
LINK
0/0
TUNNEL
LINK
2/0
TUNNEL
LINK
3/0
g004067
AA567 8
Serial number
ID label
Serial Number
Location
Services Processing Card SRX5K-SPC3 Specifications
The SRX5K-SPC3 Services Processing Card (SPC) contains two Services Processing Units (SPUs) with
128GB of memory per SPU, that provide the processing power to run integrated services such as firewall,
IPsec, and IDP (see Figure 36 on page 100). All traffic traversing the services gateway is passed to an SPU
to have services processing applied to it. Traffic is intelligently distributed by I/O cards (IOCs) to SPUs for
services processing.
The services gateway must have at least one SPC installed. You can install additional SPCs to increase
services processing capacity.
SPCs cannot be installed in slots that are reserved for Switch Control Boards (SCBs) or in slot 11 on the
SRX5800. If a slot is not occupied by a card, you must install a blank panel to shield the empty slot and to
allow cooling air to circulate properly through the device.
99
