Table 24: SRX5K-SCBE LEDs (continued)
DescriptionStateColorLabel
SRX5K-SCBE is online.On steadilyGreenOK/FAIL
SRX5K-SCBE has failed.On steadilyRed
SRX5K-SCBE is offline.OffNone
Switch Control Board SRX5K-SCB3 Overview
The SRX5K-SCB3 (SCB3) caters to high-end security markets requiring support for higher capacity traffic,
greater interface density (slot and capacity scale), and improved services. The SCB3 is supported on
SRX5400, SRX5600, and SRX5800 Services Gateways.
The SCB3 supports the standard midplane and the enhanced midplane.
Some key attributes of the SCB3 are:
•
With the existing midplane and fabric link speed of 8.36 Gbps, supports a bandwidth of 205 Gbps per
slot with redundant fabric support and 308 Gbps per slot without redundancy.
•
With the enhanced midplane and fabric link speed of 10.2 Gbps, supports a bandwidth of 249 Gbps per
slot with redundant fabric support and 374 Gbps per slot without redundancy with the enhanced midplane
•
Improved fabric performance with the next-generation fabric (XF2) chip.
•
Full performance with fabric redundancy for higher-capacity line cards.
•
Support for MPC line cards such as SRX5K-MPC (IOC2) and IOC3 (SRX5K-MPC3-40G10G or
SRX5K-MPC3-100G10G) only.
•
Two 10-Gigabit Ethernet SFP+ ports (These ports are disabled and reserved for future use).
The Routing Engine installs directly into a slot on the SCB3, as shown in Figure 21 on page 68.

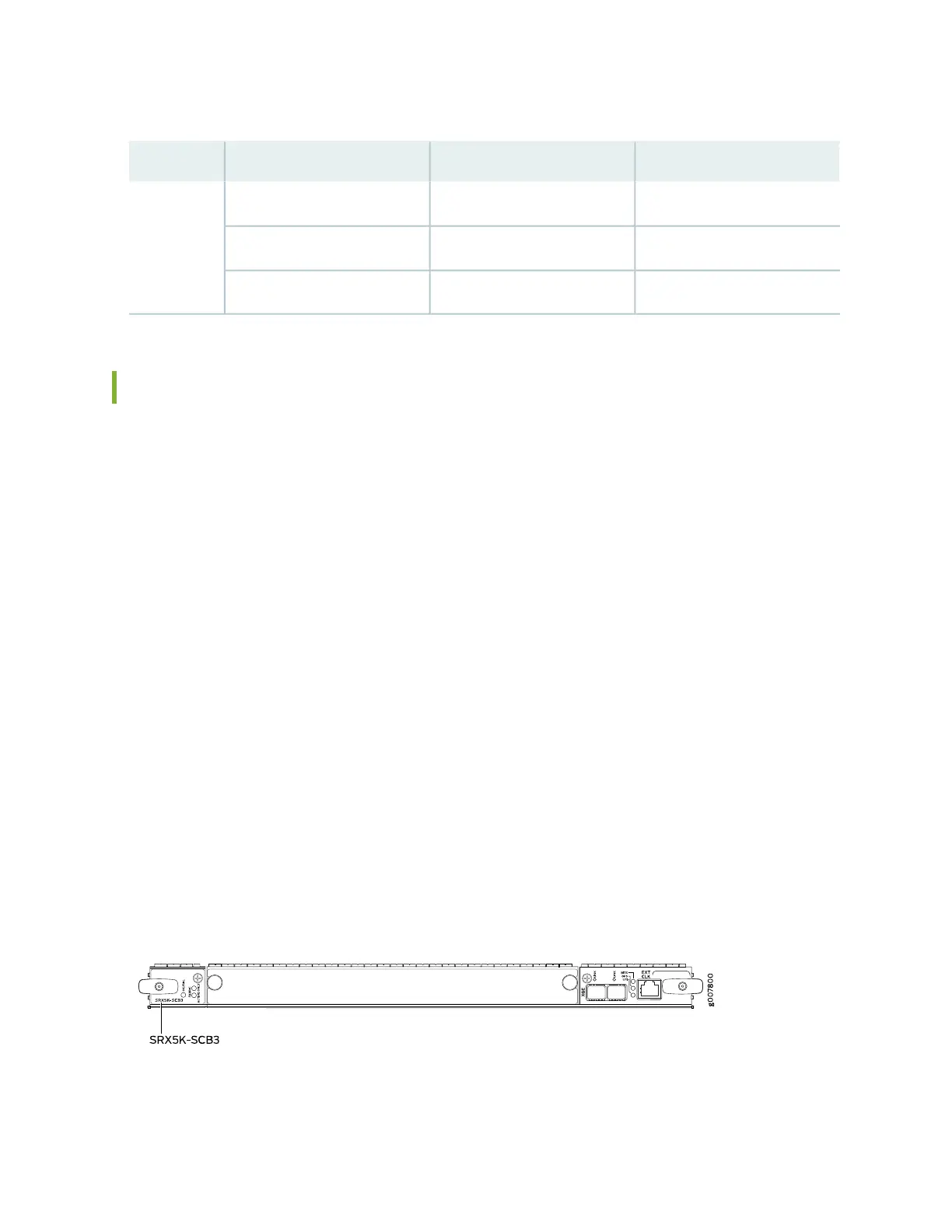

Figure 21: SRX5K-SCB3
68
