SRX5400 Services Gateway AC Power Supply
Each AC power supply consists of one AC appliance inlet, an AC switch, a fan, and LEDs to monitor the
status of the power supply. Figure 10 on page 46 shows the power supply. Each inlet requires a dedicated
AC power feed and a dedicated 16 A @ 100 VAC or 16 A @ 200 VAC circuit breaker, or as required by
local code.

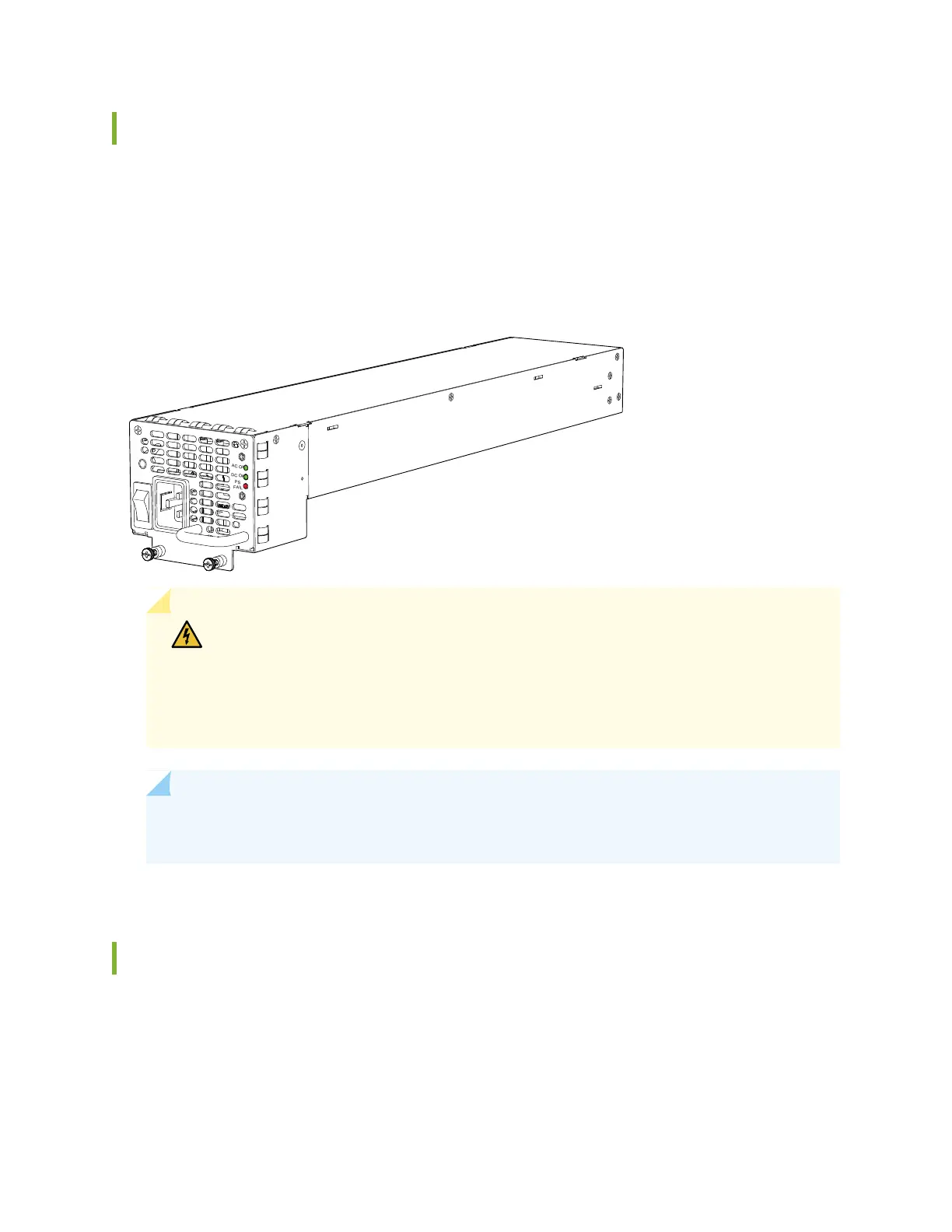

Figure 10: AC Power Supply
AC OK
DC OK
PS
FAIL
WARNING: The services gateway is pluggable type A equipment installed in a
restricted-access location. It has a separate protective earthing terminal (sized for UNC
1/4-20 ground lugs) provided on the chassis in addition to the grounding pin of the
power supply cord. This separate protective earthing terminal must be permanently
connected to earth.
NOTE: The SRX5400 Services Gateway and SRX5600 Services Gateway use the same power
supply model.
SRX5400 Services Gateway AC Power Supply Specifications
Table 15 on page 47 lists the AC power supply electrical specifications.
Table 16 on page 47 lists the AC power system electrical specifications.
